INA2126 - MicroPower Instrumentation Amplifier

This page provides the datasheet information for the INA2126, a member of the INA126 MicroPower Instrumentation Amplifier family.

Datasheet Summary

Description

The INA126 and INA2126 (INAx126) are precision instrumentation amplifiers for accurate, low-noise, differential-signal acquisition.

The two-op-amp design provides excellent performance with low quiescent current (175 μA/channel).

Features

  • Low quiescent current: 175 μA/channel.
  • Wide supply range: ±1.35 V to ±18 V.
  • Low offset voltage: 250-μV maximum.
  • Low offset drift: 3-μV/°C maximum.
  • Low noise: 35 nV/√Hz.
  • Low input bias current: 25-nA maximum.
  • Temperature range:.
  • 40°C to +85°C.
  • Multiple package options:.
  • Single channel:.
  • INA126P/PA 8-pin PDIP (P).
  • INA126U/UA 8-pin SOIC (D).
  • INA126E/EA 8-pin VSSOP (DGK).
  • Dua.

📥 Download Datasheet

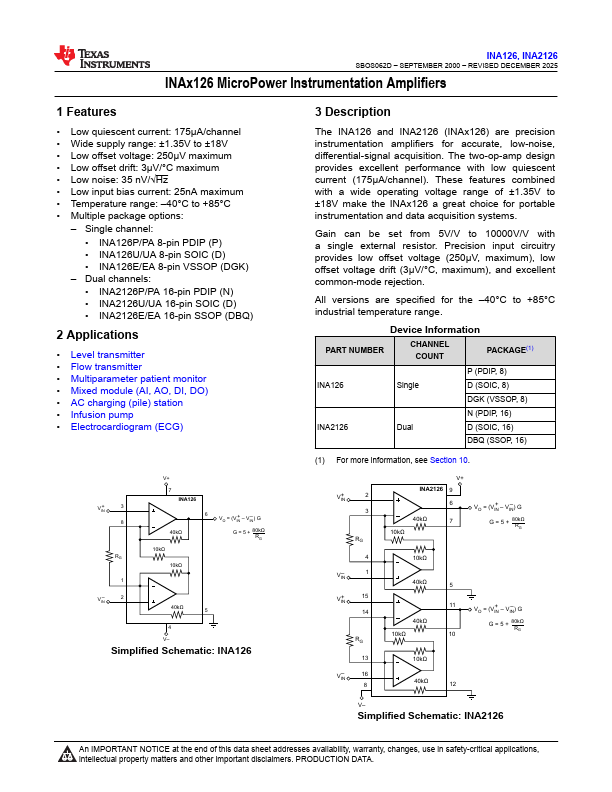

Datasheet preview – INA2126

Datasheet Details

Part number INA2126
Manufacturer Texas Instruments
File Size 2.02 MB
Description MicroPower Instrumentation Amplifier
Datasheet download datasheet INA2126 Datasheet

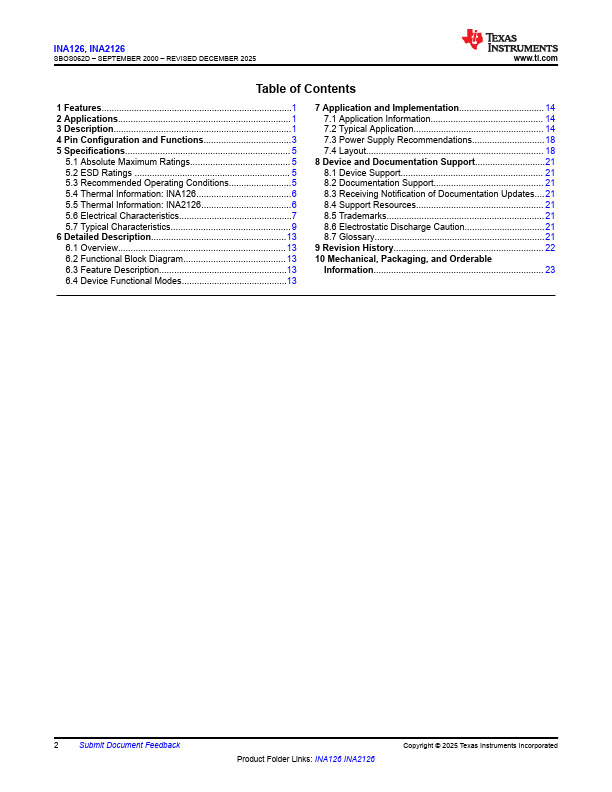

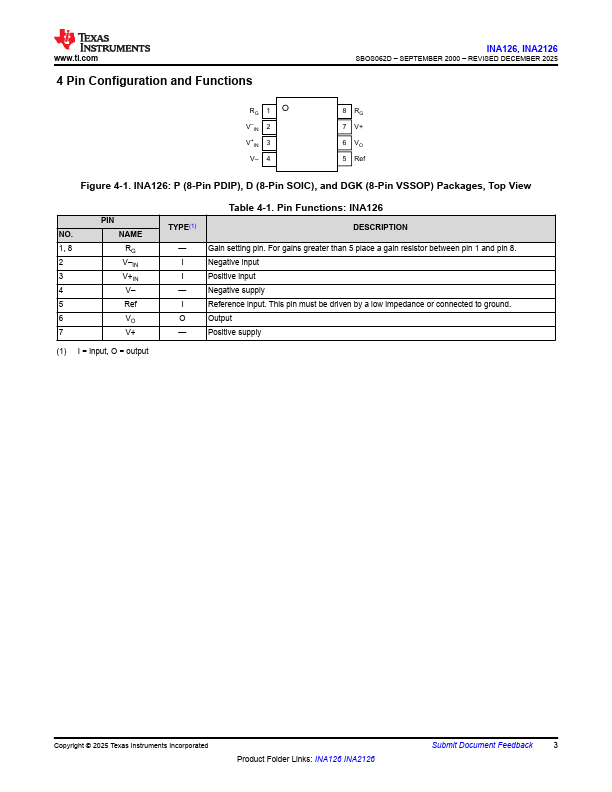

Additional preview pages of the INA2126 datasheet.

📁 Similar Datasheet

  • INA2126 - MicroPOWER INSTRUMENTATION AMPLIFIER (Burr-Brown Corporation)
  • INA2128 - INSTRUMENTATION AMPLIFIER (Burr-Brown Corporation)
  • INA2132 - DIFFERENCE AMPLIFIER (Burr-Brown Corporation)
  • INA2133 - DIFFERENCE AMPLIFIERS (Burr-Brown Corporation)
  • INA2134 - AUDIO DIFFERENTIAL LINE RECEIVERS (Burr-Brown Corporation)
  • INA2137 - AUDIO DIFFERENTIAL LINE RECEIVERS (Burr-Brown Corporation)
  • INA2141 - INSTRUMENTATION AMPLIFIER (Burr-Brown Corporation)
  • INA2143 - DIFFERENCE AMPLIFIERS (Burr-Brown Corporation)
  • INA200 - (INA200 - INA202) High-Side Measurement Current-Shunt Monitor (Burr-Brown)
  • INA201 - (INA200 - INA202) High-Side Measurement Current-Shunt Monitor (Burr-Brown)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text
INA126, INA2126 SBOS062C – SEPTEMBER 2000 – REVISED JANUARY 2022 INAx126 MicroPower Instrumentation Amplifiers 1 Features • Low quiescent current: 175 μA/channel • Wide supply range: ±1.
