ADS7950 - Serial Interface ADC

Description

The ADS79xx is a 12-, 10-, 8-bit pin compatible multichannel analog-to-digital converter family.

The device comparison table shows all twelve devices from this product family.

The devices include a capacitor based SAR A/D converter with inherent sample and hold.

Features

  • 1 1-MHz Sample Rate Serial Devices.
  • Product Family of 12-, 10-, 8-Bit Resolution.
  • Zero Latency.
  • 20-MHz Serial Interface.
  • Analog Supply Range: 2.7 to 5.25 V.
  • I/O Supply Range: 1.7 to 5.25 V.
  • Two SW Selectable Unipolar, Input Ranges: 0 to VREF and 0 to 2 x VREF.
  • Auto and Manual Modes for Channel Selection.
  • 4-, 8-Channel Devices and 12-, 16-Channel Devices Share the Same Footprint.
  • Two Programmable Alarm Level.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ADS70A160S SCRs ADV
ADS7608A4A Synchronous DRAM A-Data Technology
ADS7616A4A Synchronous DRAM A-Data Technology
ADS774 Microprocessor-Compatible Sampling CMOS ANALOG-to-DIGITAL CONVERTER Burr-Brown Corporation
ADS7800 12-Bit 3ms Sampling ANALOG-TO-DIGITAL CONVERTER Burr-Brown Corporation

Other Datasheets by Texas Instruments

Part Number Description
ADS7950-Q1 Analog-to-Digital Converter
ADS7951 Serial Interface ADC
ADS7951-Q1 Analog-to-Digital Converter
ADS7952 Serial Interface ADC
ADS7952-Q1 Analog-to-Digital Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

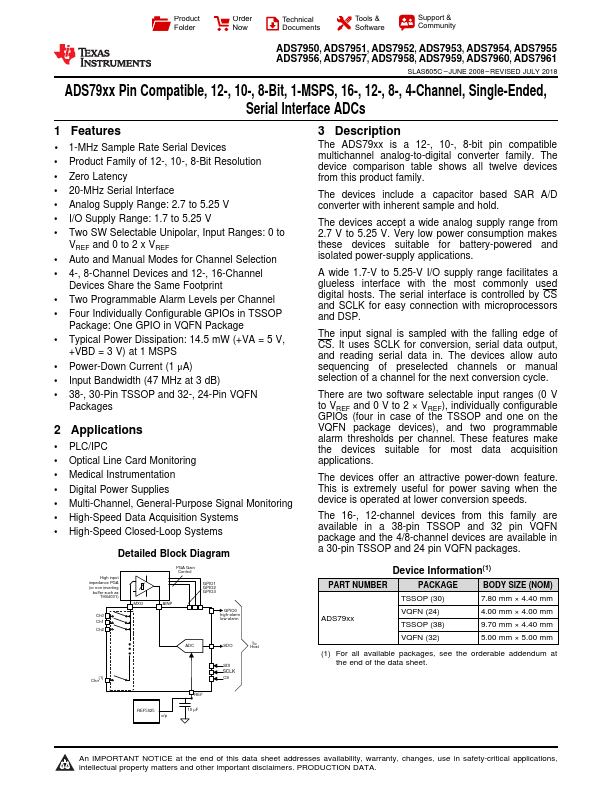

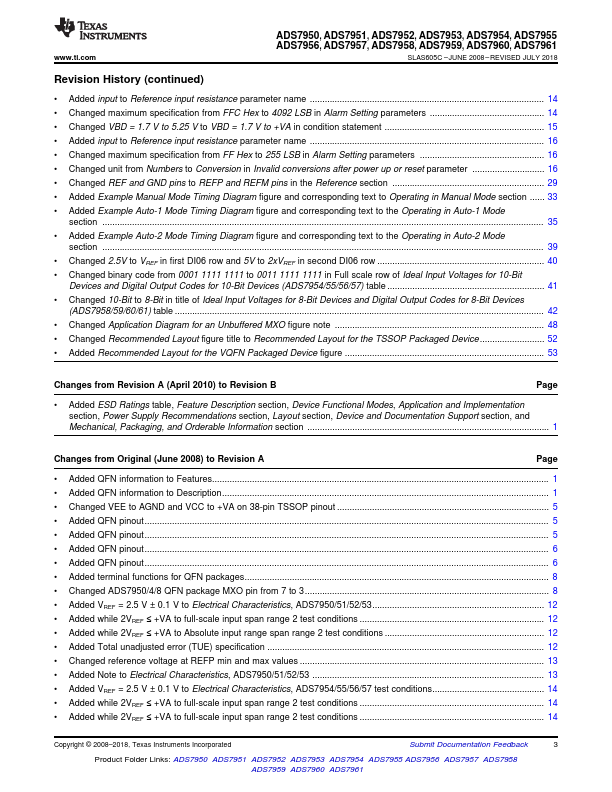

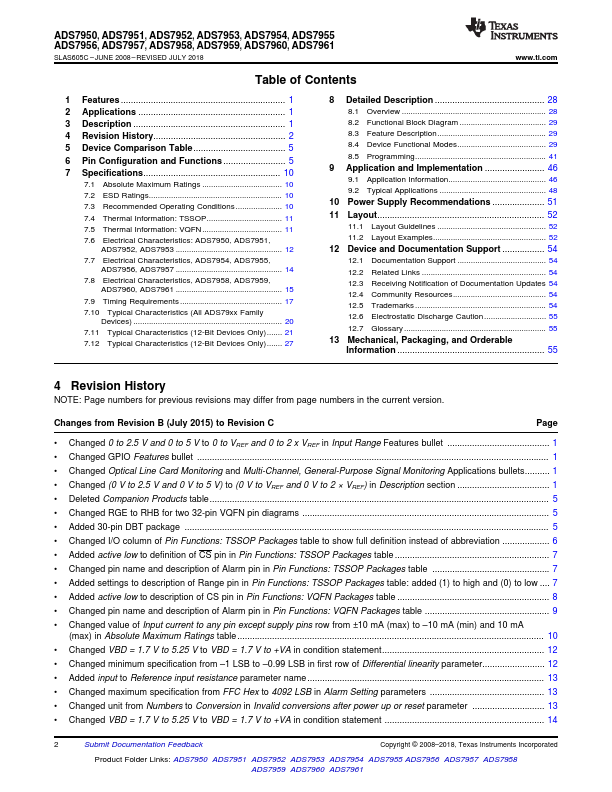

Product Folder Order Now Technical Documents Tools & Software Support & Community ADS7950, ADS7951, ADS7952, ADS7953, ADS7954, ADS7955 ADS7956, ADS7957, ADS7958, ADS7959, ADS7960, ADS7961 SLAS605C – JUNE 2008 – REVISED JULY 2018 ADS79xx Pin Compatible, 12-, 10-, 8-Bit, 1-MSPS, 16-, 12-, 8-, 4-Channel, Single-Ended, Serial Interface ADCs 1 Features •1 1-MHz Sample Rate Serial Devices • Product Family of 12-, 10-, 8-Bit Resolution • Zero Latency • 20-MHz Serial Interface • Analog Supply Range: 2.7 to 5.25 V • I/O Supply Range: 1.7 to 5.
