TDC-GPX2 - 4-Channel Time-to-Digital Converter

Description

The GPX2 is a high performance time-to-digital converter (TDC) frontend device.

Highest measurement performance and highest data throughput is achieved with LVDS stop inputs and LVDS serial outputs for each channel.

Features

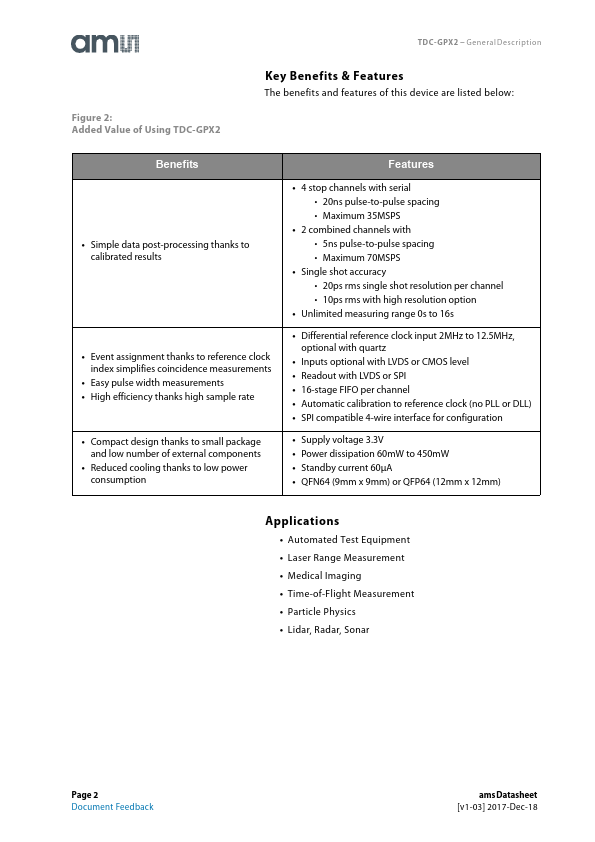

The benefits and features of this device are listed below: Benefits.
Simple data post-processing thanks to calibrated results.
Event assignment thanks to reference clock index simplifies coincidence measurements.
Easy pulse width measurements.
High efficiency thanks high sample rate.
Compact design thanks to small package and low number of external components.
Reduced cooling thanks to low power consumption Features.
4 stop channel.

Datasheet Details

Part number	TDC-GPX2
Manufacturer	ams
File Size	1.10 MB
Description	4-Channel Time-to-Digital Converter
Datasheet	TDC-GPX2 Datasheet

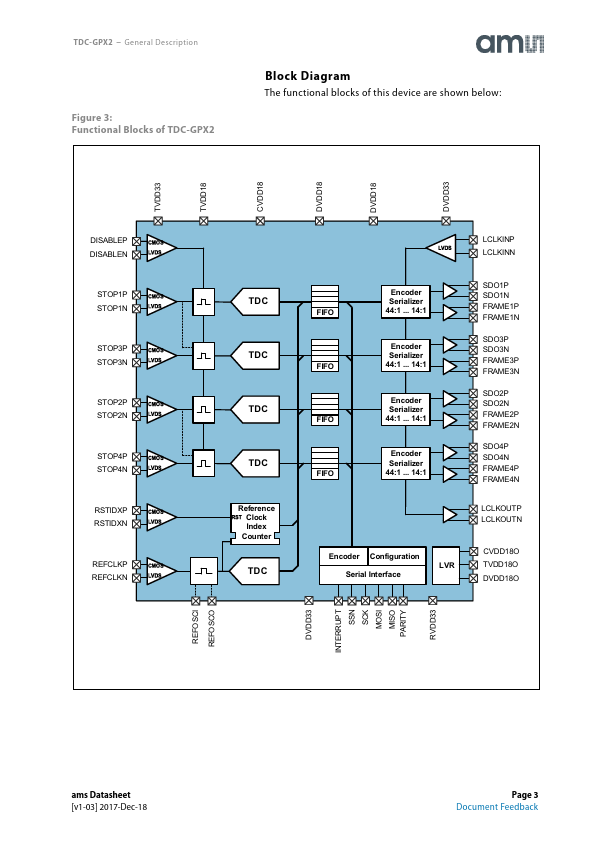

Additional preview pages of the TDC-GPX2 datasheet.

📁 Similar Datasheet

TDC0124 - Quadruple Operational Amplifier (Thomson-CSF)

TDC03A110-5 - Thermistors (NTC)

TDC03A210-5 - Thermistors (NTC)

TDC03C220-5 - Thermistors (NTC)

TDC03C222-5 - Thermistors (NTC)

TDC03C227-5 - Thermistors (NTC)

TDC03C230-5 - Thermistors (NTC)

TDC03C240-5 - Thermistors (NTC)

TDC03C247-5 - Thermistors (NTC)

TDC03C250-5 - Thermistors (NTC)

Full PDF Text Transcription

Click to expand full text

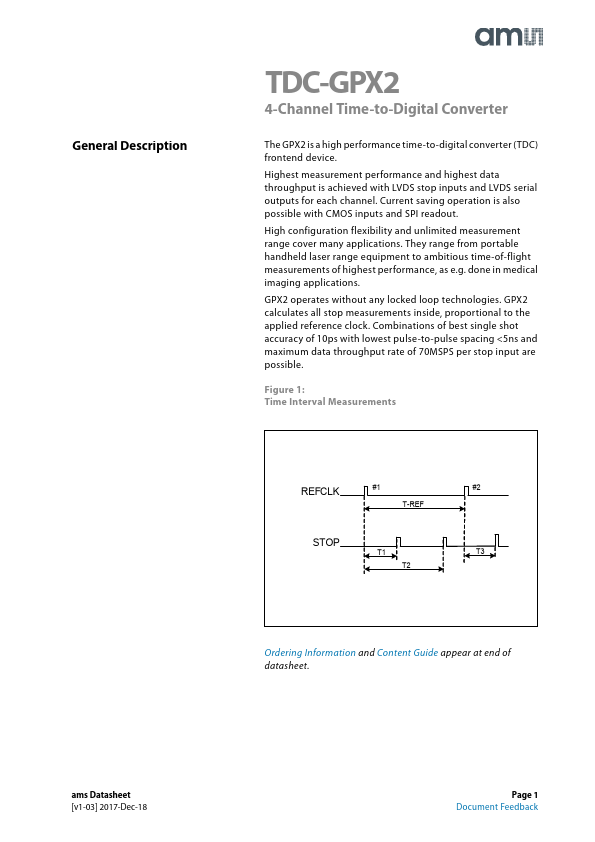

General Description TDC-GPX2 4-Channel Time-to-Digital Converter The GPX2 is a high performance time-to-digital converter (TDC) frontend device. Highest measurement performance and highest data throughput is achieved with LVDS stop inputs and LVDS serial outputs for each channel. Current saving operation is also possible with CMOS inputs and SPI readout. High configuration flexibility and unlimited measurement range cover many applications. They range from portable handheld laser range equipment to ambitious time-of-flight measurements of highest performance, as e.g. done in medical imaging applications. GPX2 operates without any locked loop technologies. GPX2 calculates all stop measurements inside, proportional to the applied reference clock.
