AS3933 - 3D Low Frequency Wake-Up Receiver

Description

The AS3933 is a 3-channel low power ASK receiver that is able to generate a wake-up upon detection of a data signal which uses a LF carrier frequency between 15-150 kHz.

The integrated correlator can be used for detection of a programmable 16-bit or 32-bit Manchester wake-up pattern.

Features

  • of AS3933 enable to optimize its settings for achieving a longer distance while retaining a reliable wake-up generation. The sensitivity level of AS3933 can be adjusted in presence of a strong field or in noisy environments. Antenna tuning is greatly simplified, as the automatic tuning feature ensures perfect matching to the desired carrier frequency. The device is available in 16-pin TSSOP and 16-LD QFN (4x4mm) packages, and DoW (dice on wafer). Ordering Information and Content Guide appear at.

📥 Download Datasheet

Datasheet preview – AS3933

Datasheet Details

Part number AS3933
Manufacturer ams
File Size 1.08 MB
Description 3D Low Frequency Wake-Up Receiver
Datasheet download datasheet AS3933 Datasheet

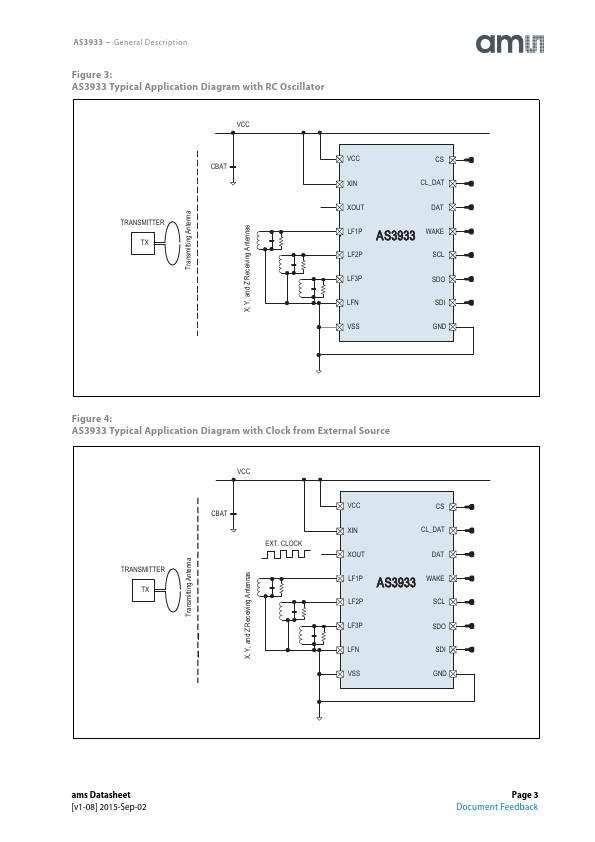

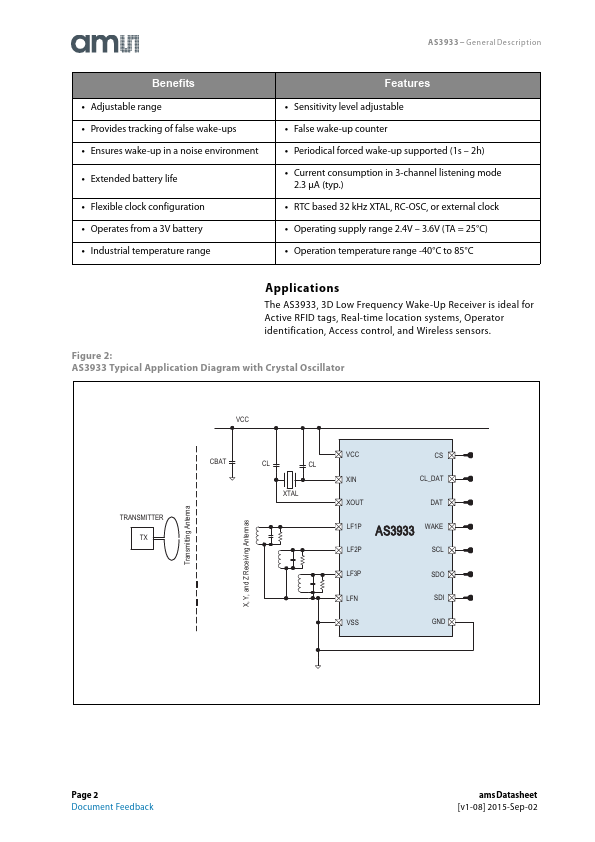

Additional preview pages of the AS3933 datasheet.

📁 Similar Datasheet

  • AS393 - LOW POWER LOW OFFSET VOLTAGE DUAL COMPARATORS (Diodes)
  • AS393 - LOW POWER LOW OFFSET VOLTAGE DUAL COMPARATORS (BCD Semiconductor)
  • AS3930 - Single Channel Low Frequency Wakeup Receiver (austria microsystems)
  • AS3931 - 3D Low Power Wake-up Receiver (austriamicrosystems AG)
  • AS3932 - 3D Low Frequency Wakeup Receiver (austriamicrosystems AG)
  • AS3935 - Franklin Lightning Sensor (austria microsystems)
  • AS393A - LOW POWER LOW OFFSET VOLTAGE DUAL COMPARATORS (Diodes)
  • AS393A - LOW POWER LOW OFFSET VOLTAGE DUAL COMPARATORS (BCD Semiconductor)
  • AS3901 - ISM 433/315 MHz FSK/ASK Transmitter (austriamicrosystems AG)
  • AS3902 - ISM 433 MHz ASK Transmitter (austriamicrosystems AG)
Other Datasheets by ams
  • AS3930 - Single Channel Low Frequency Wakeup Receiver
  • AS3932 - 3D Low Frequency Wakeup Receiver
  • AS3935 - Franklin Lightning Sensor
  • AS3909 - 13.56 MHz RFID Reader
  • AS3910 - 13.56 MHz RFID Reader
  • AS3911B - NFC Initiator / HF Reader
  • AS39513 - NFC Sensor Tag and Data Logger
  • AS3953A - 14443 High Speed Passive Tag Interface

Full PDF Text Transcription

Click to expand full text

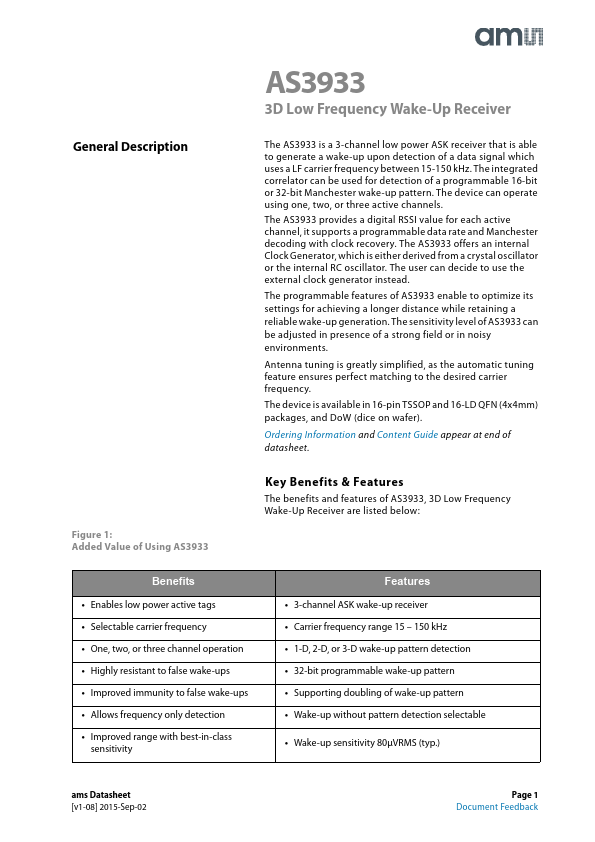

AS3933 3D Low Frequency Wake-Up Receiver General Description The AS3933 is a 3-channel low power ASK receiver that is able to generate a wake-up upon detection of a data signal which uses a LF carrier frequency between 15-150 kHz. The integrated correlator can be used for detection of a programmable 16-bit or 32-bit Manchester wake-up pattern. The device can operate using one, two, or three active channels. The AS3933 provides a digital RSSI value for each active channel, it supports a programmable data rate and Manchester decoding with clock recovery. The AS3933 offers an internal Clock Generator, which is either derived from a crystal oscillator or the internal RC oscillator. The user can decide to use the external clock generator instead.
