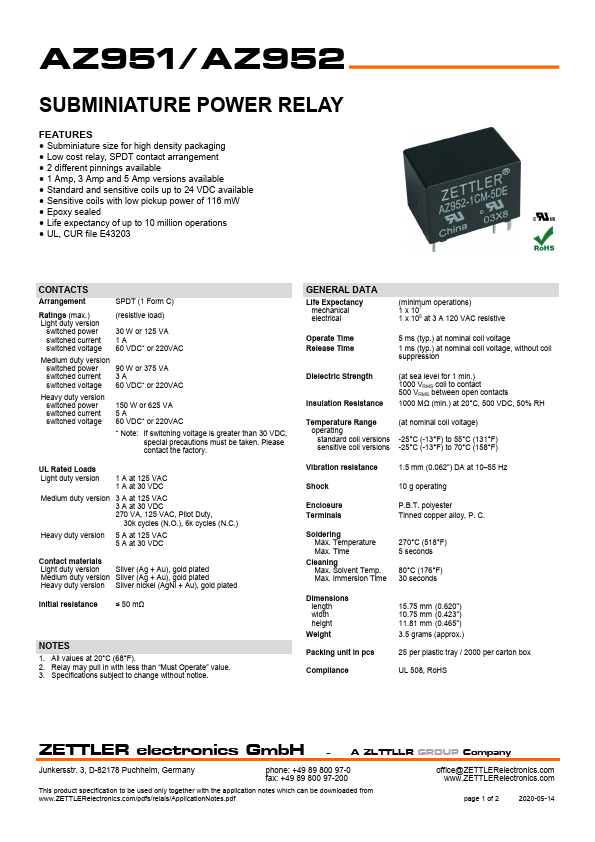

AZ951 Datasheet SUBMINIATURE POWER RELAY

Manufacturer: Zettler

Overview: AZ951/AZ952 SUBMINIATURE POWER RELAY.

📥 Download Datasheet

Datasheet Details

Part number AZ951
Manufacturer Zettler
File Size 39.50 KB
Description SUBMINIATURE POWER RELAY
Download AZ951 Download (PDF)

Key Features

  • Subminiature size for high density packaging.
  • Coil sensitivity to 116 mW.
  • Extremely low cost.
  • Coils to 24 VDC.
  • Epoxy sealed for automatic wave soldering.
  • 1 Amp, 3 Amp & 5 Amp contacts.
  • Life expectancy to 10 million operations.
  • UL, CUR file E43203.
