XL7056 - 2.1A 100KHz 100V Buck DC to DC Converter

Description

The XL7056 is a 100KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 2.1A load with high efficiency, low ripple and excellent line and load regulation.

Features

  • Maximum Input Voltage 100V.
  • Maximum Duty Cycle up to 85%.
  • Minimum Drop Out 2.0V.
  • Adjust VOUT from 1.25V to 20V.
  • Max. IOUT=2.1A at VOUT=5V.
  • Max. IOUT=1.2A at VOUT=15V.
  • Fixed 100KHz Switching Frequency.
  • Max. Output power less than 20W.
  • Internal Optimize HV Power MOSFET.
  • High efficiency up to 93%.
  • Excellent line and load regulation.
  • Built in current limit function.
  • Built in output short Protection Function.
  • TO263-7L package Gen.

📥 Download Datasheet

Datasheet Details

Part number XL7056
Manufacturer Xlsemi
File Size 313.38 KB
Description 2.1A 100KHz 100V Buck DC to DC Converter
Datasheet download datasheet XL7056 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XL7090 LED Lamp Cree Research
XL7090WHT LED Lamp Cree Research
XL7555 CMOS RC timer XINLUDA
XL7660 Super Voltage Converters XINLUDA

Other Datasheets by Xlsemi

Part Number Description
XL7001 100KHz 56V 0.5A Switching Current Dual Channel Buck DC/DC Converter
XL7002 180KHz 80V 0.5A Switching Current Buck DC/DC Converter
XL7003 220KHz 90V 1A Switching Current SEPIC DC/DC Converter
XL7005 0.4A 150KHz 65V Buck DC/DC Converter
XL7005A 0.4A 150KHz 80V Buck DC-to-DC Converter

Full PDF Text Transcription

Click to expand full text

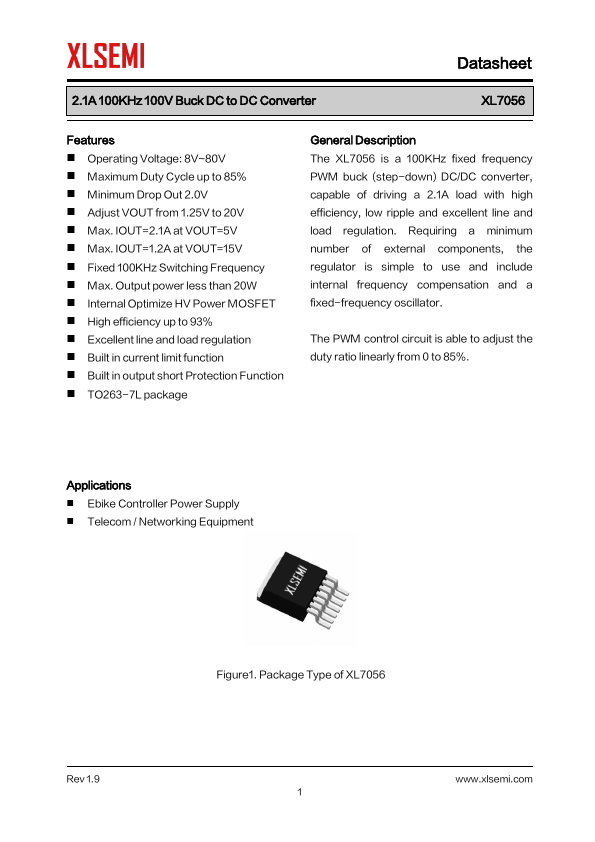

Datasheet 2.1A 100KHz 100V Buck DC to DC Converter XL7056 Features  Maximum Input Voltage 100V  Maximum Duty Cycle up to 85%  Minimum Drop Out 2.0V  Adjust VOUT from 1.25V to 20V  Max. IOUT=2.1A at VOUT=5V  Max. IOUT=1.2A at VOUT=15V  Fixed 100KHz Switching Frequency  Max. Output power less than 20W  Internal Optimize HV Power MOSFET  High efficiency up to 93%  Excellent line and load regulation  Built in current limit function  Built in output short Protection Function  TO263-7L package General Description The XL7056 is a 100KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 2.1A load with high efficiency, low ripple and excellent line and load regulation.
