XL7292 - 2x35W 5A High Power Stereo Audio Power Amplifier

Datasheet Summary

Description

XL7292 is a Class AB dual audio power amplifier optimized for high power and high efficiency.

XL7292 has low quiescent current and minimizing system power consumption.

XL7292 has excellent audio performance and achieved extremely low distortion levels even at 35W power levels.

Features

  • Operation Voltage：16V~40V.
  • Max. Output current capability up to 5A.
  • Max. Output power up to 2×35W.
  • Mute (“pop” free).
  • Standby feature.
  • Built in output over power protection.
  • Built in output overvoltage protection.
  • Built in current limit protection function.
  • Built in thermal shutdown function.
  • Low quiescent current：31mA.
  • Low Distortion：0.02%，1KHz，1W.
  • Device HBM ESD Classification Level Class3B.
  • Available in FZIP11 package Applicati.

📥 Download Datasheet

Datasheet preview – XL7292

Datasheet Details

Part number XL7292
Manufacturer XLSEMI
File Size 547.41 KB
Description 2x35W 5A High Power Stereo Audio Power Amplifier
Datasheet download datasheet XL7292 Datasheet
Additional preview pages of the XL7292 datasheet.

📁 Similar Datasheet

  • XL7090 - LED Lamp (Cree Research)
  • XL7090WHT - LED Lamp (Cree Research)
  • XL7555 - CMOS RC timer (XINLUDA)
  • XL7660 - Super Voltage Converters (XINLUDA)
Other Datasheets by XLSEMI
  • XL7001 - 100KHz 56V 0.5A Switching Current Dual Channel Buck DC/DC Converter
  • XL7002 - 180KHz 80V 0.5A Switching Current Buck DC/DC Converter
  • XL7003 - 220KHz 90V 1A Switching Current SEPIC DC/DC Converter
  • XL7005 - 0.4A 150KHz 65V Buck DC/DC Converter
  • XL7005A - 0.4A 150KHz 80V Buck DC-to-DC Converter
  • XL7007 - 0.8A 180KHz 65V Buck DC/DC Converter
  • XL7010 - 150KHz 120V 1A Switching Current SEPIC DC/DC Converter
  • XL7015 - 0.8A 150KHz 80V Buck DC/DC Converter

Full PDF Text Transcription

Click to expand full text

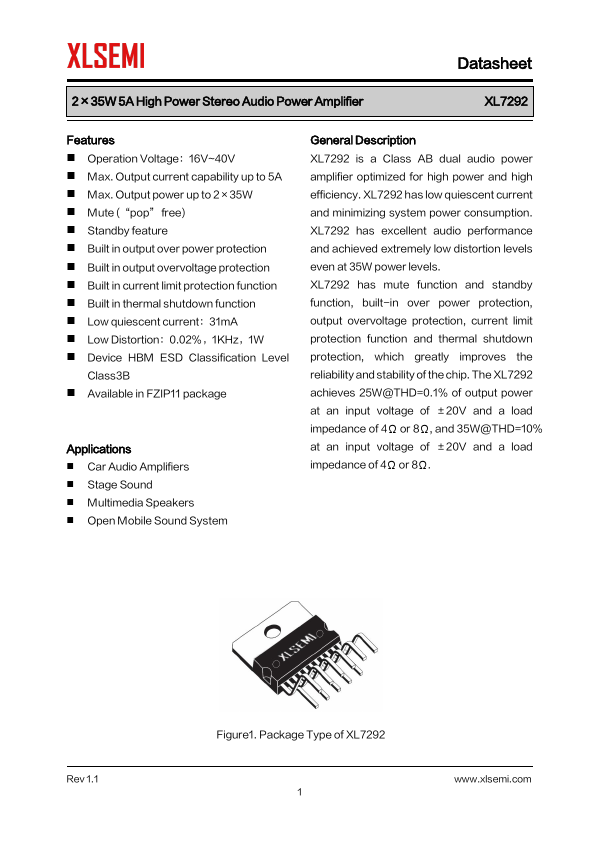

Datasheet 2×35W 5A High Power Stereo Audio Power Amplifier XL7292 Features  Operation Voltage：16V~40V  Max. Output current capability up to 5A  Max. Output power up to 2×35W  Mute (“pop” free)  Standby feature  Built in output over power protection  Built in output overvoltage protection  Built in current limit protection function  Built in thermal shutdown function  Low quiescent current：31mA  Low Distortion：0.02%，1KHz，1W  Device HBM ESD Classification Level Class3B  Available in FZIP11 package Applications  Car Audio Amplifiers  Stage Sound  Multimedia Speakers  Open Mobile Sound System General Description XL7292 is a Class AB dual audio power amplifier optimized for high power and high efficiency.
