XL6103 - SBD Boost LED Constant Current Driver

Datasheet Summary

Description

XL6103 is a built in high frequency power transistor and Schottky diode Boost LED constant current driver, fixed 1.2MHz frequency PWM, can support input operating voltage range of 2.5V~25V.

Features

  • Operation Voltage：2.5V~25V.
  • Directly Drive 1~10 Series LED.
  • Shutdown Current：3uA.
  • Fixed 1.2MHz Switching Frequency.
  • 600mA Constant Output Current Capability.
  • Built in High Frequency Power Transistor.
  • Built in Schottky Diode.
  • High Efficiency up to 87%.
  • Excellent line and load regulation.
  • EN PIN TTL ON/OFF capability.
  • Dimming Control Using a PWM Signal in EN PIN.
  • Boost or SEPIC Topologies.
  • Built in LED open circuit protection functi.

📥 Download Datasheet

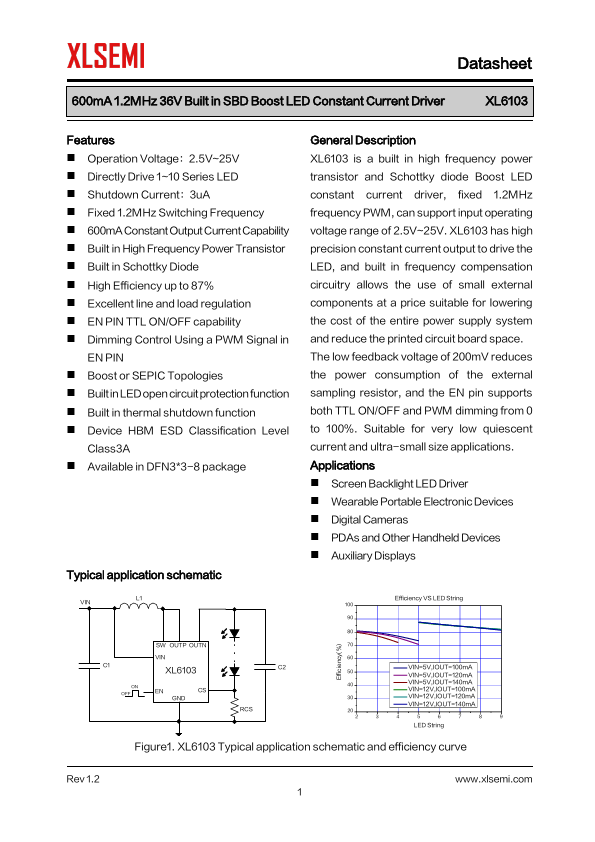

Datasheet preview – XL6103

Datasheet Details

Part number XL6103
Manufacturer XLSEMI
File Size 493.86 KB
Description SBD Boost LED Constant Current Driver
Datasheet download datasheet XL6103 Datasheet
Additional preview pages of the XL6103 datasheet.
