VO617A - Optocoupler

Description

The 110 °C rated VO617A feature a high current transfer ratio, low coupling capacitance and high isolation voltage.

These couplers have a GaAs infrared diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a plastic DIP-4 package.

Features

  • Operating temperature from - 55 °C to + 110 °C Good CTR linearity depending on forward current Isolation test voltage, 5300 VRMS High collector emitter voltage, VCEO = 80 V Low saturation voltage Fast switching times Low CTR degradation Temperature stable Low coupling capacitance End stackable, 0.100" (2.54 mm) spacing High common mode interference immunity Material categorizat.

📥 Download Datasheet

Datasheet Details

Part number VO617A
Manufacturer Vishay
File Size 205.12 KB
Description Optocoupler
Datasheet download datasheet VO617A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Vishay

Part Number Description
VO617C Optocoupler
VO610A Optocoupler
VO615A Optocoupler
VO615C Optocoupler
VO618A Optocoupler

Full PDF Text Transcription

Click to expand full text

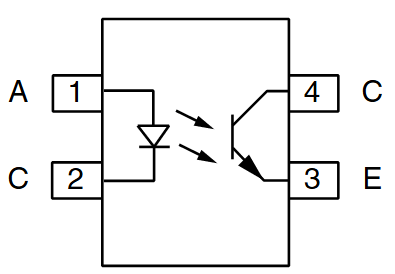

VO617A www.vishay.com Vishay Semiconductors Optocoupler, Phototransistor Output, High Reliability, 5300 VRMS FEATURES • • • • • • • • • • • • Operating temperature from - 55 °C to + 110 °C Good CTR linearity depending on forward current Isolation test voltage, 5300 VRMS High collector emitter voltage, VCEO = 80 V Low saturation voltage Fast switching times Low CTR degradation Temperature stable Low coupling capacitance End stackable, 0.100" (2.54 mm) spacing High common mode interference immunity Material categorization: For definitions of compliance please see www.vishay.com/doc?99912 A C 1 2 4 3 C E APPLICATIONS DESCRIPTION The 110 °C rated VO617A feature a high current transfer ratio, low coupling capacitance and high isolation voltage.
