SQ7414EN - Automotive N-Channel MOSFET

Features

  • 60 0.025 0.036 5.6 Single D.
  • TrenchFET® Power MOSFET.
  • Low Thermal Resistance PowerPAK® 1212-8 Package with 1.07 mm Profile.
  • PWM Optimized.
  • AEC-Q101 Qualified.
  • 100 % Rg and UIS Tested.
  • Compliant to RoHS Directive 2002/95/EC 3.30 mm S 1 2 3 S S 3.30 mm G G 4 D 8 7 6 5 D D D S N-Channel MOSFET Bottom View.

📥 Download Datasheet

Datasheet Details

Part number SQ7414EN
Manufacturer Vishay
File Size 611.34 KB
Description Automotive N-Channel MOSFET
Datasheet download datasheet SQ7414EN Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SQ741 SILICON GATE ENHANCEMENT MODE RF POWER VDMOS TRANSISTOR Polyfet RF Devices
SQ742 SILICON GATE ENHANCEMENT MODE RF POWER VDMOS TRANSISTOR Polyfet RF Devices
SQ701 SILICON GATE ENHANCEMENT MODE RF POWER VDMOS TRANSISTOR Polyfet RF Devices
SQ721 SILICON GATE ENHANCEMENT MODE RF POWER VDMOS TRANSISTOR Polyfet RF Devices

Other Datasheets by Vishay

Part Number Description
SQ7414AEN Automotive N-Channel MOSFET
SQ7414AENW Automotive N-Channel MOSFET
SQ7414CENW Automotive N-Channel MOSFET
SQ7415AEN Automotive P-Channel MOSFET
SQ7415AENW Automotive P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

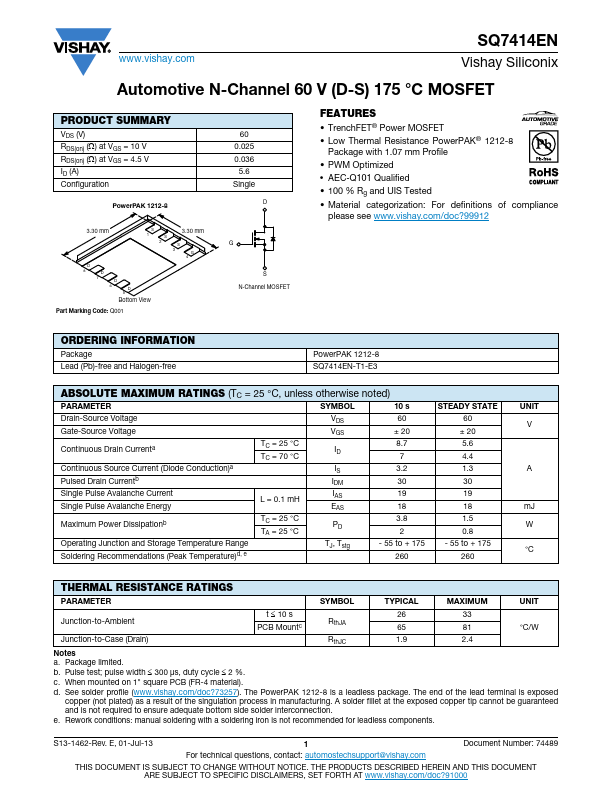

www.DataSheet.co.kr SQ7414EN www.vishay.com Vishay Siliconix Automotive N-Channel 60 V (D-S) 175 °C MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () at VGS = 10 V RDS(on) () at VGS = 4.5 V ID (A) Configuration PowerPAK 1212-8 FEATURES 60 0.025 0.036 5.6 Single D • TrenchFET® Power MOSFET • Low Thermal Resistance PowerPAK® 1212-8 Package with 1.07 mm Profile • PWM Optimized • AEC-Q101 Qualified • 100 % Rg and UIS Tested • Compliant to RoHS Directive 2002/95/EC 3.30 mm S 1 2 3 S S 3.
