SQ2337ES - Automotive P-Channel MOSFET

Datasheet Summary

Features

  • TrenchFET® Power MOSFET.
  • AEC-Q101 Qualifiedc.
  • 100 % Rg and UIS Tested.
  • Material categorization:  For definitions of compliance please see www. vishay. com/doc?99912 G1 S2 3D G Top View SQ2337ES Marking Code: 8Qxxx.

📥 Download Datasheet

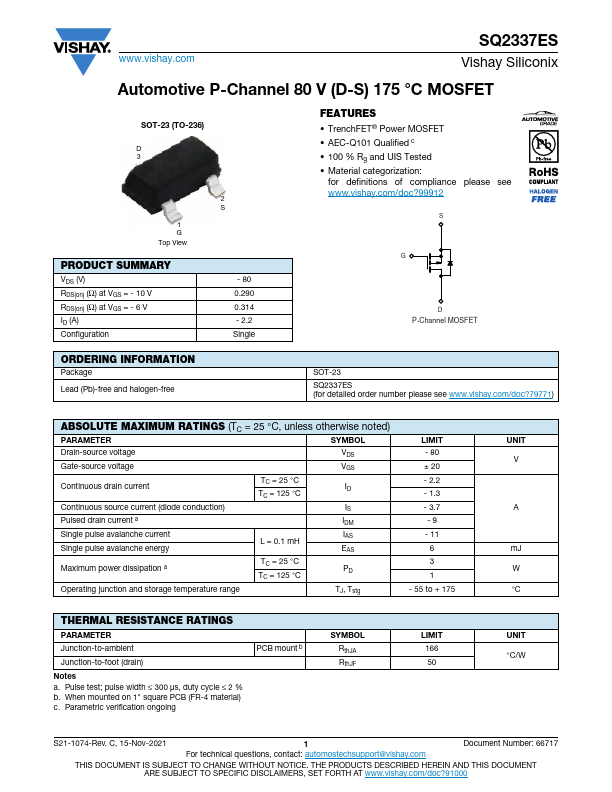

Datasheet preview – SQ2337ES

Datasheet Details

Part number SQ2337ES
Manufacturer Vishay
File Size 218.45 KB
Description Automotive P-Channel MOSFET
Datasheet download datasheet SQ2337ES Datasheet

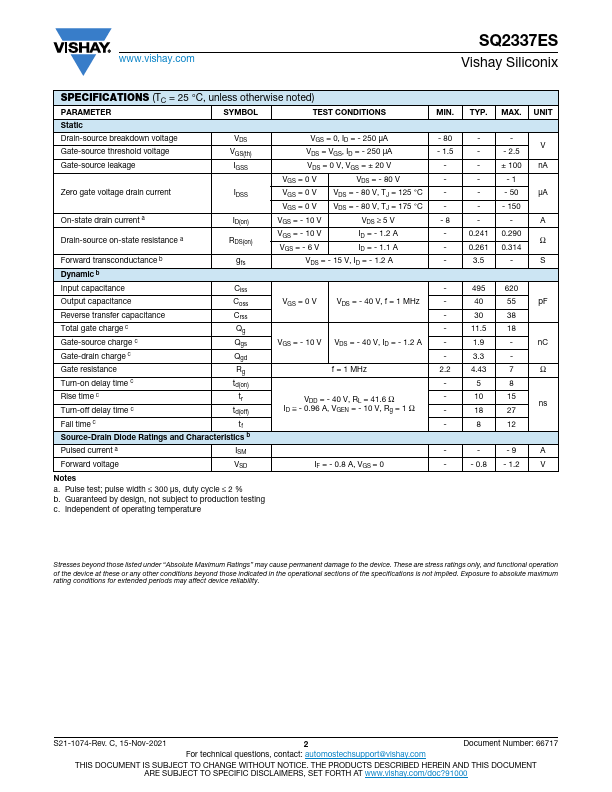

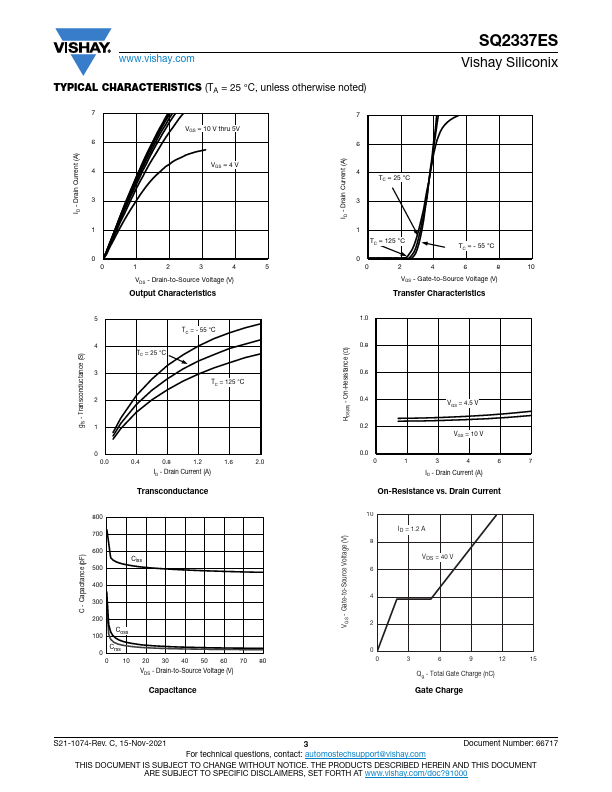

Additional preview pages of the SQ2337ES datasheet.

📁 Similar Datasheet

  • SQ2308BES - Automotive N-Channel MOSFET (FreesCale Electronics)
  • SQ2318AES - N-Channel MOSFET (INCHANGE)
  • SQ201 - SILICON GATE ENHANCEMENT MODE RF POWER VDMOS TRANSISTOR (Polyfet RF Devices)
  • SQ202 - SILICON GATE ENHANCEMENT MODE RF POWER VDMOS TRANSISTOR (Polyfet RF Devices)
  • SQ2222A - Chip Type 2C2222A Geometry 0400 Polarity NPN (Semicoa Semiconductor)
  • SQ2222AF - Chip Type 2C2222A Geometry 0400 Polarity NPN (Semicoa Semiconductor)
  • SQ24D25 - DC Solid-State Relay (Teledyne)
  • SQ24R25 - DC Solid-State Relay (Teledyne)
  • SQ24R25-02 - DC Solid-State Relay (Teledyne)
  • SQ2857 - Chip Type 2C2857 Geometry 0011 Polarity NPN (Semicoa Semiconductor)
Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text
www.vishay.com SQ2337ES Vishay Siliconix Automotive P-Channel 80 V (D-S) 175 °C MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () at VGS = - 10 V RDS(on) () at VGS = - 6 V ID (A) TO-236 (SOT-23) - 80 0.290 0.314 - 2.2 S FEATURES • TrenchFET® Power MOSFET • AEC-Q101 Qualifiedc • 100 % Rg and UIS Tested • Material categorization:  For definitions of compliance please see www.vishay.
