NTCALUG02A - NTC Thermistors

Description

Vishay thermistor chip NTC with epoxy coating and middle buffer layer mounted in a tin plated copper ring lug with PEEK insulated leads AWG#30 (Ø 0.25 mm), mono-stranded silver-plated nickel.

The thermistors are packed in cardboard boxes; the smallest packaging quantity is 500 units.

Features

  • https://info. vishay. com/vishay-ntc-modification-request.
  • 3D solid models: www. vishay. com/doc?29145.
  • NTC curve computation: www. vishay. com/thermistors/ntc-rt-calculator/.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NTCALUG03 NTC Thermistors Mini Lug Sensors Vishay Siliconix
NTC- 3D -15x DIP NTC THERMISTOR Mayloon
NTC- 5D -15x DIP NTC THERMISTOR Mayloon
NTC- 8D -15x DIP NTC THERMISTOR Mayloon
NTC-0.7D20 Power Type NTC Thermistor EXSENSE

Other Datasheets by Vishay

Part Number Description
NTCALUG01A NTC Thermistors
NTCALUG01T NTC Thermistors Standard Lug Sensors
NTCAFLEX05 Flex Foil Sensors
NTCAFLEX05103HH Flex Foil Sensors
NTCAFLEX05473HH Flex Foil Sensors

Full PDF Text Transcription

Click to expand full text

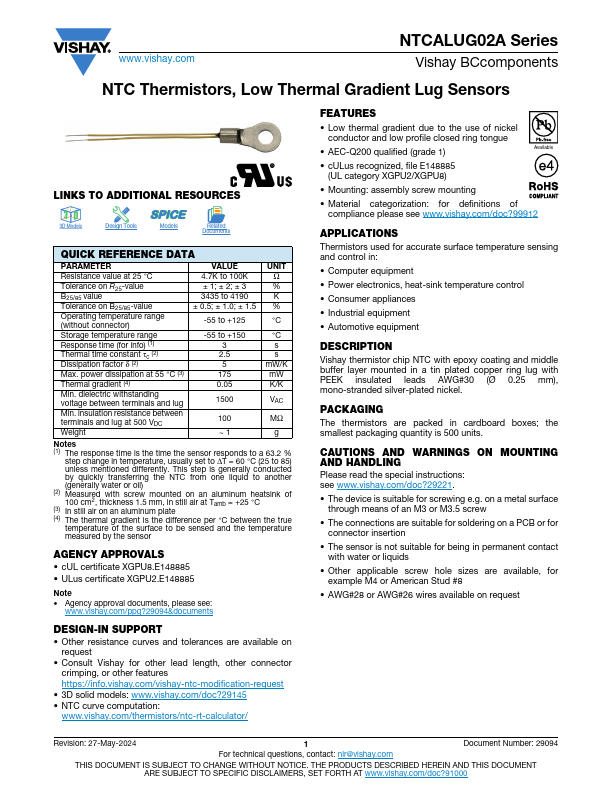

www.vishay.com NTCALUG02A Series Vishay BCcomponents NTC Thermistors, Low Thermal Gradient Lug Sensors LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Design Tools Models Related Documents QUICK REFERENCE DATA PARAMETER Resistance value at 25 °C Tolerance on R25-value B25/85 value Tolerance on B25/85-value Operating temperature range (without connector) Storage temperature range Response time (for info) (1) Thermal time constant τc (2) Dissipation factor δ (2) Max. power dissipation at 55 °C (3) Thermal gradient (4) Min. dielectric withstanding voltage between terminals and lug Min. insulation resistance between terminals and lug at 500 VDC Weight VALUE 4.7K to 100K ± 1; ± 2; ± 3 3435 to 4190 ± 0.5; ± 1.0; ± 1.5 -55 to +125 -55 to +150 3 2.5 5 175 0.
