MBR1550CT - Dual Common Cathode Schottky Rectifier

Product Overview

Vishay

Part number	MBR1550CT
Manufacturer	Vishay
File Size	110.83 KB
Description	Dual Common Cathode Schottky Rectifier
Datasheet	MBR1550CT Datasheet
Note	This datasheet PDF includes multiple part numbers: MBR1550CT, MBR1535CT. Please refer to the document for exact specifications by model.

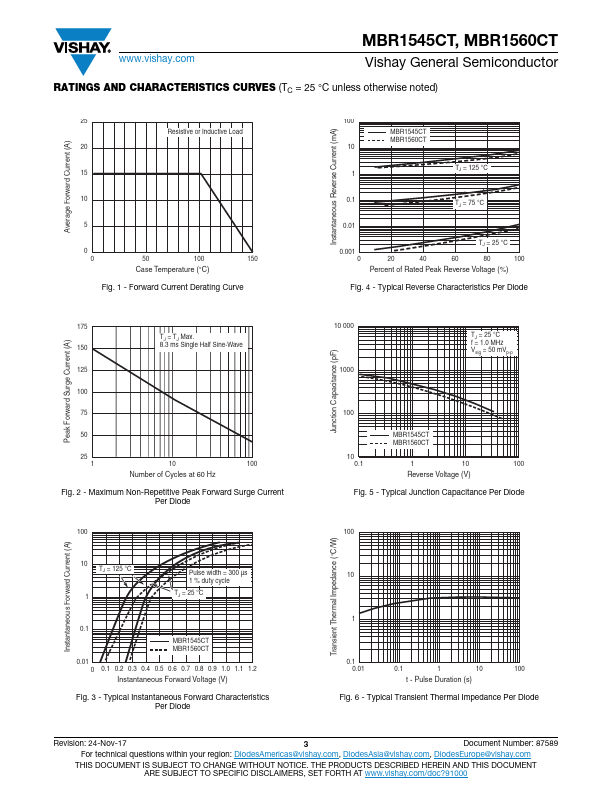

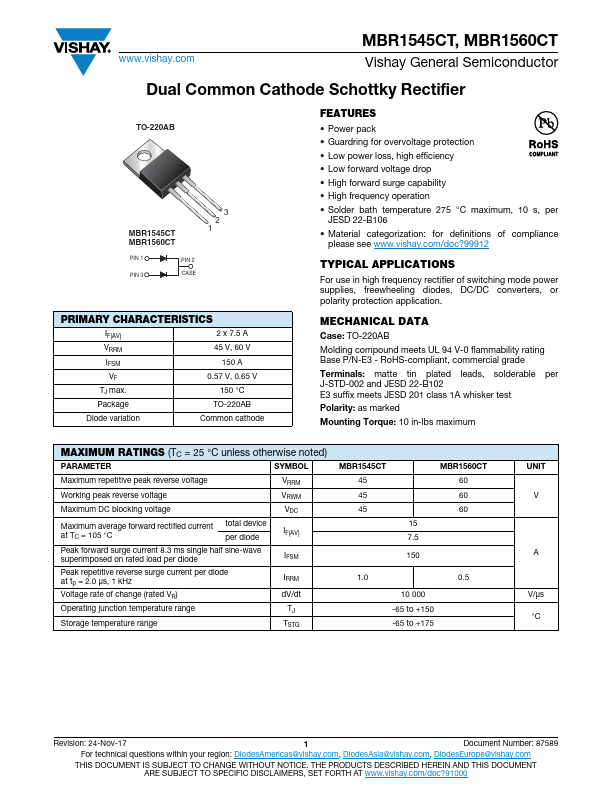

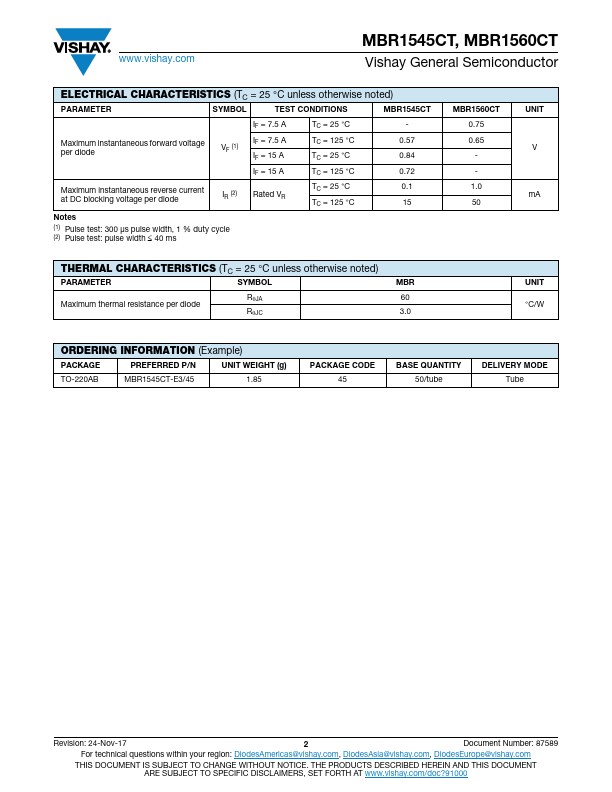

Additional preview pages of the MBR1550CT datasheet.

Guardring for overvoltage protection.
Low power loss, high efficiency.
Low forward voltage drop.
High forward surge capability.
High frequency operation.
Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package).
Solder bath temperature 275 °C maximum, 10 s, per JESD 22-B106 (for TO-220AB and ITO-220AB package).
AEC-Q101 qualified.
Material categorization: For definitions of compliance plea.
