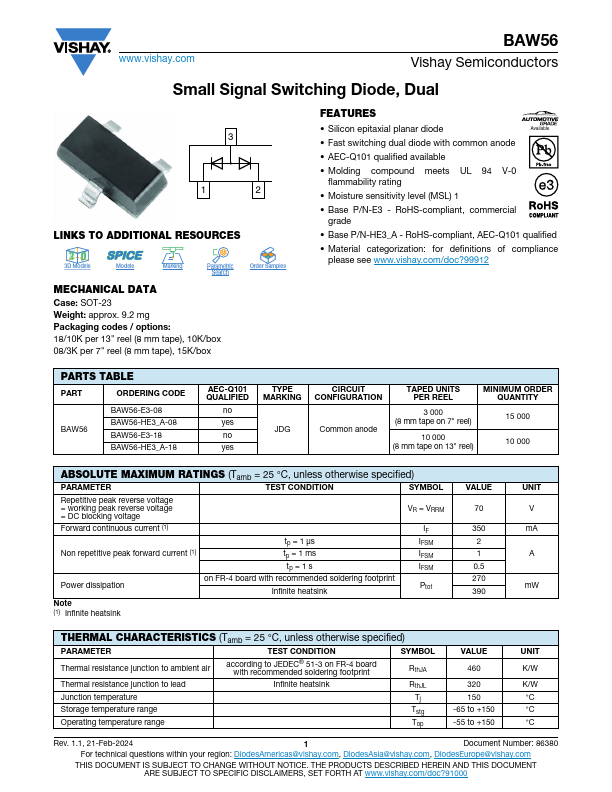

BAW56
FEATURES
- Silicon epitaxial planar diode
Available
- Fast switching dual diode with mon anode
- AEC-Q101 qualified available
- Molding pound meets UL 94 V-0 flammability rating
- Moisture sensitivity level (MSL) 1
- Base P/N-E3
- Ro HS-pliant, mercial grade
- Base P/N-HE3_A
- Ro HS-pliant, AEC-Q101 qualified
- Material categorization: for definitions of pliance please see .vishay./doc?99912
PARTS TABLE
PART
ORDERING CODE
BAW56-E3-08 BAW56-HE3_A-08 BAW56-E3-18 BAW56-HE3_A-18
AEC-Q101 QUALIFIED no yes no yes
TYPE MARKING
CIRCUIT CONFIGURATION mon anode
TAPED UNITS PER REEL
3 000 (8 mm tape on 7" reel)
10 000 (8 mm tape on 13" reel)
MINIMUM ORDER QUANTITY 15 000
10 000
ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
SYMBOL
Repetitive peak reverse voltage = working peak reverse voltage = DC blocking voltage
VR = VRRM
Forward continuous current (1)
IF tp = 1 μs
IFSM
Non repetitive peak forward current (1)...
