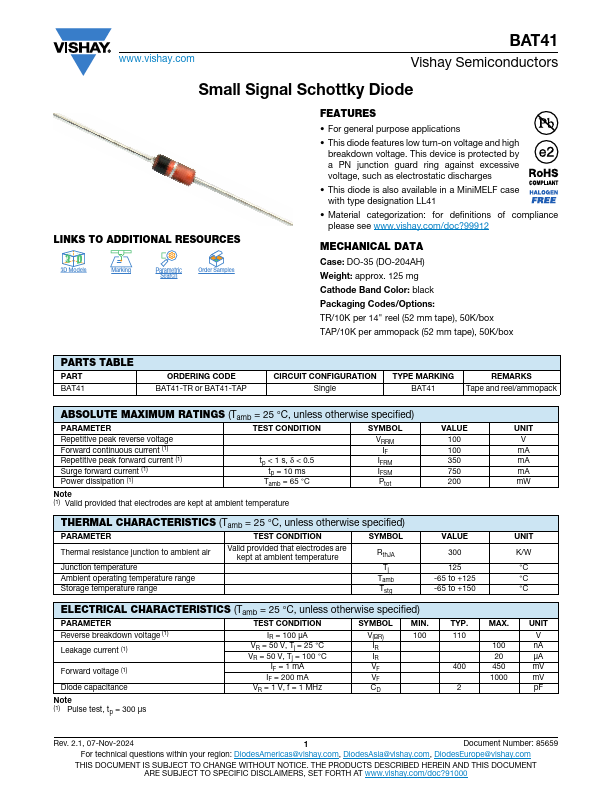

BAT41
FEATURES
- For general purpose applications
- This diode features low turn-on voltage and high breakdown voltage. This device is protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges
- This diode is also available in a Mini MELF case with type designation LL41
- Material categorization: for definitions of pliance please see .vishay./doc?99912

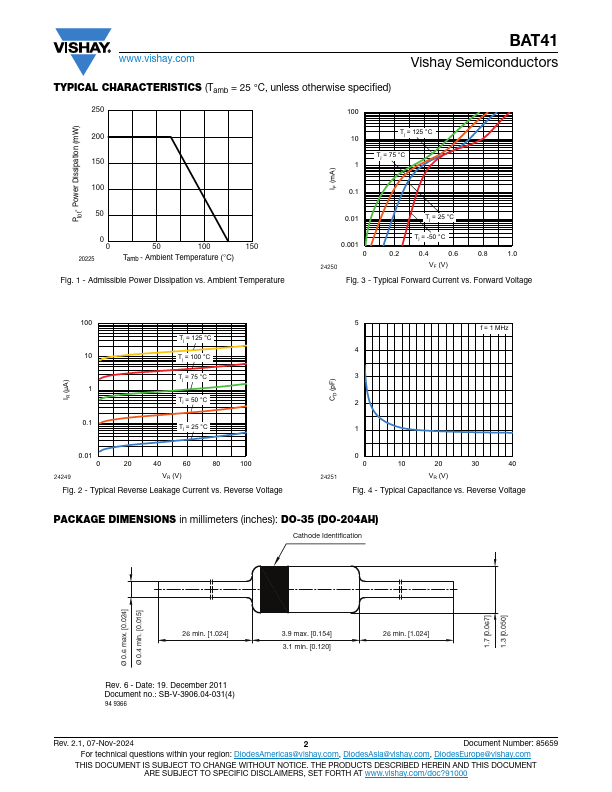

MECHANICAL DATA Case: DO-35 (DO-204AH) Weight: approx. 125 mg Cathode Band Color: black Packaging Codes/Options: TR/10K per 14" reel (52 mm tape), 50K/box TAP/10K per ammopack (52 mm tape), 50K/box
PARTS TABLE
PART BAT41
ORDERING CODE BAT41-TR or BAT41-TAP
CIRCUIT CONFIGURATION Single
TYPE MARKING
REMARKS
Tape and reel/ammopack
ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
SYMBOL
Repetitive peak reverse voltage Forward continuous current (1) Repetitive peak forward current (1) Surge forward current (1) Power dissipation (1) tp < 1 s, δ <...
