2N5566 Datasheet Matched N-Channel JFET

Manufacturer: Vishay

2N5566 matched n-channel jfet by Vishay - Datasheet Preview

Datasheet Details

Part number	2N5566
Manufacturer	Vishay
File Size	106.92 KB
Description	Matched N-Channel JFET
Datasheet	2N5566 Datasheet

General Description

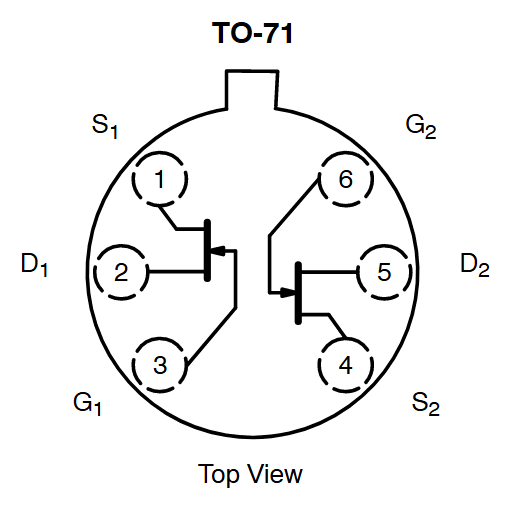

The 2N5564/5565/5566 are matched pairs of JFETs mounted in a TO-71 package.

This two-chip design reduces parasitics for good performance at high frequency while ensuring extremely tight matching.

This series

Overview

2N5564/5565/5566 Vishay Siliconix Matched N-Channel JFET Pairs PRODUCT SUMMARY Part Number 2N5564 2N5565 2N5566 VGS(off) (V) −0.5 to −3 −0.5 to −3 −0.5 to −3 V(BR)GSS Min (V) −40 −40 −40 gfs Min (mS) 7.5 7.5 7.

Key Features

D Two-Chip Design D High Slew Rate D Low Offset/Drift Voltage D Low Gate Leakage: 3 pA D Low Noise: 12 nV⁄√Hz @ 10 Hz D Good CMRR: 76 dB D Minimum Parasitics.
