AO4266 - 60V N-Channel MOSFET

VBsemi

Key Features

Halogen-free According to IEC 61249-2-21 Definition.
Trench Power MOSFET.
Optimized for “Low Side” Synchronous Rectifier Operation.
100 % Rg and UIS Tested.

AO4266 60v n-channel mosfet by VBsemi - Datasheet Preview

Datasheet Details

Part number	AO4266
Manufacturer	VBsemi
File Size	181.07 KB
Description	60V N-Channel MOSFET
Datasheet	AO4266 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
AO4266	N-Channel MOSFET	Kexin
AO4266	60V N-Channel MOSFET	Alpha & Omega Semiconductors
AO4266E	60V N-Channel MOSFET	Alpha & Omega Semiconductors
AO4260	N-Channel MOSFET	Kexin
AO4260	60V N-Channel MOSFET	Alpha & Omega Semiconductors

Other Datasheets by VBsemi

Part Number	Description
AO4202	30V N-Channel MOSFET
AO4294	N-Channel 100V Power MOSFET
AO4354	N-Channel MOSFET
AO4407	P-Channel MOSFET
AO4407A	P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

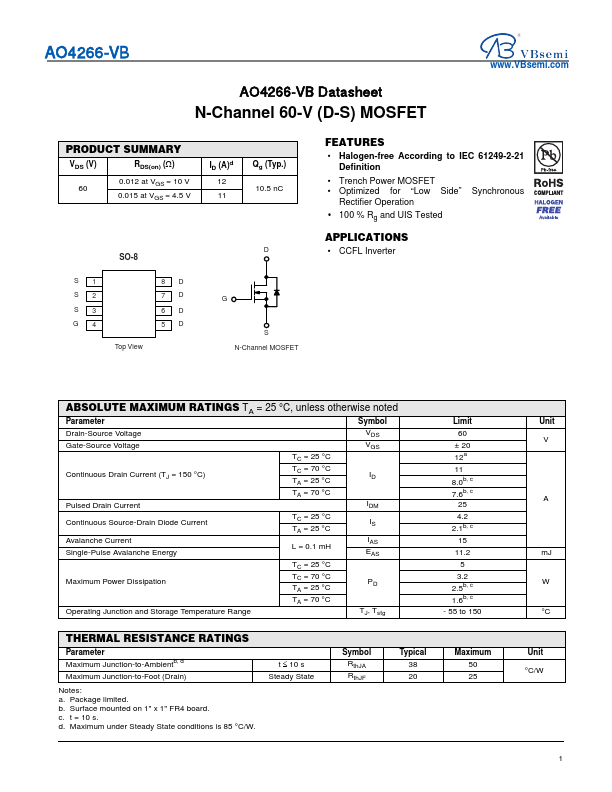

AO4266-VB AO4266-VB Datasheet N-Channel 60-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 60 0.012 at VGS = 10 V 0.015 at VGS = 4.5 V ID (A)d 12 11 Qg (Typ.) 10.
