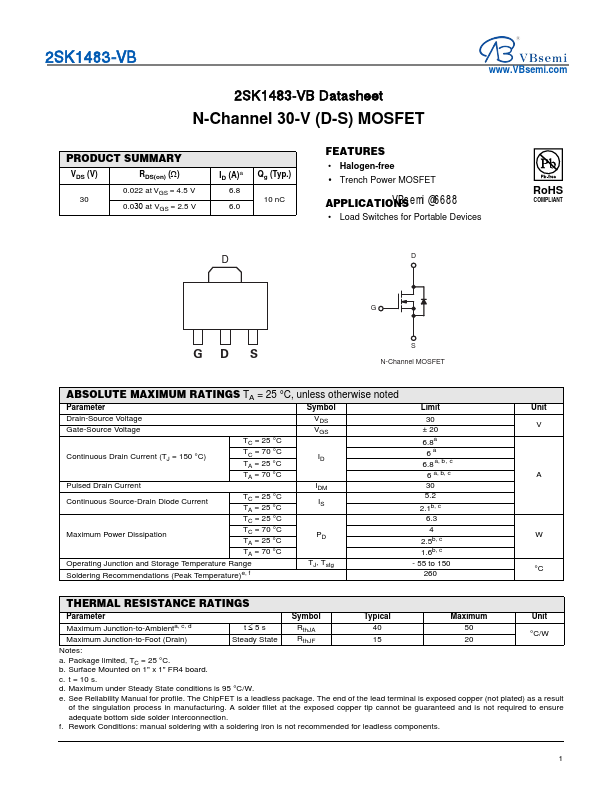

2SK1483-VB
2SK1483-VB Datasheet
N-Channel 30-V (D-S) MOSFET
www.VBsemi.com
PRODUCT SUMMARY
VDS (V)
RDS(on) (Ω)
0.022 at VGS = 4.5 V 30
0.030 at VGS = 2.5 V
ID (A)a 6.8 6.0
Qg (Typ.) 10 nC
FEATURES • Halogen-free • Trench Power MOSFET
APPLICATIOVNBSsemi@6688
• Load Switches for Portable Devices
RoHS
COMPLIANT
D
D
G
GD S
S N-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted
Parameter
Symbol
Limit
Unit
Drain-Source Voltage Gate-Source Voltage
VDS
30
V
VGS
± 20
TC = 25 °C
6.8a
Continuous Drain Current (TJ = 150 °C)
TC = 70 °C TA = 25 °C
ID
6a 6.8 a, b , c
TA = 70 °C
6 a, b, c
A
Pulsed Drain Current
IDM
30
Continuous Source-Drain Diode Current
TC = 25 °C TA = 25 °C
IS
5.2 2.1b, c
TC = 25 °C
6.

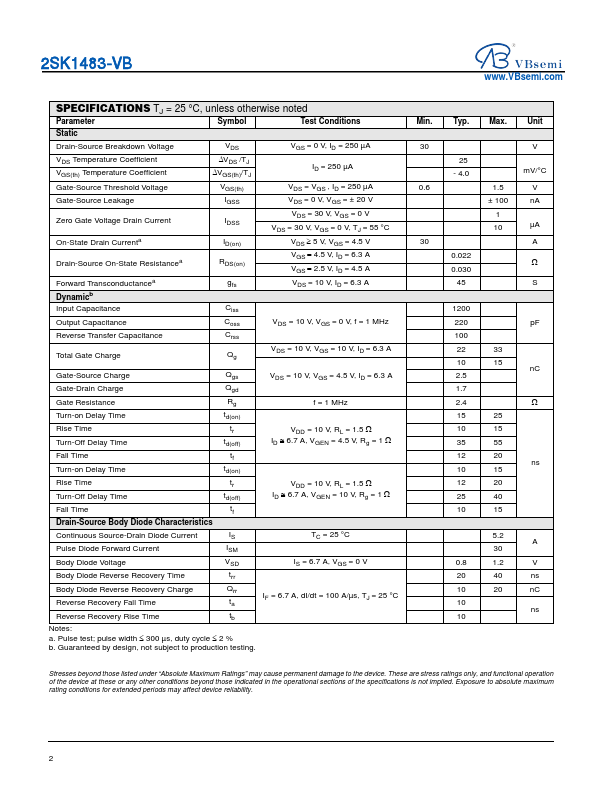

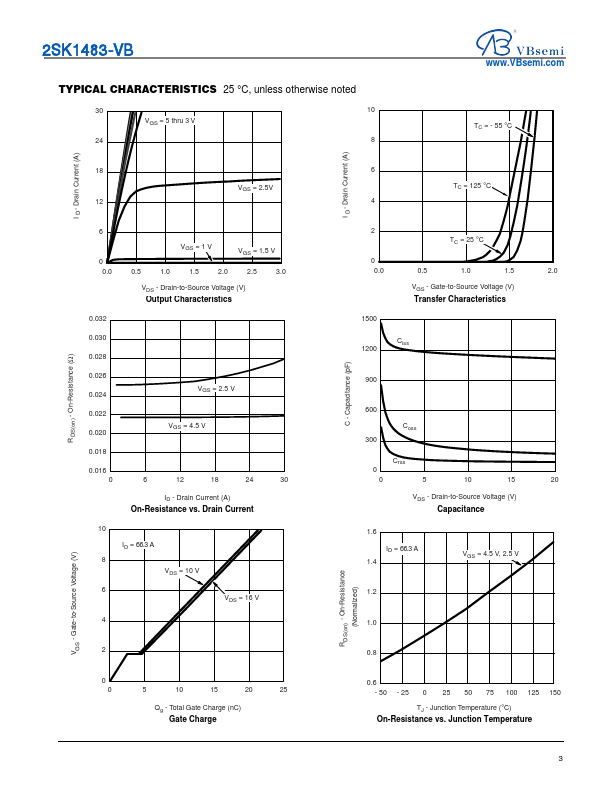

2SK1483 Datasheet
