MBR160 - 1.0A SCHOTTKY BARRIER RECTIFIER

Product Overview

Unisonic Technologies

Datasheet Details

Part number	MBR160
Manufacturer	Unisonic Technologies
File Size	115.69 KB
Description	1.0A SCHOTTKY BARRIER RECTIFIER
Datasheet	MBR160 Datasheet

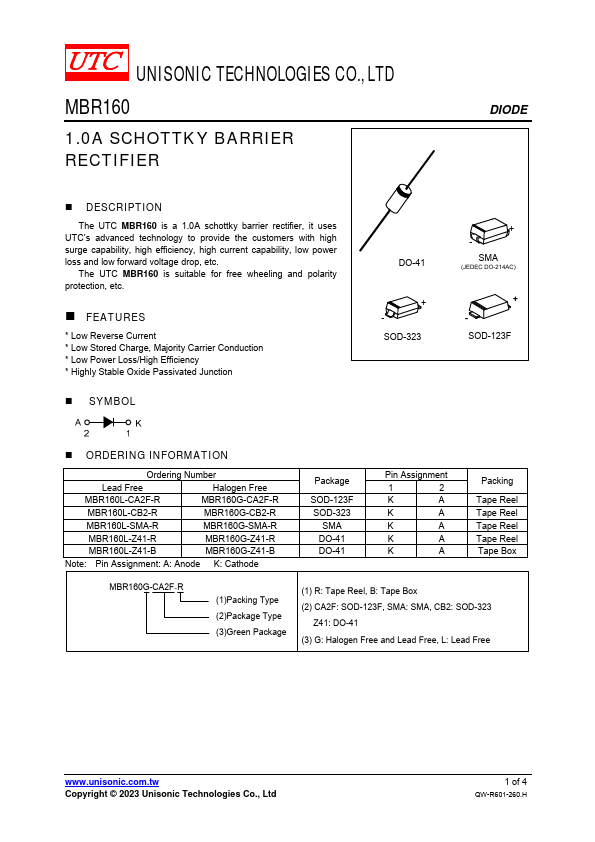

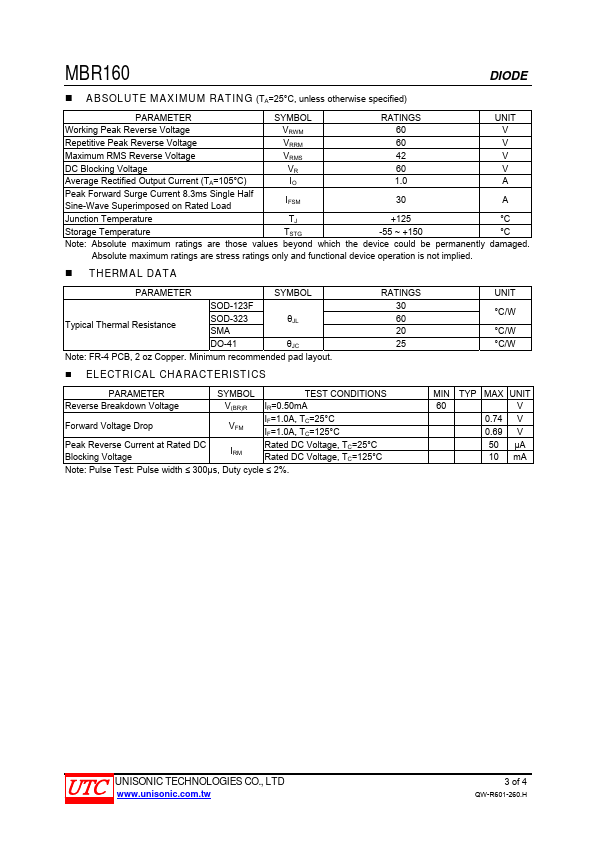

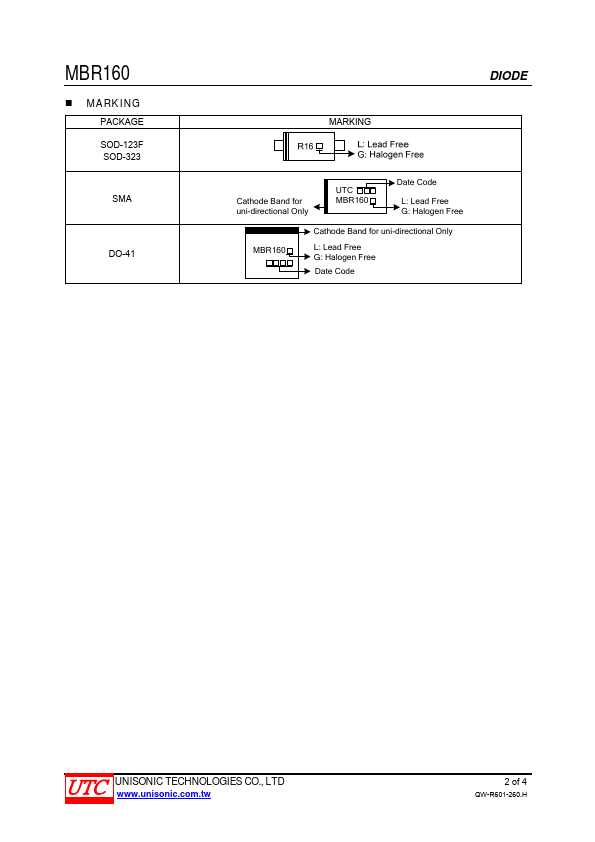

Additional preview pages of the MBR160 datasheet.

Product details

Description

The UTC MBR160 is a 1.0A schottky barrier rectifier, it uses UTC’s advanced technology to provide the customers with high surge capability, high efficiency, high current capability, low power loss and low forward voltage drop, etc.

Features

Low Reverse Current.
Low Stored Charge, Majority Carrier Conduction.
Low Power Loss/High Efficiency.
Highly Stable Oxide Passivated Junction.
SYMBOL DO-41 + - SMA (JEDEC DO-214AC).
