LR28 - Metal Strip Chip Resistors

Product Overview

Part number	LR28
Manufacturer	Uniroyal
File Size	601.56 KB
Description	Metal Strip Chip Resistors
Datasheet	LR28 Datasheet
Note	This datasheet PDF includes multiple part numbers: LR28, LR25. Please refer to the document for exact specifications by model.
Additional preview pages of the LR28 datasheet.

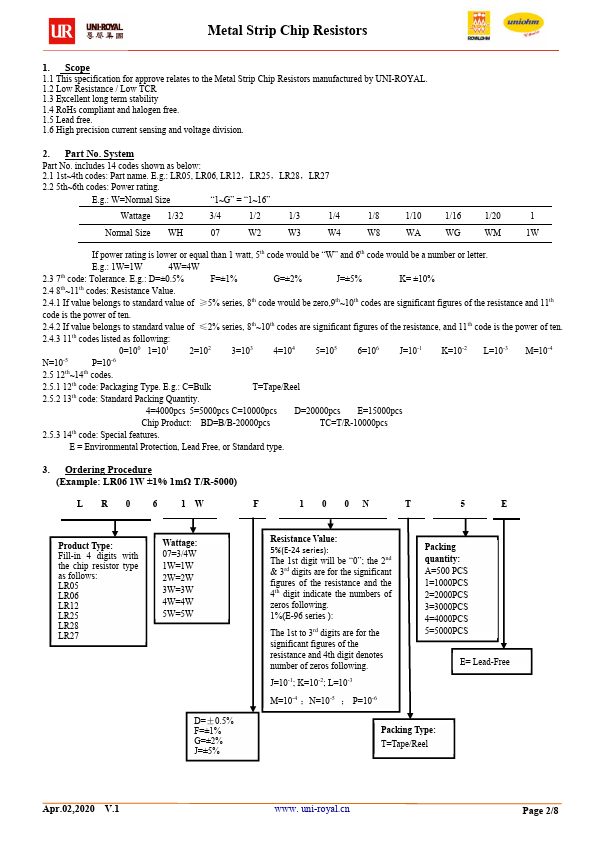

E = Environmental Protection, Lead Free, or Standard type. 3. Ordering Procedure (Example: LR06 1W ±1% 1mΩ T/R-5000) LR0 6 1W F 1 0 0N T 5 E Product Type: Fill-in 4 digits with the chip resistor type as follows: LR05 LR06 LR12 LR25 LR28 LR27 Wattage: 07=3/4W 1W=1W 2W=2W 3W=3W 4W=4W 5W=5W D=±0.5% F=±1% G=±2% J=±5% Resistance Value: 5%(E‐24 series): The 1st digit will be “0”; the 2nd & 3rd digits are for the significant figures of the resistance and the 4th digit indicate the number.
