Datasheet Details
| Part number | MMBTH10 |
|---|---|
| Manufacturer | Unisonic Technologies |
| File Size | 222.16 KB |
| Description | RF TRANSISTOR |
| Download | MMBTH10 Download (PDF) |
|
|
| Part number | MMBTH10 |
|---|---|
| Manufacturer | Unisonic Technologies |
| File Size | 222.16 KB |
| Description | RF TRANSISTOR |
| Download | MMBTH10 Download (PDF) |
|
|
|

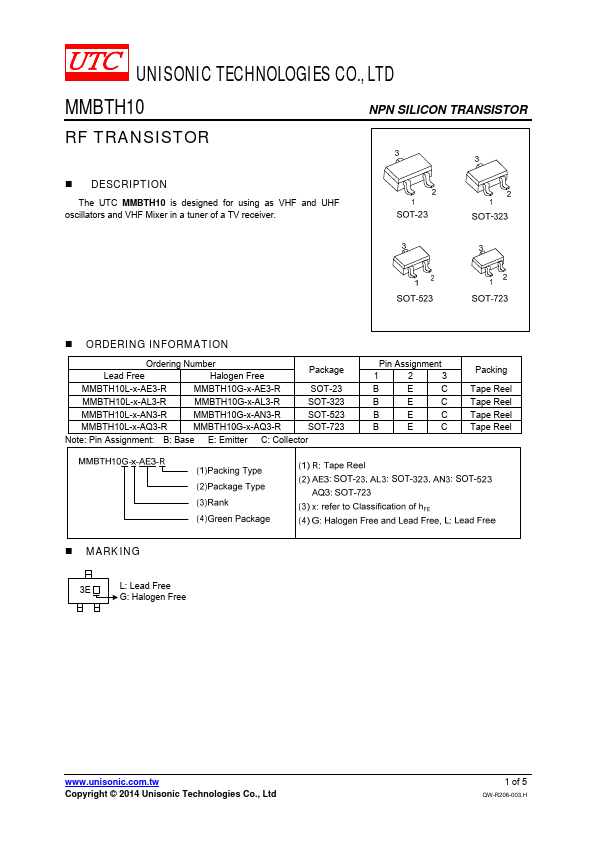

NPN SILICON TRANSISTOR The UTC MMBTH10 is designed for using as VHF and UHF oscillators and VHF Mixer in a tuner of a TV receiver.
*Pb-free plating product number: MMBTH10L ORDERING INFORMATION Package SOT-23 Pin Assignment 1 2 3 E B C Packing Tape Reel Order Number Normal Lead Free Plating MMBTH10-x-AE3-C-R MMBTH10L-x-AE3-C-R MARKING 3E www.unisonic.com.tw Copyright © 2005 Unisonic Technologies Co., Ltd 1 of 5 QW-R206-003,E MMBTH10 ABSOLUTE MAXIMUM RATING (Ta=25℃) SYMBOL VCBO VCEO VEBO PC IC PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Total Power Dissipation Collector current NPN SILICON TRANSISTOR RATINGS 30 25 3 225 50 UNIT V V V mW mA Junction Temperature TJ 150 ℃ Storage Temperature TSTG -55 ~ +150 ℃ Note Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
www.DataSheet4U.com UNISONIC TECHNOLOGIES CO., LTD MMBTH10 RF.
