Datasheet Details
| Part number | 2SD1616A |
|---|---|
| Manufacturer | Unisonic Technologies |
| File Size | 408.05 KB |
| Description | NPN EPITAXIAL SILICON TRANSISTOR |
| Datasheet |
 2SD1616A Datasheet
|
|
|
Download the 2SD1616A datasheet PDF. This datasheet also includes the 2SD1616 variant, as both parts are published together in a single manufacturer document.
| Part number | 2SD1616A |
|---|---|
| Manufacturer | Unisonic Technologies |
| File Size | 408.05 KB |
| Description | NPN EPITAXIAL SILICON TRANSISTOR |
| Datasheet |
2SD1616A Datasheet
|
|
|
|

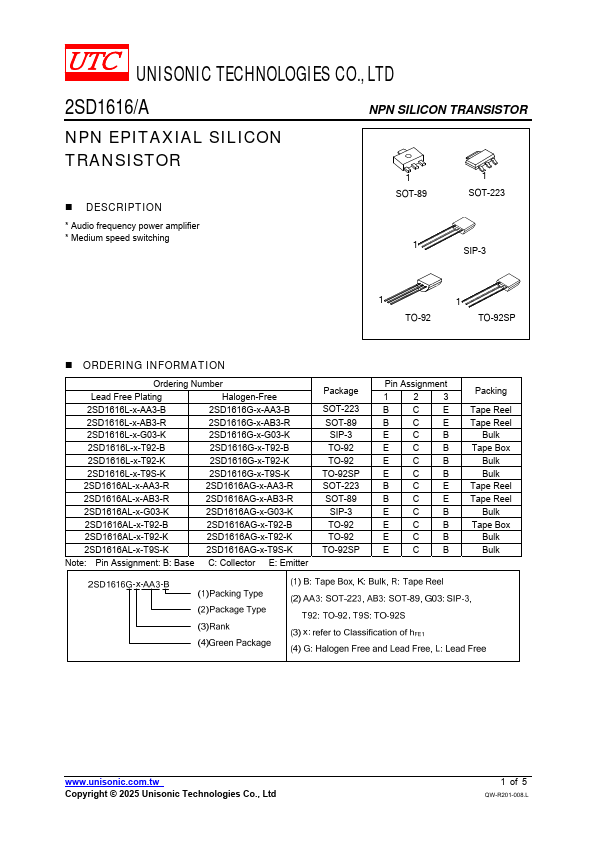

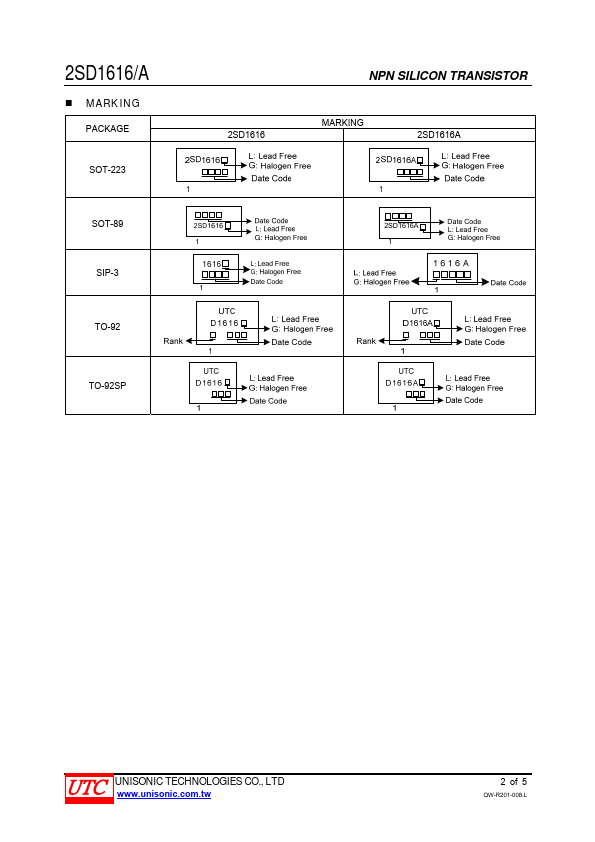

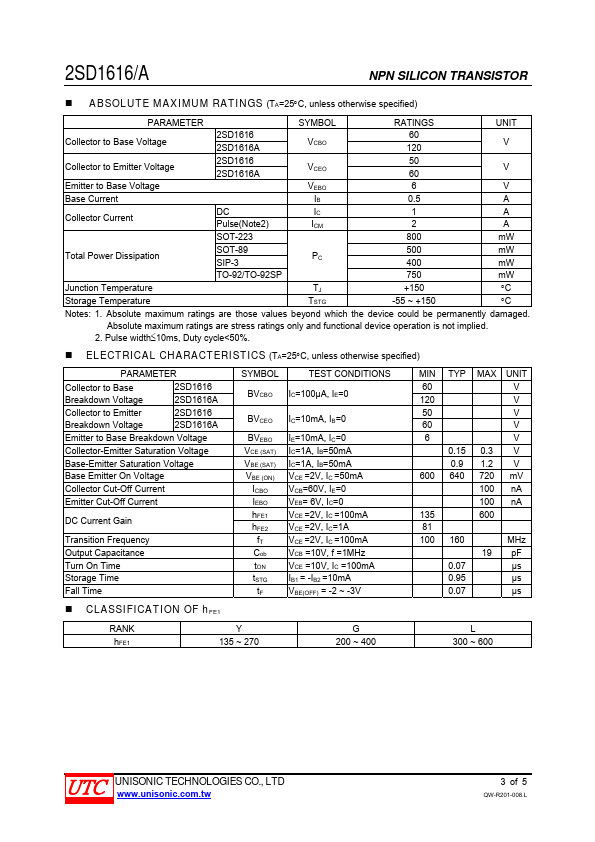

* Audio frequency power amplifier * Medium speed switching 1 SOT-89 1 SOT-223 1 SIP-3 1 TO-92 1 TO-92SP ORDERING INFORMATION Ordering Number Lead Free Plating Halogen-Free 2SD1616L-x-AA3-B 2SD1616G-x-AA3-B 2SD1616L-x-AB3-R 2SD1616G-x-AB3-R 2SD1616L-x-G03-K 2SD1616G-x-G03-K 2SD1616L-x-T92-B 2SD1616G-x-T92-B 2SD1616L-x-T92-K 2SD1616G-x-T92-K 2SD1616L-x-T9S-K 2SD1616G-x-T9S-K 2SD1616AL-x-AA3-R 2SD1616AG-x-AA3-R 2SD1616AL-x-AB3-R 2SD1616AG-x-AB3-R 2SD1616AL-x-G03-K 2SD1616AG-x-G03-K 2SD1616AL-x-T92-B 2SD1616AG-x-T92-B 2SD1616AL-x-T92-K 2SD1616AG-x-T92-K 2SD1616AL-x-T9S-K 2SD1616AG-x-T9S-K Note: Pin Assignment: B: Base C: Collector E: Emitter Package SOT-223 SOT-89 SIP-3 TO-92 TO-92 TO-92SP SOT-223 SOT-89 SIP-3 TO-92 TO-92 TO-92SP Pin Assignment 1 2 3 B C E B C E E C B E C B E C B E C B B C E B C E E C B E C B E C B E C B Packing Tape Reel Tape Reel Bulk Tape Box Bulk Bulk Tape Reel Tape Reel Bulk Tape Box Bulk Bulk www.unisonic.com.tw Copyright © 2025 Unisonic Technologies Co., Ltd 1 of 5 QW-R201-008.L 2SD1616/A MARKING PACKAGE SOT-223 SOT-89 SIP-3 TO-92 TO-92SP 2SD1616 NPN SILICON TRANSISTOR MARKING 2SD1616A 2SD1616A 1 Date Code L: Lead Free G: Halogen Free UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 5 QW-R201-008.L 2SD1616/A NPN SILICON TRANSISTOR ABSOLUTE MAXIMUM RATINGS (TA=25C, unless otherwise specified) PARAMETER SYMBOL RATINGS UNIT Collector to Base Voltage 2SD1616 2SD1616A VCBO 60 120 V Collector to Emitter Voltage 2SD1616 2SD1616A VCEO 50 60 V Emitter to Base Voltage VEBO 6 V Base Current IB 0.5 A Collector Current DC IC Pulse(Note2) ICM 1 A 2 A SOT-223 800 mW Total Power Dissipation SOT-89 SIP-3 PC 500 mW 400 mW TO-92/TO-92SP 750 mW Junction Temperature TJ +150 C Storage Temperature TSTG
UNISONIC TECHNOLOGIES CO., LTD 2SD1616/A NPN SILICON TRANSISTOR NPN EPITAXIAL SILICON.
| Brand Logo | Part Number | Description | Manufacturer |
|---|---|---|---|
 |
2SD1616A | NPN Silicon Transistor | Micro Electronics |
 |
2SD1616A | NPN SILICON EPITAXIAL TRANSISTOR | NEC |
 |
2SD1616A | NPN Transistors | Weitron Technology |
 |
2SD1616A | NPN Silicon Epitaxial Planar Transistor | GME |
 |
2SD1616A | NPN Transistor | SeCoS |
