2SC4672 - LOW FREQUENCY TRANSISTOR

General Description

The UTC 2SC4672 is a low frequency transistor.

current gain characteristics.

Key Features

  • S.
  • Low Saturation Voltage, Typically VCE(SAT)=0.1V at IC / IB=1A / 50mA.
  • Excellent DC Current Gain Characteristics 1 SOT-89.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SC4672 Low Frequency Transistor GME
2SC4672 Low Frequency Transistor Rohm
2SC4672 Silicon NPN transistor BLUE ROCKET ELECTRONICS
2SC4672 NPN EPITAXIAL PLANAR TRANSISTOR WEITRON
2SC4672 Low Frequency Transistor Kexin

Other Datasheets by Unisonic Technologies

Part Number Description
2SC4617 NPN Transistor
2SC4027 NPN SILICON TRANSISTOR
2SC4226 NPN TRANSISTOR
2SC4242 SWITCHMODE SERIES NPN POWER TRANSISTORS
2SC4548 NPN SILICON TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

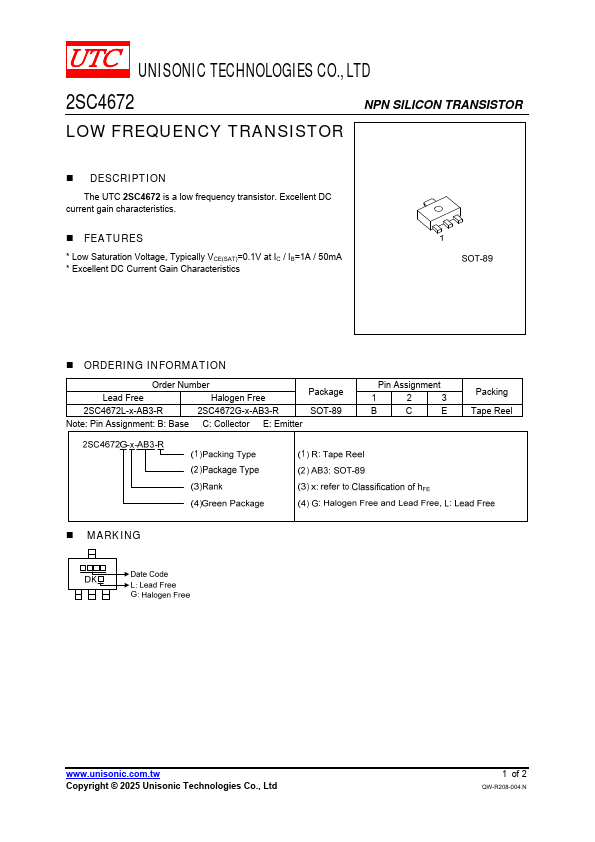

UNISONIC TECHNOLOGIES CO., LTD 2SC4672 NPN SILICON TRANSISTOR LOW FREQUENCY TRANSISTOR  DESCRIPTION The UTC 2SC4672 is a low frequency transistor. Excellent DC current gain characteristics.  FEATURES *Low Saturation Voltage, Typically VCE(SAT)=0.1V at IC / IB=1A / 50mA *Excellent DC Current Gain Characteristics 1 SOT-89  ORDERING INFORMATION Order Number Lead Free Halogen Free 2SC4672L-x-AB3-R 2SC4672G-x-AB3-R Note: Pin Assignment: B: Base C: Collector E: Emitter Package SOT-89 Pin Assignment 1 2 3 BCE Packing Tape Reel  MARKING www.unisonic.com.tw Copyright © 2022 Unisonic Technologies Co., Ltd 1 of 2 QW-R208-004.
