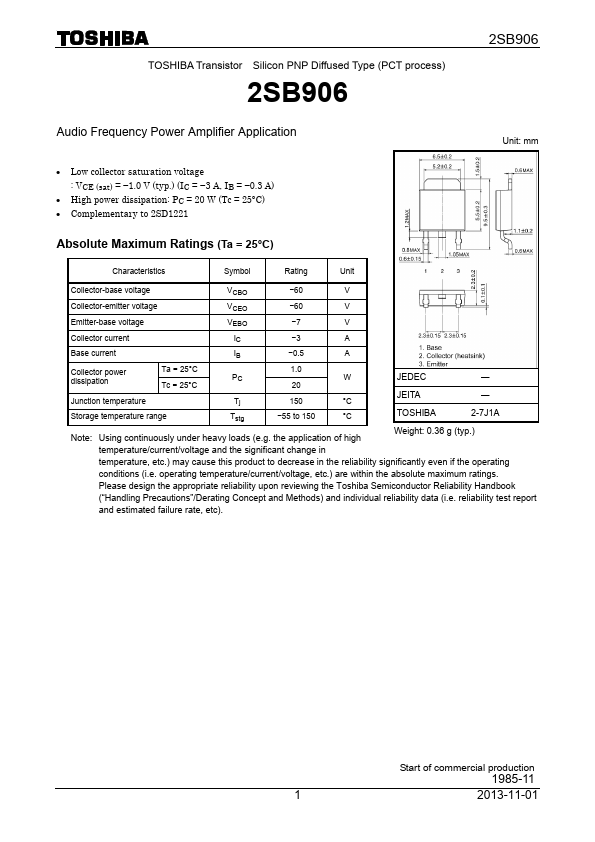

TOSHIBA Transistor Silicon PNP Diffused Type (PCT process)
2SB906
2SB906
Audio Frequency Power Amplifier Application
Unit: mm
• Low collector saturation voltage : VCE (sat) = −1.0 V (typ.) (IC = −3 A, IB = −0.3 A)
• High power dissipation: PC = 20 W (Tc = 25°C) • Complementary to 2SD1221
Absolute Maximum Ratings (Ta = 25°C)
Characteristics
Symbol
Rating
Unit
Collector-base voltage
VCBO
−60
V
Collector-emitter voltage
VCEO
−60
V
Emitter-base voltage
VEBO
−7
V
Collector current
IC
−3
A
Base current
IB
−0.5
A
Collector power dissipation
Ta = 25°C Tc = 25°C
PC
1.0 W
20
Junction temperature
Tj
150
°C
Storage temperature range
Tstg
−55 to 150
°C
JEDEC JEITA TOSHIBA
― ― 2-7J1A
Note: Using continuously under heavy loads (e.g.
