2SA1483 - Silicon PNP Epitaxial Type Transistor

Toshiba

Datasheet Details

Part number	2SA1483
Manufacturer	Toshiba
File Size	171.06 KB
Description	Silicon PNP Epitaxial Type Transistor
Datasheet	2SA1483 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SA1483	Transistor	Kexin
2SA1480	PNP/NPN Epitaxial Planar Silicon Transistors	Sanyo Semicon Device
2SA1480	Silicon PNP transistor	BLUE ROCKET ELECTRONICS
2SA1481	PNP/NPN Epitaxial Planar Silicon Transistors	Sanyo Semicon Device
2SA1484	Silicon PNP Transistor	Hitachi Semiconductor

Other Datasheets by Toshiba

Part Number	Description
2SA1408	Silicon PNP Epitaxial Type Transistor
2SA1425	Silicon PNP Epitaxial Type Transistor
2SA1428	Silicon PNP Epitaxial Type Transistor
2SA1429	Silicon PNP Epitaxial Type Transistor
2SA1430	Silicon PNP Epitaxial Type Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

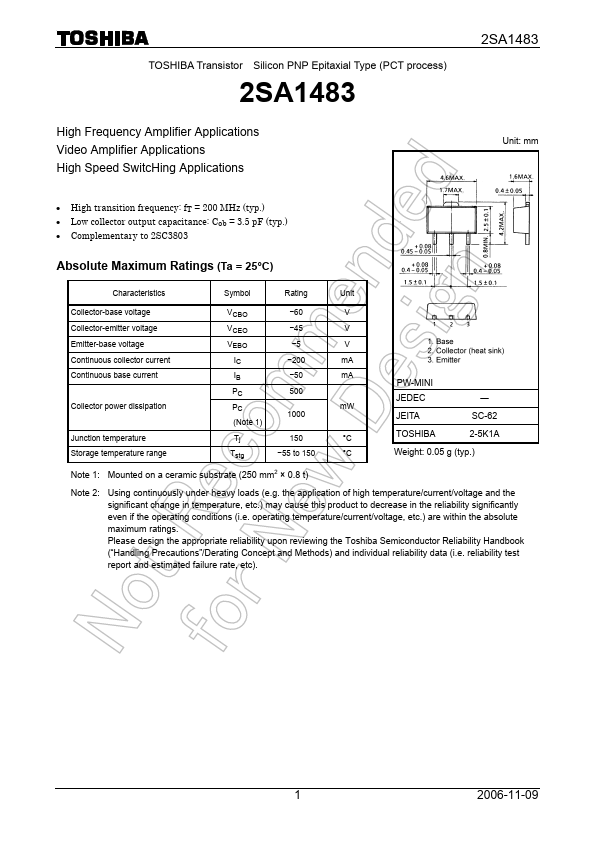

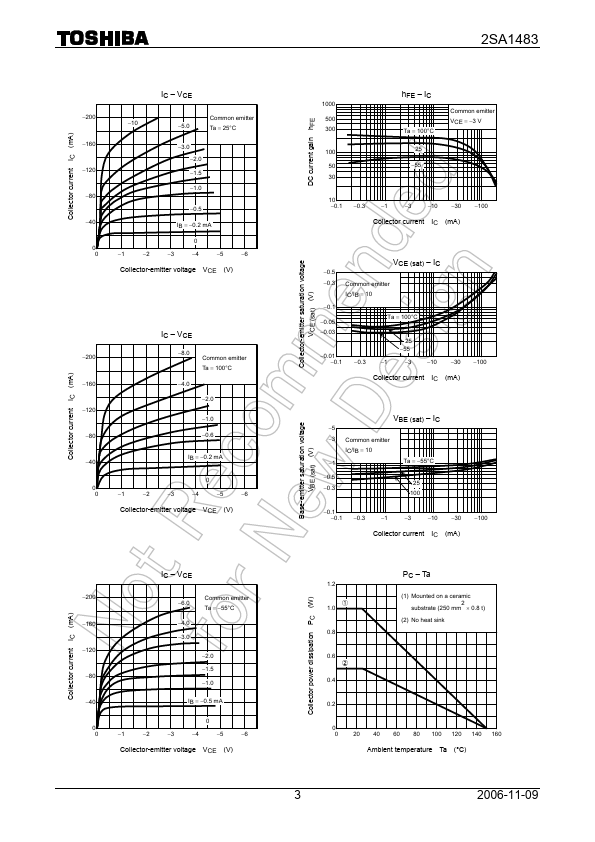

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process) 2SA1483 High Frequency Amplifier Applications Video Amplifier Applications High Speed SwitcHing Applications 2SA1483 Unit: mm • High transition frequency: fT = 200 MHz (typ.) • Low collector output capacitance: Cob = 3.5 pF (typ.) • Complementary to 2SC3803 Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage Collector-emitter voltage Emitter-base voltage Continuous collector current Continuous base current Collector power dissipation Junction temperature Storage temperature range VCBO −60 V VCEO −45 V VEBO −5 V IC −200 mA IB −50 mA PC 500 PC mW 1000 (Note 1) Tj 150 °C Tstg −55 to 150 °C PW-MINI JEDEC ― JEITA SC-62 TOSHIBA 2-5K1A Weight: 0.
