XC9291 - 600mA Step-Down DC/DC Converters

Download the XC9291 datasheet PDF. This datasheet also covers the XC9290 variant, as both devices belong to the same 600ma step-down dc/dc converters family and are provided as variant models within a single manufacturer datasheet.

Description

☆Green Operation Compatible The XC9290/XC9291 series are 600mA synchronous rectification DC/DC converters adopting HiSAT-COT (

) control.

increasing the oscillation frequency to high frequency, coil with a size of 0.8 x 0.45 mm can be used.

Features

  • put Voltage Range Output Voltage Range Output Current Quiescent Current Oscillation Frequency Efficiency (fOSC=4MHz) Control Methods Protection Functions Functions Input / Output Capacitor Operating Ambient Temperature Package Environmentally : 2.5V ~ 6.0V : 0.7V ~ 3.6V (±2.0%) : 600mA : 11μA : 4MHz, 6MHz : 90.0% (VIN=3.7V,VOUT=1.8V,IOUT=200mA) : HiSAT-COT Control PWM Control (XC9290) PWM/PFM Auto (XC9291) : Current Limit : Soft-Start, UVLO CL Discharge (Type B) : Ceramic Capacitor : -40℃ ~ 105.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (XC9290-Torex.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
XC9201 PWM Controlled Step-Down DC/DC Converters Torex Semiconductor
XC9206 PWM/PFM Switchable Step-Down DC/DC Converters Torex Semiconductor
XC9207 PWM/PFM Switchable Step-Down DC/DC Converters Torex Semiconductor
XC9208 PWM/PFM Switchable Step-Down DC/DC Converters Torex Semiconductor
XC9210 Synchronous Step-Down DC/DC Controller Torex Semiconductor

Other Datasheets by Torex Semiconductor

Part Number Description
XC9290 600mA Step-Down DC/DC Converters
XC9242 2A Synchronous Step-Down DC/DC Converter
XC9243 2A Synchronous Step-Down DC/DC Converter
XC9244 Step-Down DC/DC Converter
XC9245 Step-Down DC/DC Converter

Full PDF Text Transcription

Click to expand full text

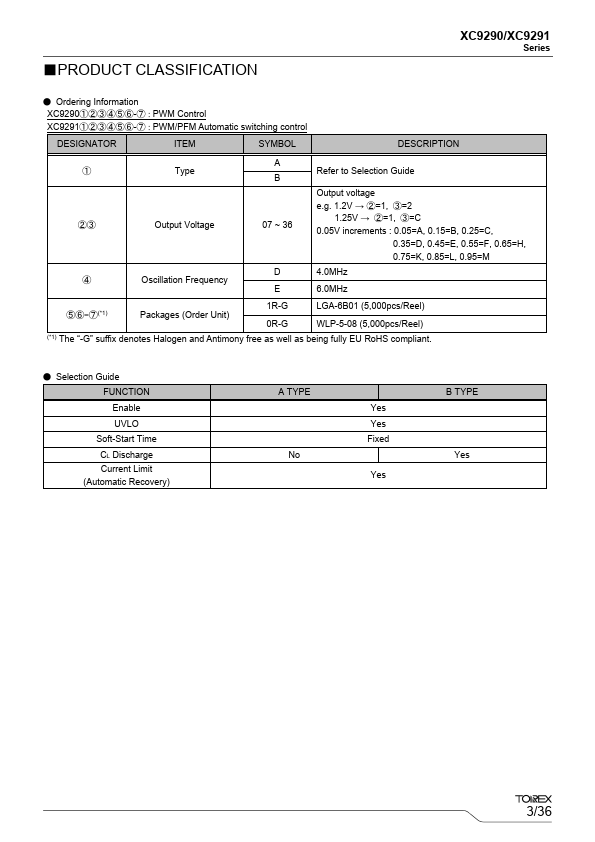

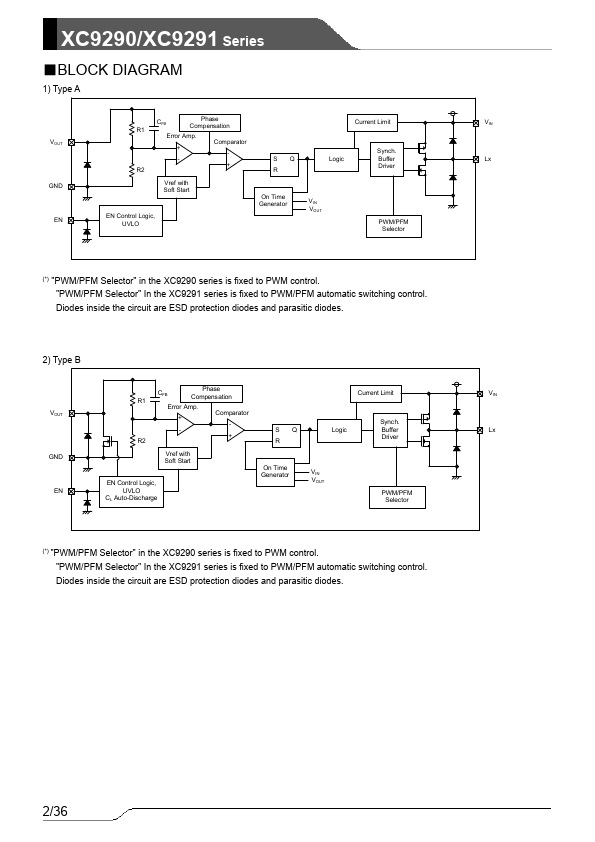

XC9290/XC9291 Series ETR05089-001d HiSAT-COT ® Control Extremely Small 600mA Step-Down DC/DC Converters ■GENERAL DESCRIPTION ☆Green Operation Compatible The XC9290/XC9291 series are 600mA synchronous rectification DC/DC converters adopting HiSAT-COT (*) control. Due to increasing the oscillation frequency to high frequency, coil with a size of 0.8 x 0.45 mm can be used. A 0.6 x 0.3 mm ceramic capacitor can be used for the input capacitance (CIN) and the output capacitance (CL), realizing that the mounting area including peripheral components can be reduced to 3.15 mm2. Due to increasing the oscillation frequency to a high frequency, the mounting area is reduced.
