XC9220 - Step-Down DC/DC Controller

Description

The XC9220/XC9221 series is a group of multi-purpose step-down DC/DC controller ICs.

The ICs enable a high efficiency, stable power supply with an output current up to 3A to be configured using only a transistor, a coil, a diode, and two capacitors connected externally.

Features

  • Operating Voltage Range : 2.8V ~ 16.0V Output Voltage Externally Set Range : 1.2V or more (VFB=0.9V+1.5%) Output Current : Less than 3.0A Oscillation Frequency : 300kHz, 500kHz, and 1.0MHz Control Methods : PWM control (XC9220) PWM/PFM automatic switching (XC9221) Soft-Start Function : 4ms, internally set (XC9220/XC9221A, 500kHz) Protection Circuits Externally set (XC9220/XC9221B) : Integral protection (1.0 ms) (XC9220/XC9221 Aand B series) Short-circuit protection Low ESR Capac.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XC9242 2A Synchronous Step-Down DC/DC Converter Torex
XC9243 2A Synchronous Step-Down DC/DC Converter Torex
XC9244 Step-Down DC/DC Converter Torex
XC9245 Step-Down DC/DC Converter Torex
XC9260 Step-Down DC/DC Converter Torex

Other Datasheets by Torex Semiconductor

Part Number Description
XC9221 Step-Down DC/DC Controller
XC9223 Step-Down DC/DC Converter
XC9224 Step-Down DC/DC Converter
XC9225 Synchronous Step-Down DC/DC Converters
XC9226 Synchronous Step-Down DC/DC Converters

Full PDF Text Transcription

Click to expand full text

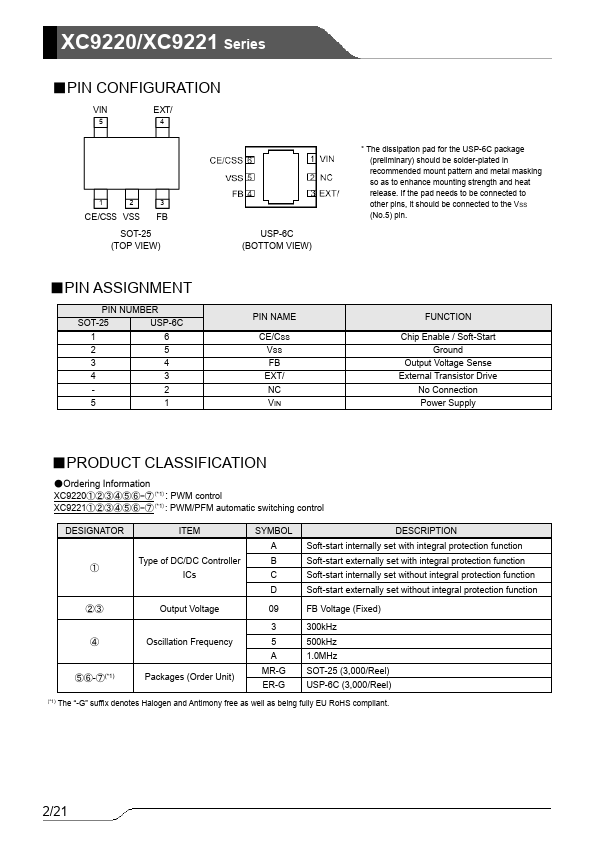

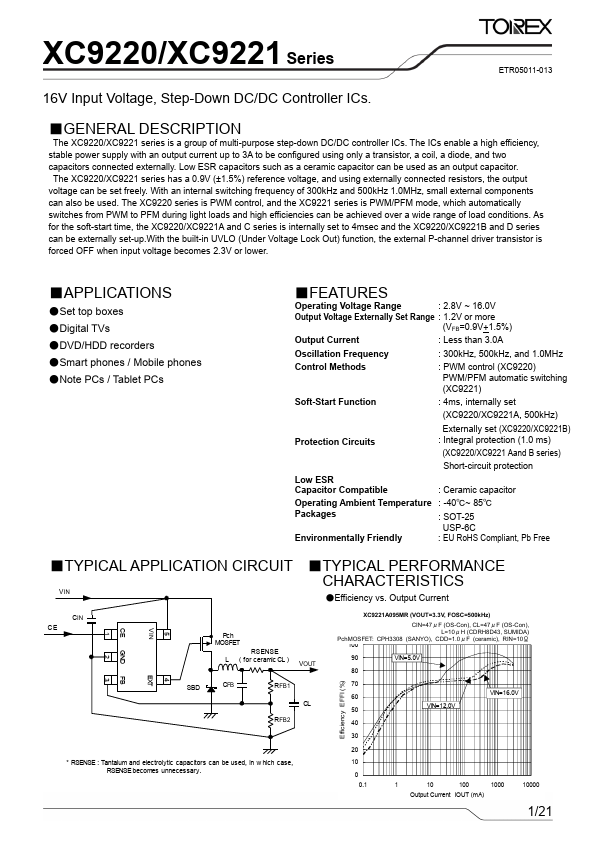

XC9220/XC9221 Series 16V Input Voltage, Step-Down DC/DC Controller ICs. ETR0511-012 ˙GENERAL DESCRIPTION The XC9220/XC9221 series is a group of multi-purpose step-down DC/DC controller ICs. The ICs enable a high efficiency, stable power supply with an output current up to 3A to be configured using only a transistor, a coil, a diode, and two capacitors connected externally. Low ESR capacitors such as a ceramic capacitor can be used as an output capacitor. The XC9220/XC9221 series has a 0.9V (±1.5%) reference voltage, and using externally connected resistors, the output voltage can be set freely. With an internal switching frequency of 300kHz and 500kHz 1.0MHz, small external components can also be used.
