XC6603 - High Speed LDO Regulator

Description

The XC6603 series is a low voltage input (0.5V) operation and provides high accuracy ±15mV / ±20mV and can supply large current efficiently due to its ultra low on-resistance even at low output voltages.

Features

  • um Output Current ON Resistance Bias Voltage Range Input Voltage Range Output Voltage Range Output Voltage Accuracy Ripple Rejection Low Power Consumption Stand-by Current Under-voltage Lockout Thermal Shutdown Protection Circuit Function Output Capacitor Operating Ambient Temperature Packages Environmentally Friendly : 1A (1.3A Limit) : 0.15Ω＠VBIAS=3.6V, VOUT=1.2V : 2.5V～6.0V : 0.5V～3.0V : 0.5V～1.8V (0.1V increments) : ±0.015V＠VOUT＜1.2V ±0.020V＠VOUT≧1.2V : 60dB＠f=1kHz (VBIAS_PSRR) 75dB＠f=1kHz.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XC610 high performance and highly integrated SoC XinChip
XC6119 Voltage Detector Torex
XC6126 Single Voltage Detector Torex
XC6127 Ultra Small Voltage Detector Torex
XC6129 Voltage Detector Torex

Other Datasheets by Torex Semiconductor

Part Number Description
XC6601 Low Voltage Input LDO Voltage Regulators
XC6602 High Speed LDO Regulator
XC6604 High Speed LDO Regulator
XC66D Positive Voltage Regulators
XC6101 Voltage Detector

Full PDF Text Transcription

Click to expand full text

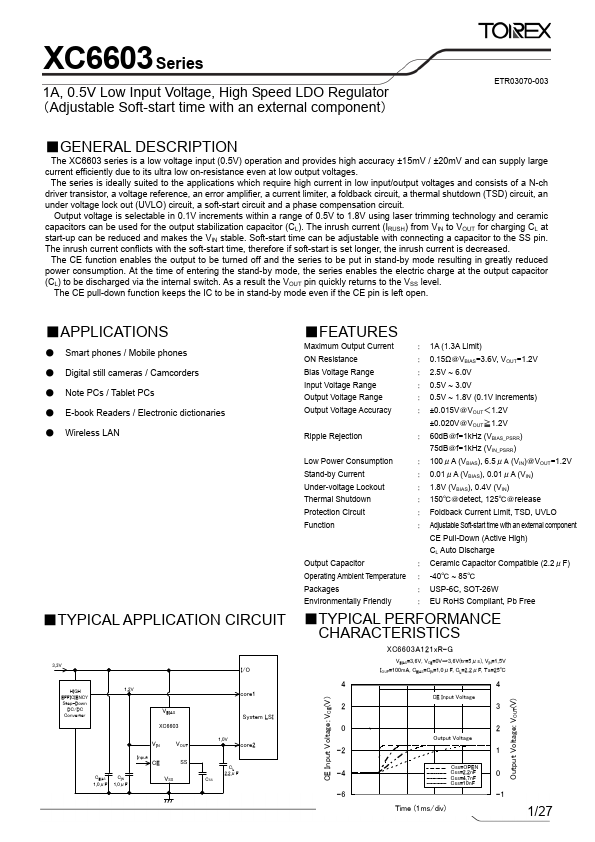

XC6603 Series ETR03070-002 1A, 0.5V Low Input Voltage, High Speed LDO Regulator （Adjustable Soft-start time with an external component） ■GENERAL DESCRIPTION The XC6603 series is a low voltage input (0.5V) operation and provides high accuracy ±15mV / ±20mV and can supply large current efficiently due to its ultra low on-resistance even at low output voltages. The series is ideally suited to the applications which require high current in low input/output voltages and consists of a N-ch driver transistor, a voltage reference, an error amplifier, a current limiter, a foldback circuit, a thermal shutdown (TSD) circuit, an under voltage lock out (UVLO) circuit, a soft-start circuit and a phase compensation circuit. Output voltage is selectable in 0.1V increments within a range of 0.5V to 1.
