XC6217 - LDO Voltage Regulator

Product Overview

Torex Semiconductor

Datasheet Details

Part number	XC6217
Manufacturer	Torex Semiconductor
File Size	679.34 KB
Description	LDO Voltage Regulator
Datasheet	XC6217 Datasheet

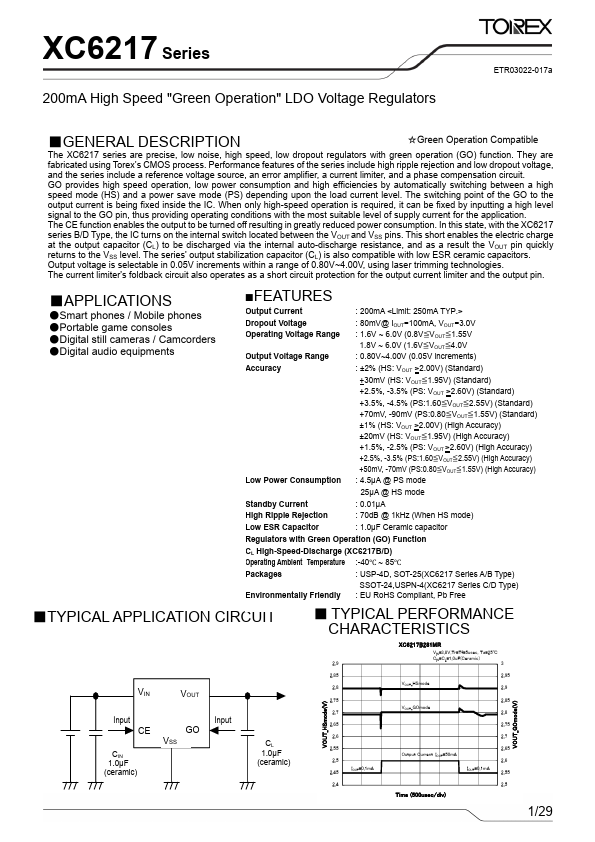

Additional preview pages of the XC6217 datasheet.

Product details

Description

☆GreenOperation Compatible The XC6217 series are precise, low noise, high speed, low dropout regulators with green operation (GO) function.They are fabricated using Torex’s CMOS process.Performance

Features

put Current Dropout Voltage Operating Voltage Range Output Voltage Range Accuracy Low Power Consumption Standby Current High Ripple Rejection Low ESR Capacitor : 200mA : 80mV@ IOUT=100mA, VOUT=3.0V : 1.6V ~ 6.0V (0.8V≦VOUT≦1.55V 1.8V ~ 6.0V (1.6V≦VOUT≦4.0V : 0.80V~4.00V (0.05V increments) : +2% (HS: VOUT >2.00V) (Standard) +30mV (HS: VOUT≦1.95V) (Standard) +2.5%, -3.5% (PS: VOUT >2.60V) (Standard) +3.5%, -4.5% (PS:1.60≦VOUT≦2.55V) (Standard) +70mV, -90mV (PS:0.80≦VOUT≦1.55V).
