XBP1013 - TVS Diode

Features

Terminal Capacitance ESD Protection Environmentally Friendly : 300pF : 25kV : EU RoHS Compliant, Pb Free ETR29012-001.

Torex Semiconductor

Datasheet Details

Part number	XBP1013
Manufacturer	Torex Semiconductor
File Size	174.27 KB
Description	TVS Diode
Datasheet	XBP1013 Datasheet
Additional preview pages of the XBP1013 datasheet.

📁 Similar Datasheet

XBP141P-G - Low Capacitance TVS Diode Array (Torex)
XBP-1 - Cell Signal (MSD)
XBP06V0U25R-G - Low Capacitance TVS Diode (Torex)

Other Datasheets by Torex Semiconductor

XBP1010 - TVS Diode
XBP1011 - TVS Diode
XBP1012 - TVS Diode
XBP1001 - TVS Diode
XBP1002 - TVS Diode
XBP1004 - TVS Diode
XBP1006 - TVS Diode
XBP1007 - TVS Diode

Full PDF Text Transcription

Click to expand full text

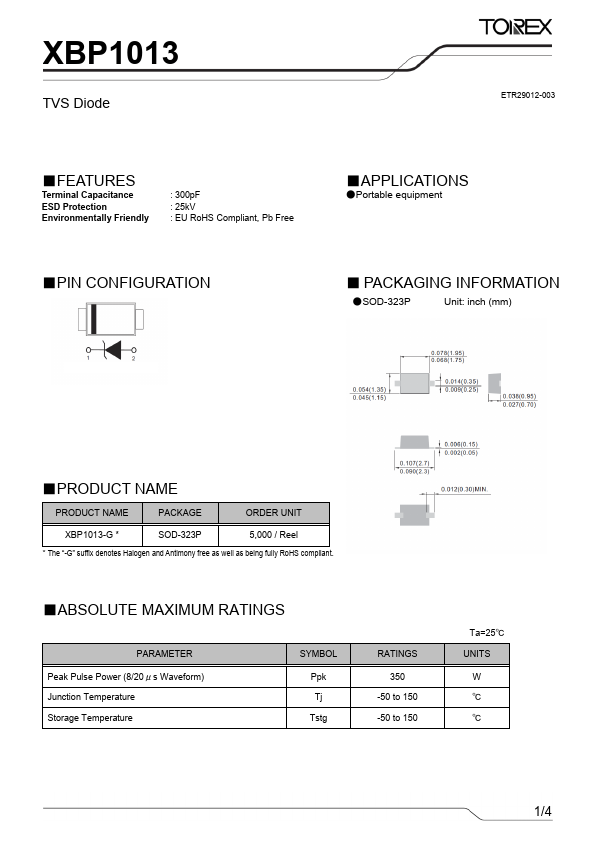

XBP1013 TVS Diode ■FEATURES Terminal Capacitance ESD Protection Environmentally Friendly : 300pF : 25kV : EU RoHS Compliant, Pb Free ETR29012-001 ■APPLICATIONS ●Portable equipment ■PIN CONFIGURATION ■ PACKAGING INFORMATION ●SOD-323P Unit: inch (mm) ■PRODUCT NAME PRODUCT NAME PACKAGE ORDER UNIT XBP1013-G * SOD-323P 5,000 / Reel * The “-G” suffix denotes Halogen and Antimony free as well as being fully RoHS compliant.

Published: May 3, 2016 |
