XC9148 - 1.4A Step-up DC/DC Converters

Download the XC9148 datasheet PDF. This datasheet also covers the XC9147 variant, as both devices belong to the same 1.4a step-up dc/dc converters family and are provided as variant models within a single manufacturer datasheet.

Description

Pch switching FET built-in.

metal hydride battery.

Features

  • put Voltage Range : 0.65V ~ 6.0V (Operation start voltage : 0.9V) Fixed Output Voltage : 1.8V ~ 5.5V (A,B,C type) : 2.2V ~ 5.5V (except A,B,C type) Oscillation Frequency : 1.2MHz, 3.0MHz Output Current Control Mode Selection : 750mA @VOUT=5.0V, VBAT=3.3V 500mA @VOUT=3.3V, VBAT=1.8V : PWM (XC9147) PWM/PFM (XC9148) Load Transient Response Protection Function : 100mV@VOUT=3.3V, VBAT=1.8V, fosc=3.0MHz IOUT=1mA→200mA (tr=5μs) : Thermal shutdown Current limit Integral latch method (D/E/F/.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (XC9147-TOREX.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
XC9141 0.8A Step-up DC/DC Converters Torex Semiconductor
XC9142 0.8A Step-up DC/DC Converters Torex Semiconductor
XC9101 PWM Controlled Step-Up DC/DC Controller Torex Semiconductor
XC9103 Step-up DC/DC Controllers Torex Semiconductor
XC9104 Step-up DC/DC Controllers Torex Semiconductor

Other Datasheets by Torex Semiconductor

Part Number Description
XC9140 Step-Up Synchronous PFM DC/DC Converter
XC9140A Step-UpSynchronous PFM DC/DC Converter
XC9140B Step-UpSynchronous PFM DC/DC Converter
XC9140C Step-UpSynchronous PFM DC/DC Converter
XC9145 PWM/PFM Step-up DC/DC Converters

Full PDF Text Transcription

Click to expand full text

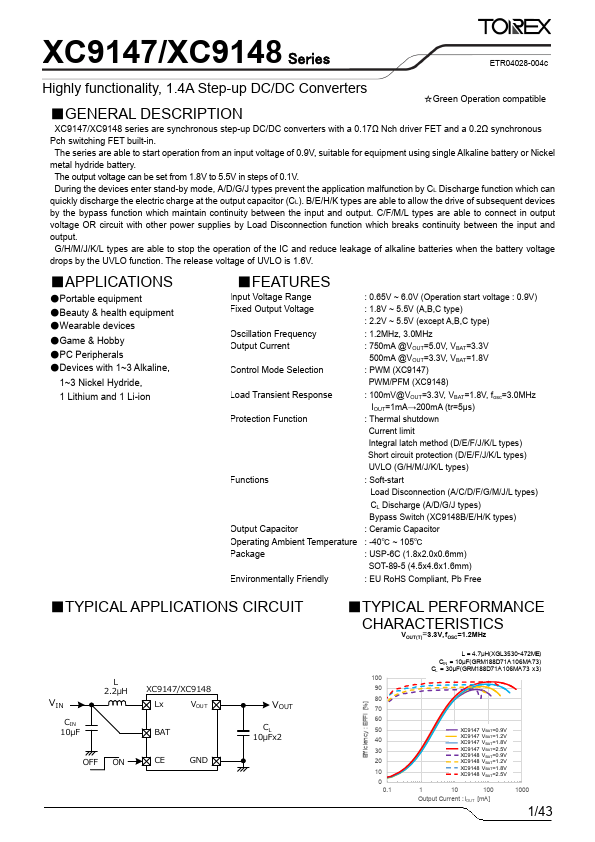

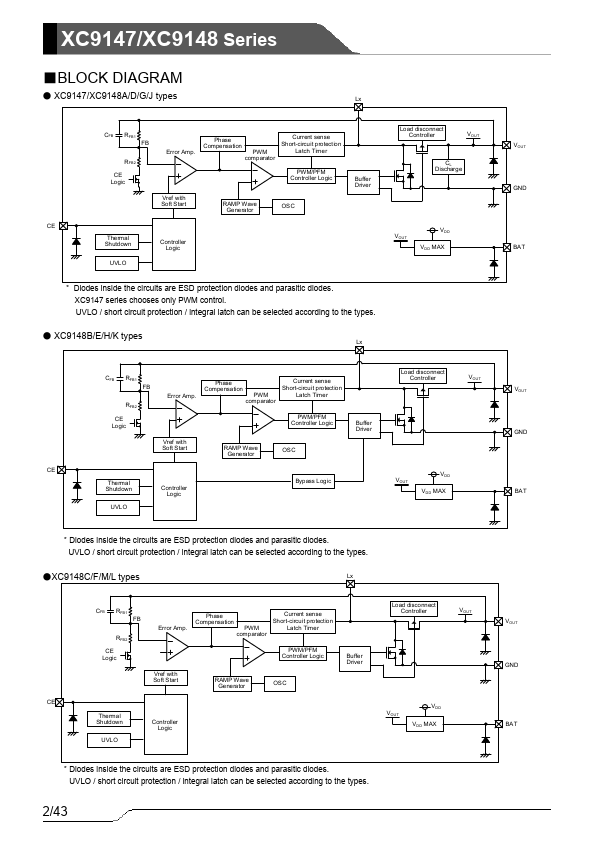

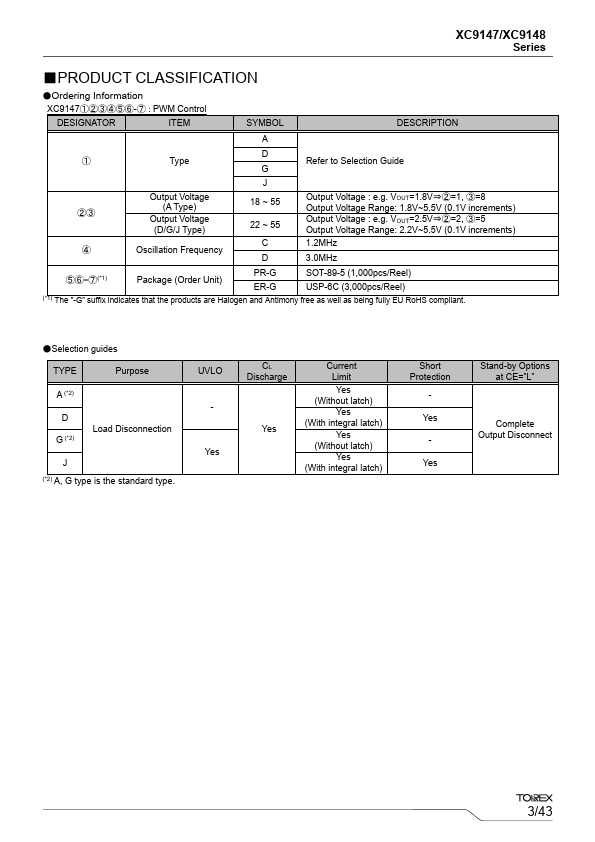

XC9147/XC9148 Series ETR04028-004b Highly functionality, 1.4A Step-up DC/DC Converters ☆Green Operation compatible ■GENERAL DESCRIPTION XC9147/XC9148 series are synchronous step-up DC/DC converters with a 0.17Ω Nch driver FET and a 0.2Ω synchronous Pch switching FET built-in. The series are able to start operation from an input voltage of 0.9V, suitable for equipment using single Alkaline battery or Nickel metal hydride battery. The output voltage can be set from 1.8V to 5.5V in steps of 0.1V. During the devices enter stand-by mode, A/D/G/J types prevent the application malfunction by CL Discharge function which can quickly discharge the electric charge at the output capacitor (CL).
