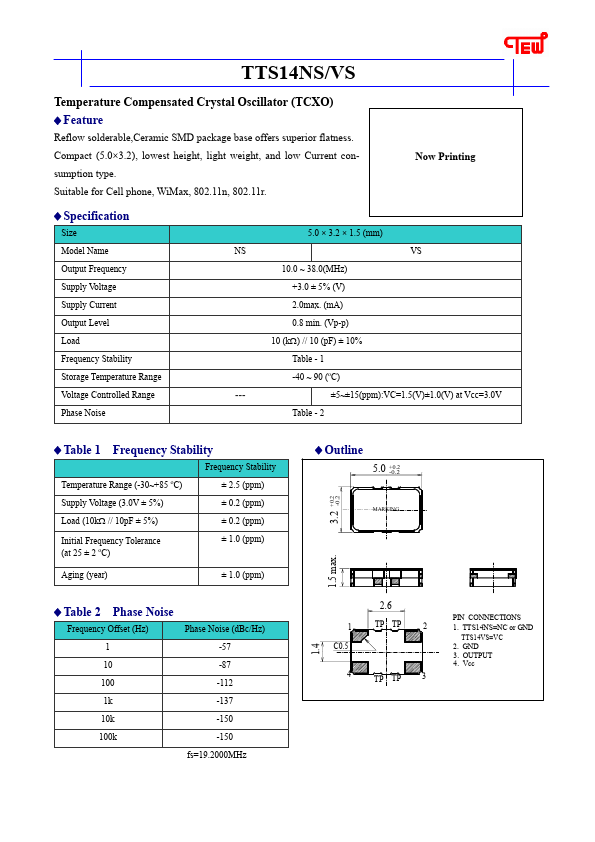

TTS14NS/VS
Temperature Compensated Crystal Oscillator (TCXO)
♦Feature
Reflow solderable,Ceramic SMD package base offers superior flatness. Compact (5.0×3.2), lowest height, light weight, and low Current consumption type. Suitable for Cell phone, WiMax, 802.11n, 802.11r.
Now Printing
♦Specification
Size
5.0 × 3.2 × 1.5 (mm)
Model Name
NS
VS
Output Frequency
10.0 ~ 38.0(MHz)
Supply Voltage
+3.0 ± 5% (V)
Supply Current
2.0max. (mA)
Output Level Load
0.8 min. (Vp-p) 10 (kΩ) // 10 (pF) ± 10%
Frequency Stability Storage Temperature Range Voltage Controlled Range
Table - 1
-40 ~ 90 (oC)
---
±5~±15(ppm):VC=1.5(V)±1.0(V) at Vcc=3.0V
Phase Noise
Table - 2
♦Table 1 Frequency Stability
Temperature Range (-30~+85 oC)
Frequency Stability ± 2.5 (ppm)
Supply Voltage (3.
