IAM-20685 - Automotive 6-axis MotionTracking MEMS Device

Product Overview

TDK

📥 Download Datasheet

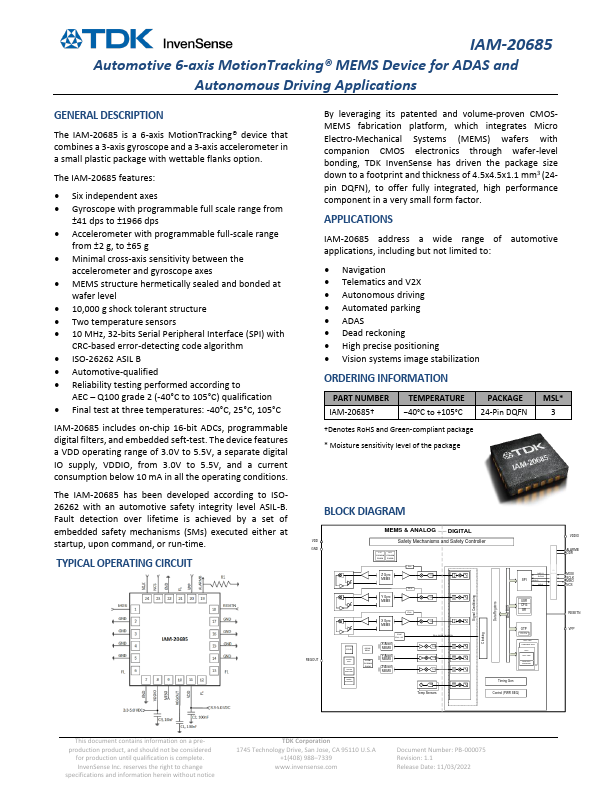

IAM-20685 Automotive 6-axis MotionTracking MEMS Device by TDK - Datasheet Preview — Datasheet preview – IAM-20685

Datasheet Details

Part number	IAM-20685
Manufacturer	TDK
File Size	250.38 KB
Description	Automotive 6-axis MotionTracking MEMS Device
Datasheet	IAM-20685 Datasheet

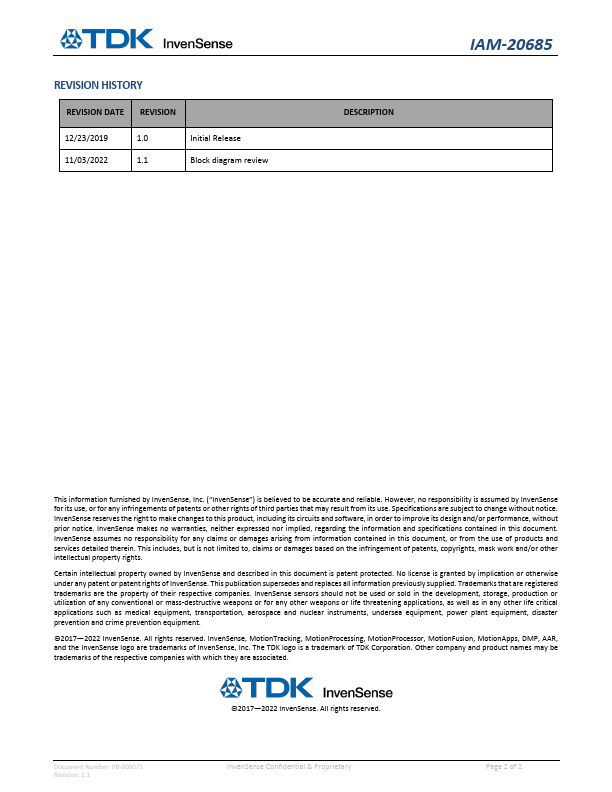

Additional preview pages of the IAM-20685 datasheet.

Product details

Description

The IAM-20685 is a 6-axis MotionTracking® device that combines a 3-axis gyroscope and a 3-axis accelerometer in a small plastic package with wettable flanks option.

Features

Six independent axes.
Gyroscope with programmable full scale range from ±41 dps to ±1966 dps.
Accelerometer with programmable full-scale range from ±2 g, to ±65 g.
Minimal cross-axis sensitivity between the accelerometer and gyroscope axes.
MEMS structure hermetically sealed and bonded at wafer level.
10,000 g shock tolerant structure.
Two temperature sensors.
10 MHz, 32-bits Serial Peripheral Interface (SPI) with CRC-base.
