IMX477-AACK-C - 12.3Mega-Pixel CMOS Image Sensor

Download the IMX477-AACK-C datasheet PDF. This datasheet also covers the IMX477-AACKC variant, as both devices belong to the same 12.3mega-pixel cmos image sensor family and are provided as variant models within a single manufacturer datasheet.

General Description

IMX477-AACK-C is a diagonal 7.857 mm (Type 1/2.3) 12.3 Mega-pixel CMOS active pixel type stacked image sensor with a square pixel array.

Key Features

  • T.
  • Back-illuminated and stacked CMOS image sensor Exmor RS.
  • Digital Overlap High Dynamic Range (DOL-HDR) mode with raw data output. N.
  • High signal to noise ratio (SNR). E.
  • Full resolution @60 frame/s (Normal), 4K2K @60 frame/s (Normal), 1080p @240 frame/s Full resolution @40 frame/s (12 bit Normal), Full resolution @30 frame/s (DOL-HDR, 2 frame) ID.
  • Output video format of RAW12/10/8, COMP8.
  • Power Save Mode F.
  • Pixel binning readout and V sub-sampling function. N.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IMX477-AACKC-Sony.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
IMX4 4 Watt DC-DC Converters Power-One
IMX4 Dual Transistor Rohm
IMX1 Dual Transistor Rohm
IMX15 15 Watt DC-DC Converters Power-One
IMX15-25 15 Watt DC-DC Converters Power-One

Other Datasheets by Sony Semiconductor Solutions

Part Number Description
IMX017CQE High-Speed High-Resolution CMOS Sensor
IMX035LQR Diagonal 6.08 mm (Type 1/3) 1.39M-Effective Pixel Color CMOS Sensor
IMX036LLR Diagonal 6.49 mm (Type 1/2.8) 3.27M-Effective Pixel CMOS Sensors
IMX036LQR Diagonal 6.49 mm (Type 1/2.8) 3.27M-Effective Pixel CMOS Sensors
IMX122LQJ-C CMOS Image Sensor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

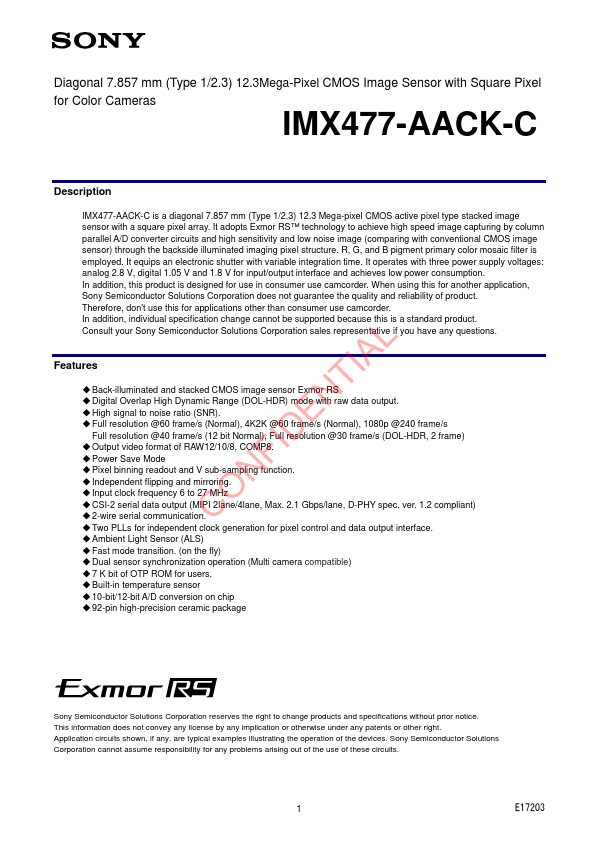

Diagonal 7.857 mm (Type 1/2.3) 12.3Mega-Pixel CMOS Image Sensor with Square Pixel for Color Cameras IMX477-AACK-C Description IMX477-AACK-C is a diagonal 7.857 mm (Type 1/2.3) 12.3 Mega-pixel CMOS active pixel type stacked image sensor with a square pixel array. It adopts Exmor RS™ technology to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor) through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter is employed. It equips an electronic shutter with variable integration time. It operates with three power supply voltages: analog 2.8 V, digital 1.05 V and 1.8 V for input/output interface and achieves low power consumption.
