SiLM5350 - Single Channel 10A Isolated Gate Driver

Product Overview

Sillumin

📥 Download Datasheet

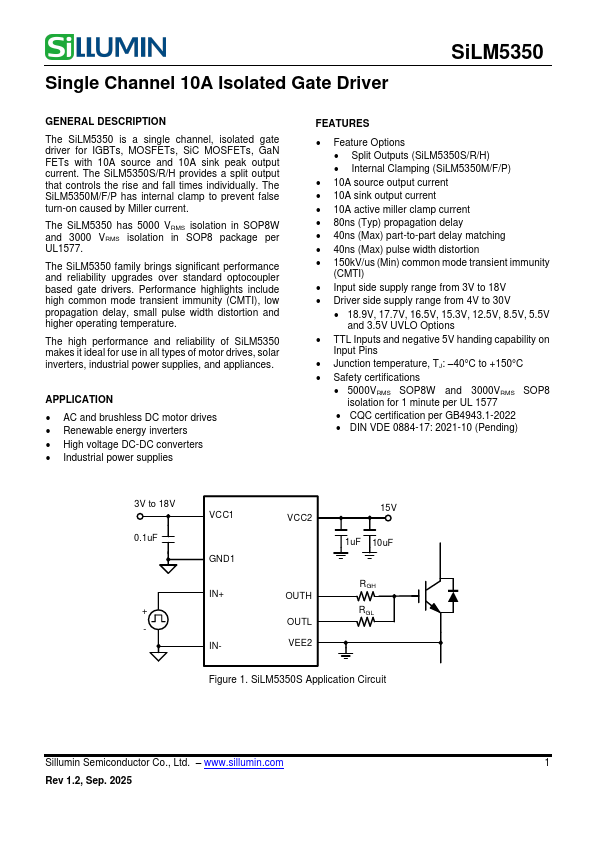

SiLM5350 Single Channel 10A Isolated Gate Driver by Sillumin - Datasheet Preview — Datasheet preview – SiLM5350

Datasheet Details

Part number	SiLM5350
Manufacturer	Sillumin
File Size	490.84 KB
Description	Single Channel 10A Isolated Gate Driver
Datasheet	SiLM5350 Datasheet
Additional preview pages of the SiLM5350 datasheet.

Product details

Description

The SiLM5350 is a single channel, isolated gate driver for IGBTs, MOSFETs, SiC MOSFETs, GaN FETs with 10A source and 10A sink peak output current.

The SiLM5350S/R/H provides a split output that controls the rise and fall times individually.

Features

Feature Options.
Split Outputs (SiLM5350S/R/H).
Internal Clamping (SiLM5350M/F/P).
10A source output current.
10A sink output current.
10A active miller clamp current.
80ns (Typ) propagation delay.
40ns (Max) part-to-part delay matching.
40ns (Max) pulse width distortion.
150kV/us (Min) common mode transient immunity (CMTI).
Input side supply range from 3V to 18V.
Driver side supply range.
