SLM7888 - 160V 3-Phase Bridge Driver

General Description

The SLM7888 is a high voltage, high speed power MOSFET and IGBT drivers with three independent high- and low-side referenced output channels for 3phase applications.

Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction.

Key Features

  • Floating channel designed for bootstrap operation.
  • Fully operational to +160 V.
  • Tolerant to negative transient voltage, dV/dt immune.
  • Gate drive supply range from 10 V to 20 V.
  • Undervoltage lockout for all channels.
  • 3.3 V, 5 V, and 15 V logic compatible.
  • Lower di/dt gate drive for better noise immunity.
  • Cross-conduction prevention logic with Typ. 270ns dead time.
  • Available in SOP20W and TSSOP20 packages SLM7888.

📥 Download Datasheet

Datasheet Details

Part number SLM7888
Manufacturer Sillumin
File Size 0.99 MB
Description 160V 3-Phase Bridge Driver
Datasheet download datasheet SLM7888 Datasheet

Other Datasheets by Sillumin

Part Number Description
SLM1909 Motor Driver
SLM2001S 200V Half Bridge Driver
SLM2003S 200V Half-Bridge Driver
SLM2004S 200V Half-Bridge Driver
SLM2005E 200V Half-Bridge Driver
SLM2005S 200V Half Bridge Driver
SLM2009 200V Half-Bridge Driver
SLM2014 200V Half-Bridge Driver
SLM2015 160V Half-Bridge Driver
SLM201A 15mA to 60mA single-channel linear constant current LED driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

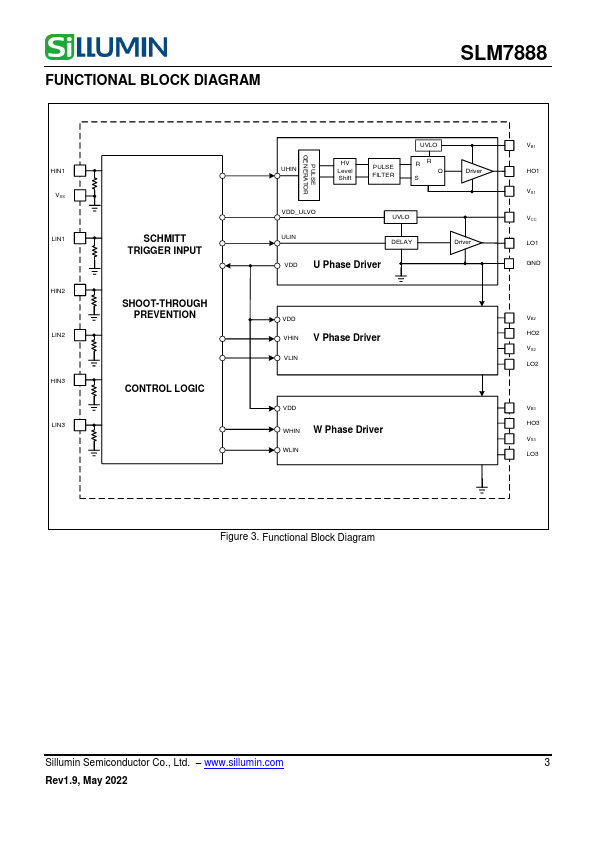

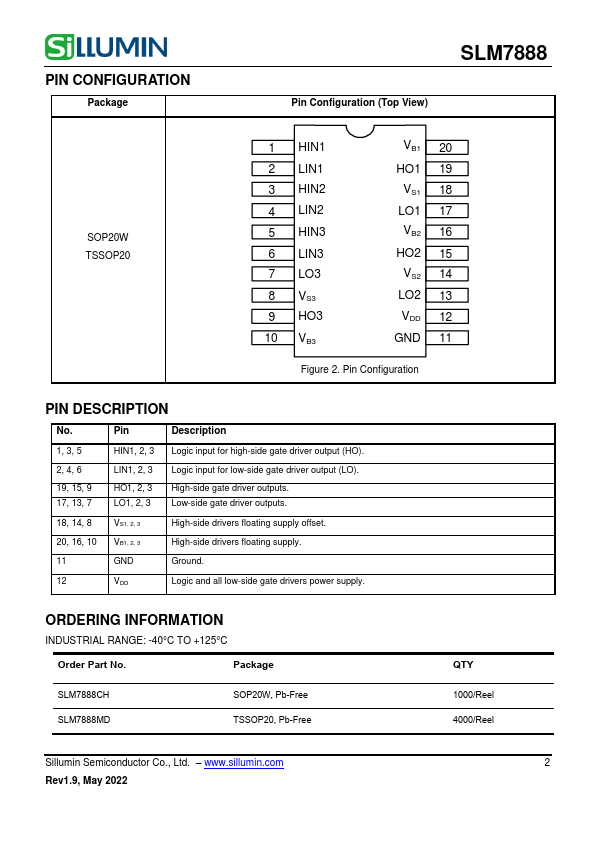

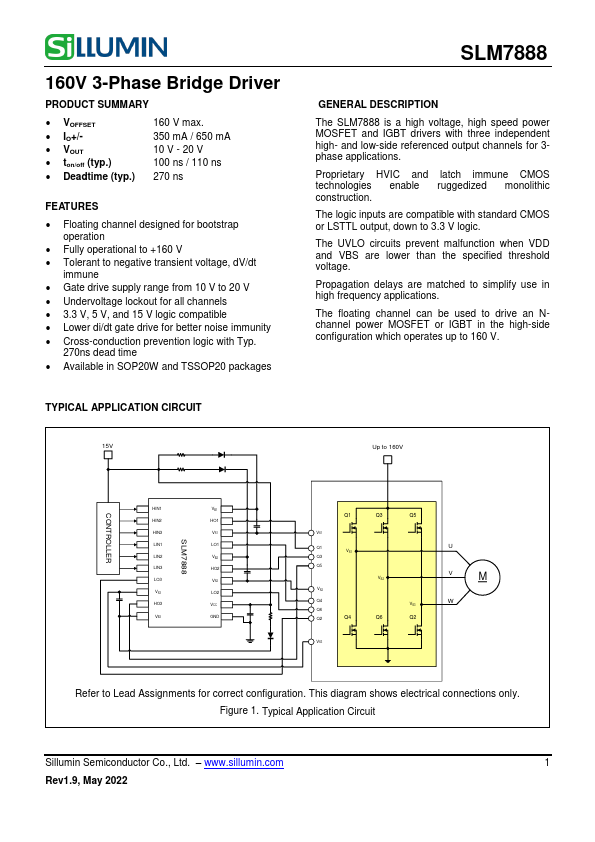

160V 3-Phase Bridge Driver PRODUCT SUMMARY  VOFFSET  IO+/ VOUT  ton/off (typ.)  Deadtime (typ.) 160 V max. 350 mA / 650 mA 10 V - 20 V 100 ns / 110 ns 270 ns FEATURES  Floating channel designed for bootstrap operation  Fully operational to +160 V  Tolerant to negative transient voltage, dV/dt immune  Gate drive supply range from 10 V to 20 V  Undervoltage lockout for all channels  3.3 V, 5 V, and 15 V logic compatible  Lower di/dt gate drive for better noise immunity  Cross-conduction prevention logic with Typ. 270ns dead time  Available in SOP20W and TSSOP20 packages SLM7888 GENERAL DESCRIPTION The SLM7888 is a high voltage, high speed power MOSFET and IGBT drivers with three independent high- and low-side referenced output channels for 3phase applications.
