SD4844P - PWM Controller

Download the SD4844P datasheet PDF. This datasheet also covers the SD4840 variant, as both devices belong to the same pwm controller family and are provided as variant models within a single manufacturer datasheet.

Description

SD4840/4841/4842/4843/4844 is a current mode PWM controller with low standby power and low start current for power switch.

In standby mode, the circuit enters burst mode to reduce the standby power dissipation.

The switch frequency is 67KHz with ±2.5 KHz jitter frequency for low EMI.

Features

  • Lower start-up current (Typ.6μA).
  • Frequency jitter for low EMI.
  • Overcurrent protection.
  • Overvoltage protection.
  • Undervoltage lockout.
  • Built-in temperature protection.
  • Built-in high voltage MOSFET www. DataShee.
  • t4AUu. ctomrestart mode.
  • Built-in soft start.
  • Burst mode operation.
  • Cycle by cycle current limit.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SD4840_SilanMicroelectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SD4844P
Manufacturer Silan Microelectronics
File Size 787.06 KB
Description PWM Controller
Datasheet download datasheet SD4844P Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SD484-52-05-301 Photodiode Arrays ETC
SD484XP67K65 CURRENT MODE PWM CONTROLLER SL
SD4863 Dual-Tone Bridge Audio Power Amplifier Chip Zhenda
SD48C BIDIRECTIONAL TVS DIODE Leiditech
SD48D40-06 DC Control Solid-State Relay Teledyne

Other Datasheets by Silan Microelectronics

Part Number Description
SD4844 PWM Controller
SD4840 PWM Controller
SD4840P PWM Controller
SD4841 PWM Controller
SD4841P PWM Controller

Full PDF Text Transcription

Click to expand full text

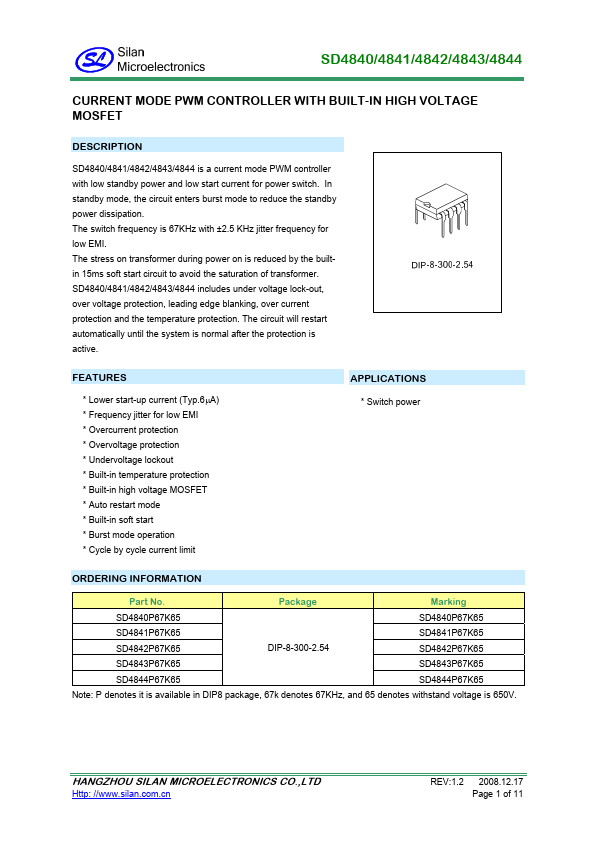

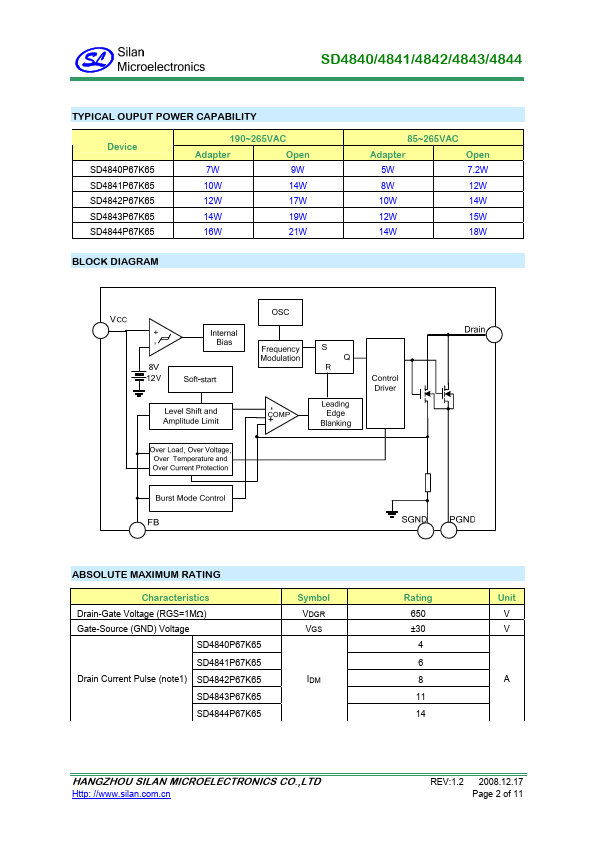

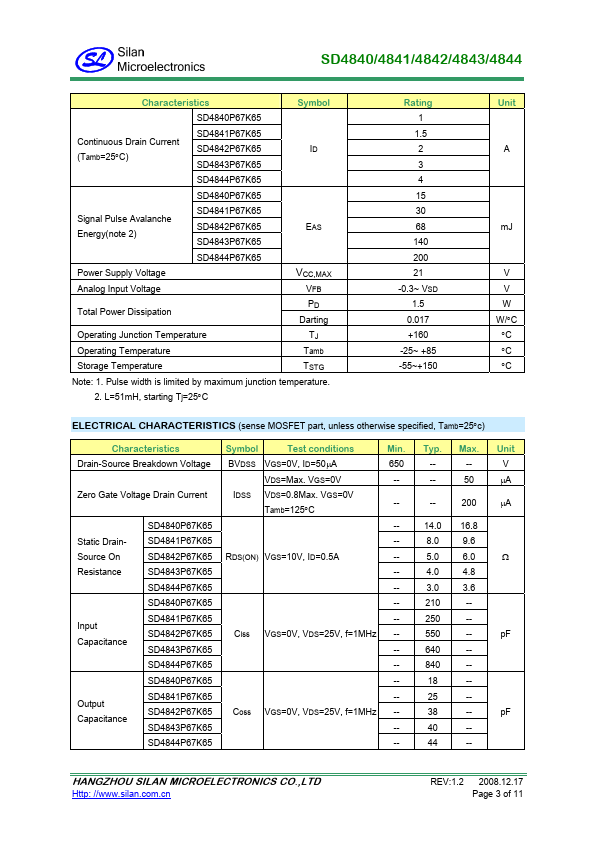

SD4840/4841/4842/4843/4844 CURRENT MODE PWM CONTROLLER WITH BUILT-IN HIGH VOLTAGE MOSFET DESCRIPTION SD4840/4841/4842/4843/4844 is a current mode PWM controller with low standby power and low start current for power switch. In standby mode, the circuit enters burst mode to reduce the standby power dissipation. The switch frequency is 67KHz with ±2.5 KHz jitter frequency for low EMI. The stress on transformer during power on is reduced by the builtin 15ms soft start circuit to avoid the saturation of transformer. SD4840/4841/4842/4843/4844 includes under voltage lock-out, over voltage protection, leading edge blanking, over current protection and the temperature protection. The circuit will restart automatically until the system is normal after the protection is active.
