BC847CW Datasheet NPN Plastic-Encapsulate Transistor

Manufacturer: Semiware

Download the BC847CW datasheet PDF. This datasheet also includes the BC846W variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

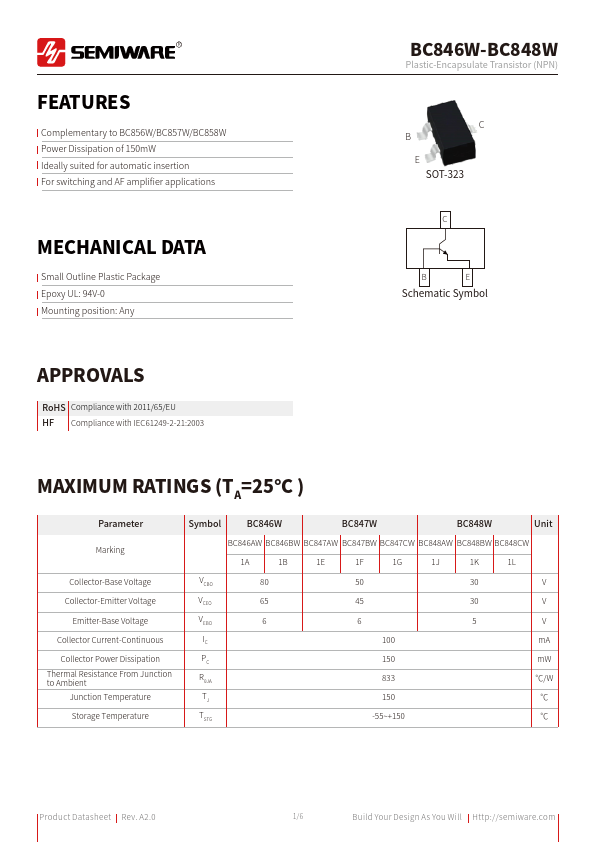

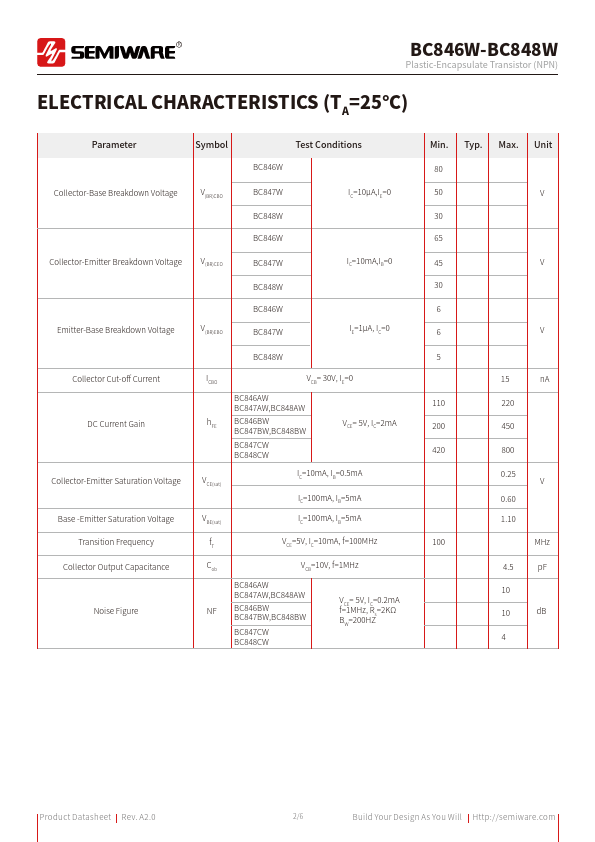

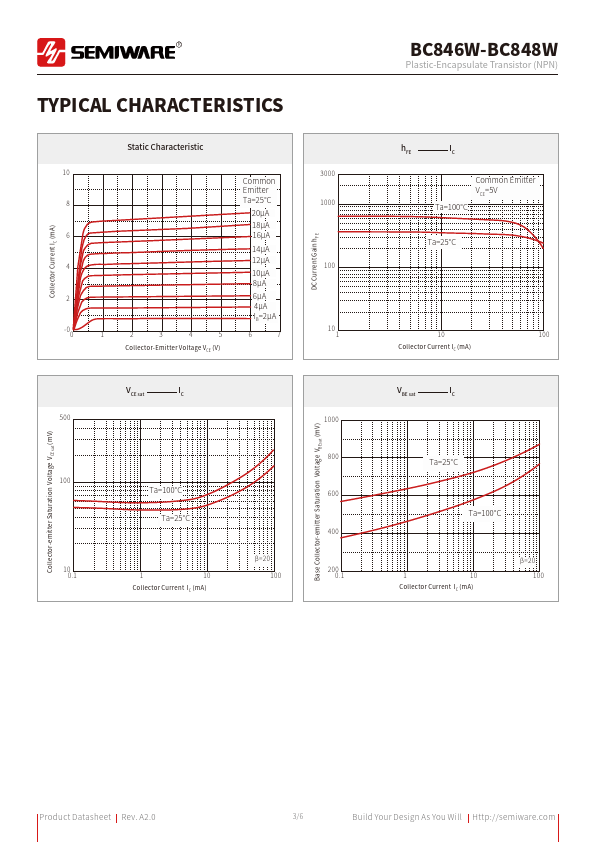

BC847CW npn plastic-encapsulate transistor by Semiware - Datasheet Preview — Note: The manufacturer provides a single datasheet file (BC846W-Semiware.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	BC847CW
Manufacturer	Semiware
File Size	124.31 KB
Description	NPN Plastic-Encapsulate Transistor
Download	BC847CW Download (PDF)

Overview

R.

Key Features

Complementary to BC856W/BC857W/BC858W Power Dissipation of 150mW Ideally suited for automatic insertion For switching and AF ampliﬁer.
