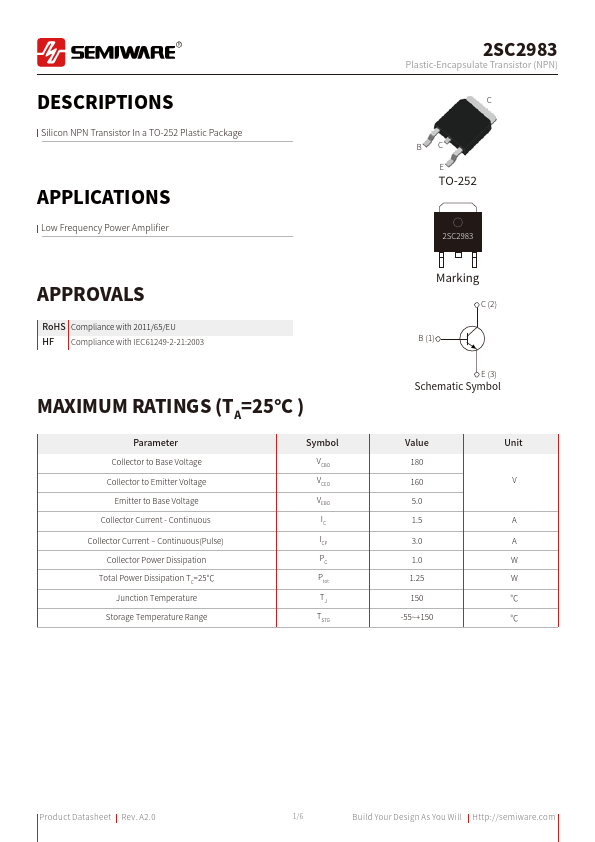

S Silicon NPN Transistor In a TO-252 Plastic Package APPLICATIONS Low Frequency Power Amplifier APPROVALS RoHS Compliance with 2011/65/EU HF Compliance with IEC61249-2-21:2003 MAXIMUM RATINGS (TA=25°C ) Parameter Collector to Base Voltage Collector to Emitter Voltage Emitter to Base Voltage Collector Current - Continuous Collector Current ‒ Continuous(Pulse) Collector Power Dissipation Total Power Dissipation TC=25℃ Junction Temperature Storage Temperature Range Symbol VCBO VCEO VEBO IC ICP PC Ptot TJ TSTG 2SC2983 Plastic-Encapsulate Transistor (NPN) C BC E TO-252 2SC2983 Marking C (2) B (1) E (3) Schematic Symbol Value 180 160 5.0 1.5 3.0 1.0 1.25 150 -55~+150 Unit V A A W W ℃ ℃ Product Datasheet Rev.

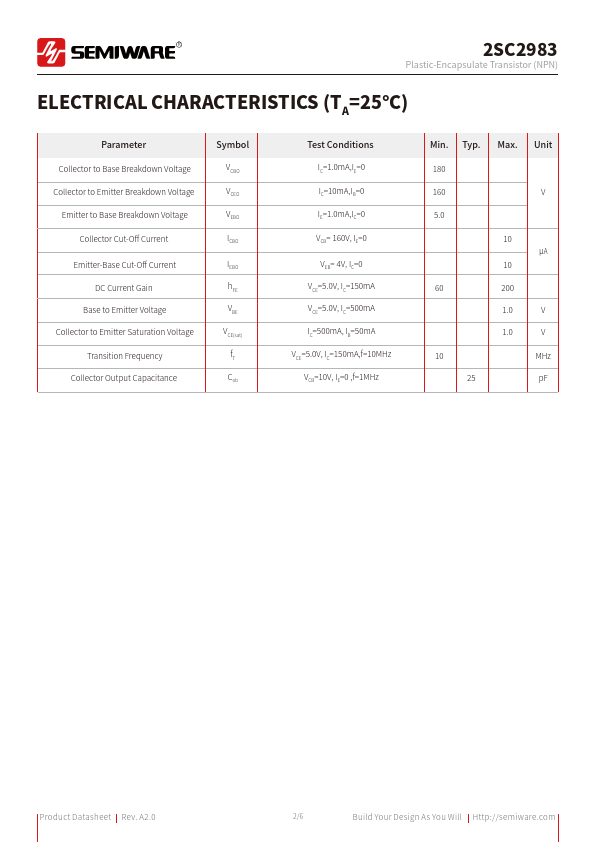

A2.0 1/6 Build Your Design As You Will Http://semiware.com R 2SC2983 Plastic-Encapsulate Transistor (NPN) ELECTRICAL CHARACTERISTICS (TA=25°C) Parameter Collector to Base Breakdown Voltage Collector to Emitter Breakdown Voltage Emitter to Base Breakdown Voltage Collector Cut-Off Current Emitter-Base Cut-Off Current DC Current Gain Base to Emitter Voltage Collector to Emitter Saturation Voltage Transition Frequency Collector Output Capacitance Symbol VCBO VCEO VEBO ICBO IEBO hFE VBE VCE(sat) fT Cob Test Conditions IC=1.0mA,IE=0 IC=10mA,IB=0 IE=1.0mA,IC=0 VCB= 160V, IE=0 VEB= 4V, IC=0 VCE=5.0V, IC=150mA VCE=5.0V, IC=500mA IC=500mA, IB=50mA VCE=5.0V, IC=150mA,f=10MHz VCB=10V, IE=0 ,f=1MHz Min.
Typ.
R.
