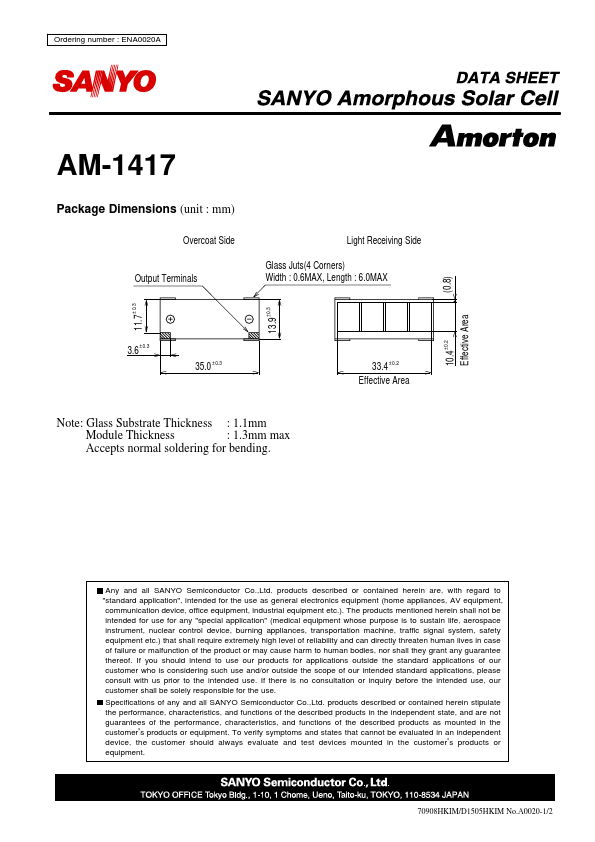

AM-1417
Ordering number : ENA0020A
Package Dimensions (unit : mm)
Overcoat Side Output Terminals
Light Receiving Side
Glass Juts(4 Corners) Width : 0.6MAX, Length : 6.0MAX
11.7 ±0.3 13.9±0.3
3.6±0.3
35.0 ±0.3
Note: Glass Substrate Thickness : 1.1mm
Module Thickness
: 1.3mm max
Accepts normal soldering for bending.
33.4 ±0.2 Effective Area
(0.8)
Effective Area
10.4±0.2
