2SD1627 - NPN Epitaxial Planar Silicon Transistor

Key Features

  • High DC current gain (hFE≥4000).
  • Wide ASO.
  • Very small size making it easy to provide high- density, small-sized hybrid ICs. Package Dimensions unit:mm 2038A [2SD1627] 4.5 1.6 2.5 1.0 0.4 0.5 3 2 1 1.5 3.0 0.75 Specifications 4.25max 1.5 0.4 1 : Base 2 : Collector 3 : Emitter SANYO : PCP (Bottom view) Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SD1620 NPN Epitaxial Planar Silicon Transistor Sanyo Semicon Device
2SD1620 NPN Epitaxial Planar Silicon Transistor Kexin
2SD1620 Bipolar Transistor ON Semiconductor
2SD1621 PNP/NPN Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SD1621 NPN Epitaxial Planar Silicon Transistor Kexin

Other Datasheets by SANYO (now Panasonic)

Part Number Description
2SD1047C NPN Triple Diffused Planar Silicon Transistor
2SD1238 PNP / NPN Epitaxial Planar Silicon Transistors
2SD1403 NPN Triple Diffused Planar Silicon Transistor
2SD1710 NPN Triple Diffused Planar Silicon Transistor
2SD348 Discontinued Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

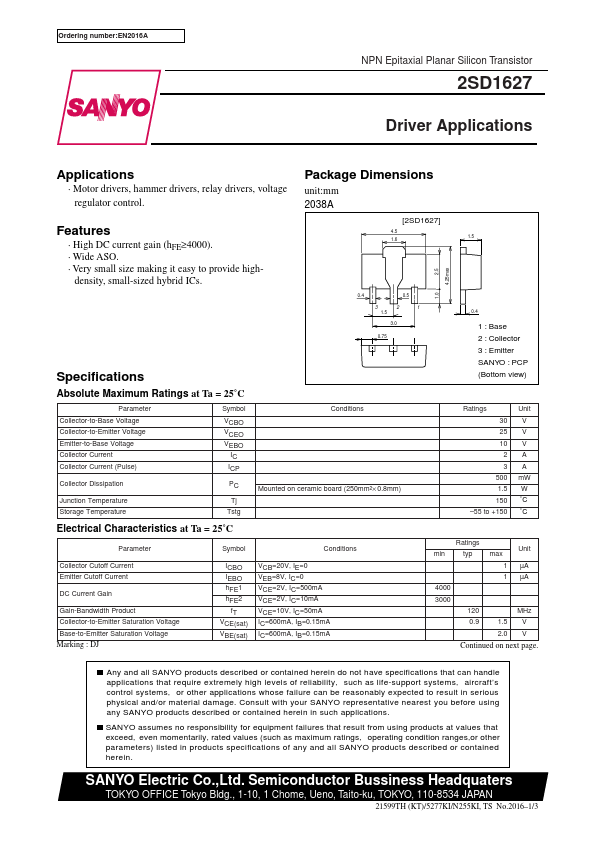

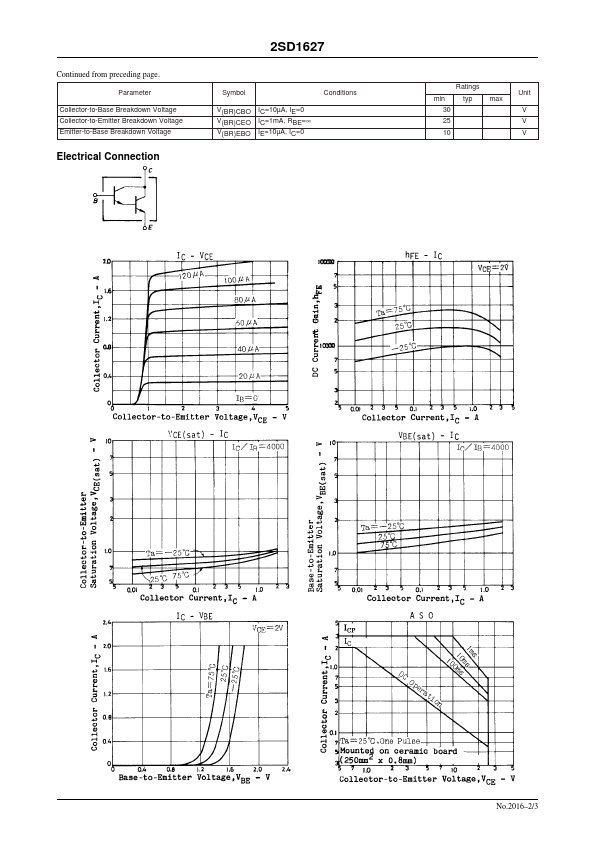

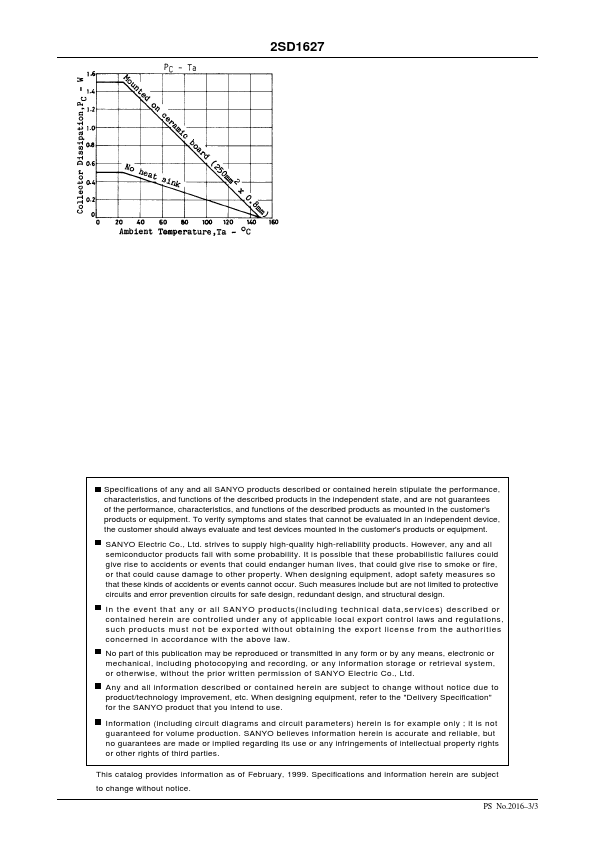

Ordering number:EN2016A NPN Epitaxial Planar Silicon Transistor 2SD1627 Driver Applications Applications · Motor drivers, hammer drivers, relay drivers, voltage regulator control. Features · High DC current gain (hFE≥4000). · Wide ASO. · Very small size making it easy to provide high- density, small-sized hybrid ICs. Package Dimensions unit:mm 2038A [2SD1627] 4.5 1.6 2.5 1.0 0.4 0.5 3 2 1 1.5 3.0 0.75 Specifications 4.25max 1.5 0.
