SBE807 - Schottky Barrier Diode 30V 1.0A Rectifier

Datasheet Summary

Features

  • Low switching noise. Low reverse current (VR=16V, IR max=15μA). Specifications Absolute Maximum Ratings at Ta=25°C Parameter Repetitive Peak Reverse Voltage Nonrepetitive Peak Reverse Surge Voltage Average Output Current Surge Forward Current Junction Temperature Storage Temperature Symbol VRRM VRSM IO IFSM Tj Tstg 50Hz sine wave, 1 cycle Conditions Ratings 30 35 1.0 10 --55 to +125 --55 to +125 Unit V V A A °C °C Electrical Characteristics at Ta=25°C Parameter Reverse Vol.

📥 Download Datasheet

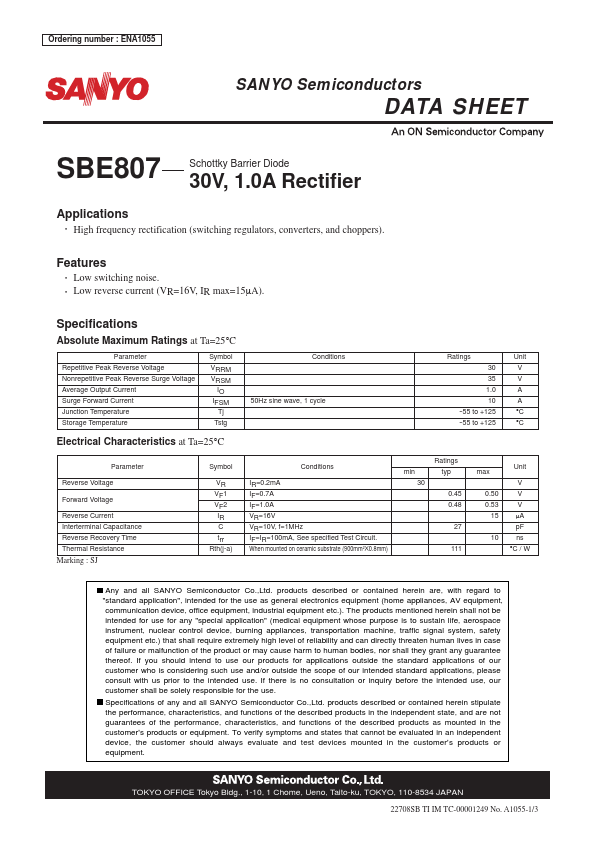

Datasheet preview – SBE807

Datasheet Details

Part number SBE807
Manufacturer Sanyo Semicon Device
File Size 71.60 KB
Description Schottky Barrier Diode 30V 1.0A Rectifier
Datasheet download datasheet SBE807 Datasheet

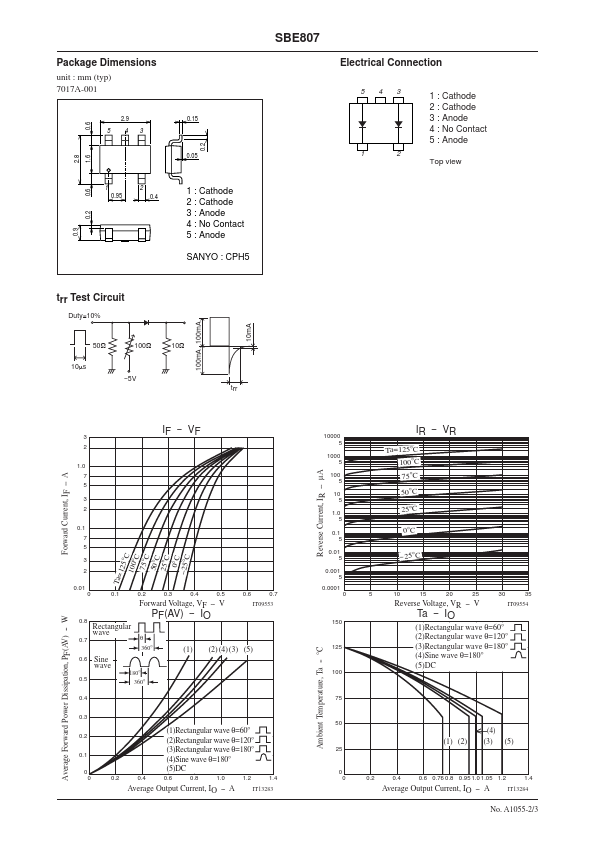

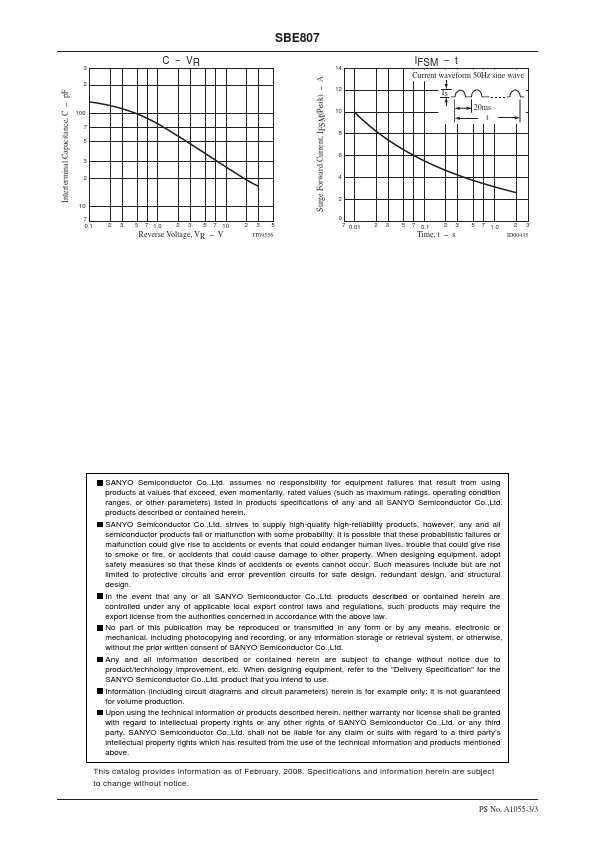

Additional preview pages of the SBE807 datasheet.

📁 Similar Datasheet

  • SBE807 - Schottky Barrier Diode (ON Semiconductor)
  • SBE808 - Schottky Barrier Diode (ON Semiconductor)
  • SBE809 - 30V 70mA Rectifier (Sanyo Semiconductor)
  • SBE812 - Schottky Barrier Diode (ON Semiconductor)
  • SBE813 - Schottky Barrier Diode (ON Semiconductor)
  • SBE818 - Schottky Barrier Diode (ON Semiconductor)
  • SBE002 - Schottky Barrier Diode (ON Semiconductor)
  • SBESD15C-C - Bi-Direction ESD Protection Diode (SeCoS)
  • SBESD24C-C - Bi-Direction ESD Protection Diode (SeCoS)
  • SBESD5301N - Ultra Low Capacitance ESD Protection (SeCoS Halbleitertechnologie)
Other Datasheets by Sanyo Semicon Device

Full PDF Text Transcription

Click to expand full text
Ordering number : ENA1055 SBE807 www.DataSheet4U.com SANYO Semiconductors DATA SHEET SBE807 Applications • Schottky Barrier Diode 30V, 1.0A Rectifier High frequency rectification (switching regulators, converters, and choppers). Features • • Low switching noise. Low reverse current (VR=16V, IR max=15μA). Specifications Absolute Maximum Ratings at Ta=25°C Parameter Repetitive Peak Reverse Voltage Nonrepetitive Peak Reverse Surge Voltage Average Output Current Surge Forward Current Junction Temperature Storage Temperature Symbol VRRM VRSM IO IFSM Tj Tstg 50Hz sine wave, 1 cycle Conditions Ratings 30 35 1.
