SMG16C60 - THYRISTOR

Datasheet Summary

Features

  • IT(AV)=16A High Surge Current Low Voltage Drop Lead-Free Package Identifying Code S16C6 Unit mm Maximum Ratings Symbol VRRM VRSM VDRM IT IT AV RMS Tj=25 unless otherwise specified Item Repetitive Peak Reverse Voltage Non-Repetitive Peak Reverse Voltage Repetitive Peak Off-State Voltage Average On-State Current R. M. S. On-State Current Surge On-State Current I2t Peak Gate Power Dissipation Average Gate Power Dissipation Peak Gate Current Peak Gate Voltage Forward Peak Gate Voltage Reverse Ope.

📥 Download Datasheet

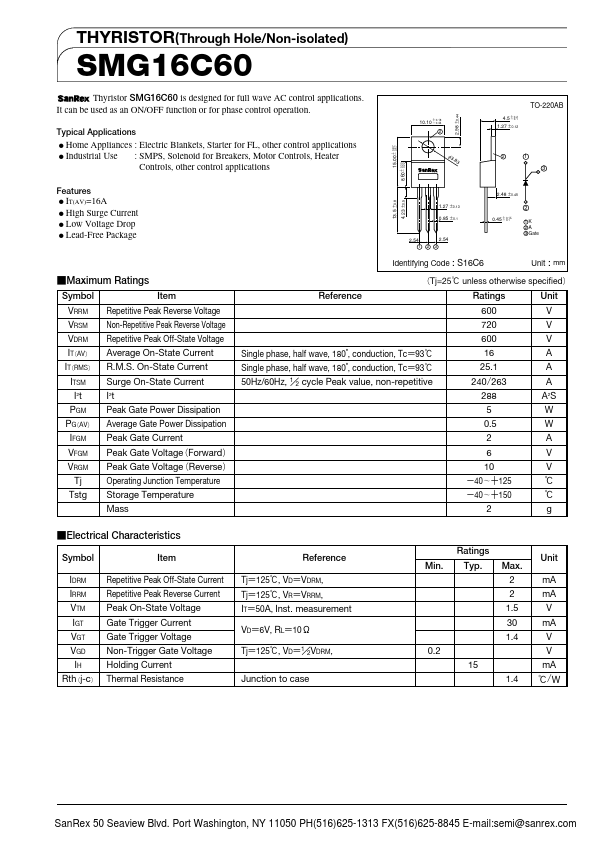

Datasheet preview – SMG16C60

Datasheet Details

Part number SMG16C60
Manufacturer SanRex Corporation
File Size 490.79 KB
Description THYRISTOR
Datasheet download datasheet SMG16C60 Datasheet

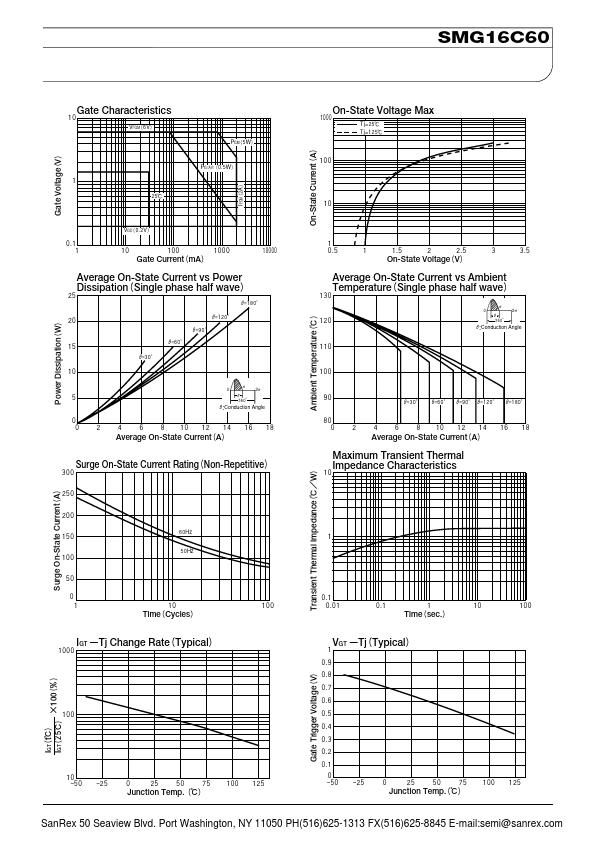

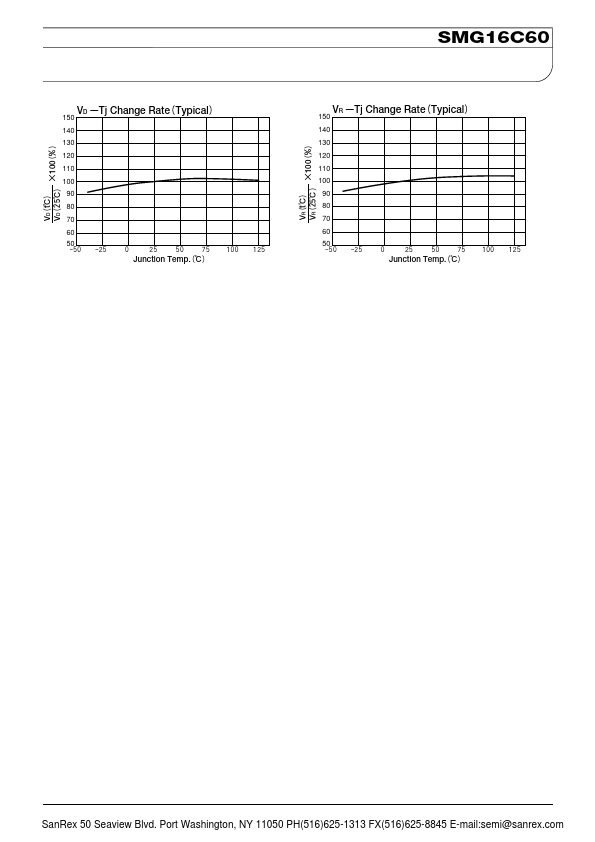

Additional preview pages of the SMG16C60 datasheet.

📁 Similar Datasheet

Other Datasheets by SanRex Corporation

Full PDF Text Transcription

Click to expand full text
THYRISTOR( Through Hole/Non-isolated) SMG16C60 Thyristor SMG16C60 is designed for full wave AC control applications. It can be used as an ON/OFF function or for phase control operation. Typical Applications Home Appliances : Electric Blankets, Starter for FL, other control applications Industrial Use : SMPS, Solenoid for Breakers, Motor Controls, Heater Controls, other control applications Features IT(AV)=16A High Surge Current Low Voltage Drop Lead-Free Package Identifying Code S16C6 Unit mm Maximum Ratings Symbol VRRM VRSM VDRM IT IT AV RMS Tj=25 unless otherwise specified Item Repetitive Peak Reverse Voltage Non-Repetitive Peak Reverse Voltage Repetitive Peak Off-State Voltage Average On-State Current R.M.S.
