LTA320AP33-001 - TFT LCD

Product Overview

Samsung

Datasheet Details

Part number	LTA320AP33-001
Manufacturer	Samsung
File Size	0.96 MB
Description	TFT LCD
Datasheet	LTA320AP33-001 Datasheet

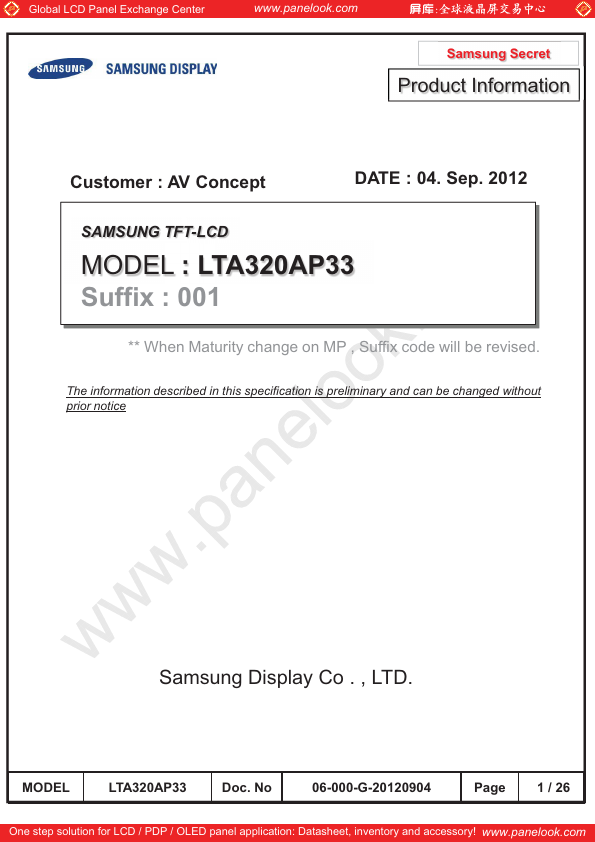

Additional preview pages of the LTA320AP33-001 datasheet.

Product details

Description

------------------------------------------------------------------------------------- (4) General information ------------------------------------------------------------------------------------ (4) 1. Absolute maximum ratings ----------------------------------------------------------------------- (5) 2. Optical characteristics ------------------------------------------------------------------------------- (6) 3. Electrical characteristics --------------------------------------------------------

Features

RoHS compliance (Pb-free).
High contrast ratio & aperture ratio with wide color gamut.
SPVA(Super Patterned Vertical Align) mode.
Wide viewing angle (typ.178¶).
High speed response.
HD resolution (16:9).
Low Power consumption.
Direct Type LED (Light Emitted Diode) BLU.
DE (Data Enable) mode.
1ch LVDS (Low Voltage Differential Signaling) interface (1pixel/clock) General Information Items Specification Module Size Weight 724.5 (HTyp) x 424.3.
