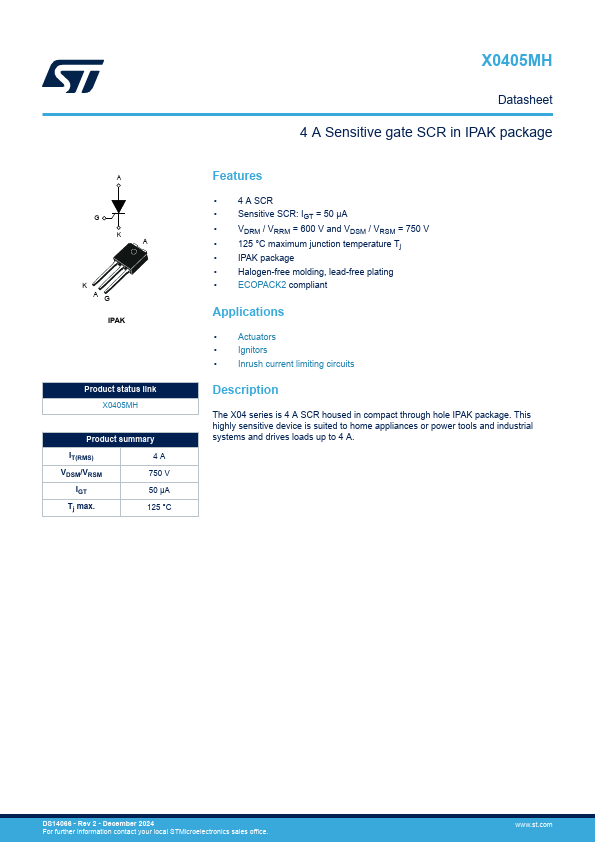

X0405MH Datasheet Text
A2
A1 A2 G IPAK
Product status link X0405MH
Product summary
IT(RMS)
4A
VDSM/VRSM
750 V
IGT
50 µA
Tj max.
125 °C
Datasheet
4 A Sensitive gate SCR in IPAK package
Features
- 4 A SCR
- Sensitive SCR: IGT = 50 µA
- VDRM / VRRM = 600 V and VDSM / VRSM = 750 V
- 125 °C maximum junction temperature Tj
- IPAK package
- Halogen-free molding, lead-free plating
- ECOPACK2 pliant
Applications
- Actuators
- Ignitors
- Inrush current limiting circuits
Description
The X04 series is 4 A SCR housed in pact through hole IPAK package. This highly sensitive device is suited to home appliances or power tools and industrial systems and drives loads up to 4 A.
DS14066
- Rev 1...
