Datasheet Details

Part number	TSV633A
Manufacturer	STMicroelectronics
File Size	723.40 KB
Description	Operational Amplifiers
Datasheet	TSV633A Datasheet
Note	This datasheet PDF includes multiple part numbers: TSV633A, TSV632A. Please refer to the document for exact specifications by model.

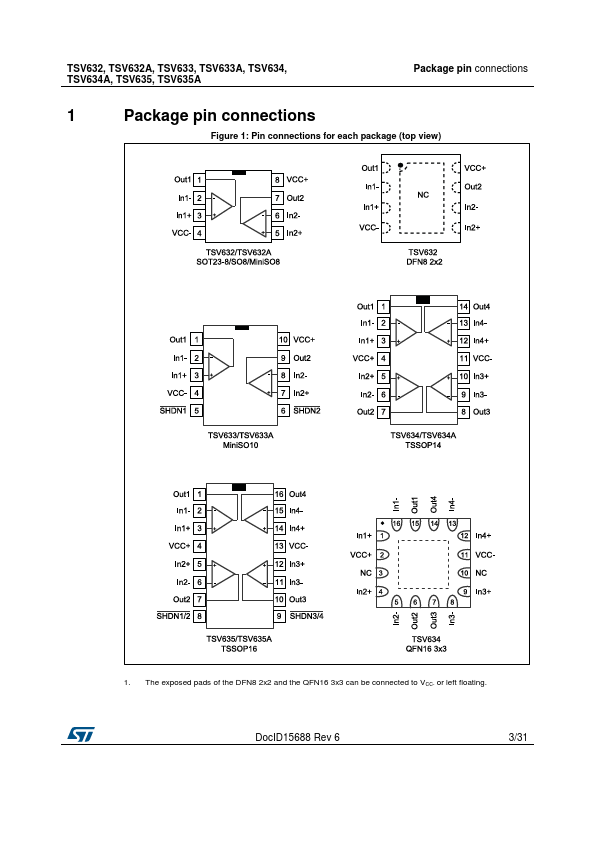

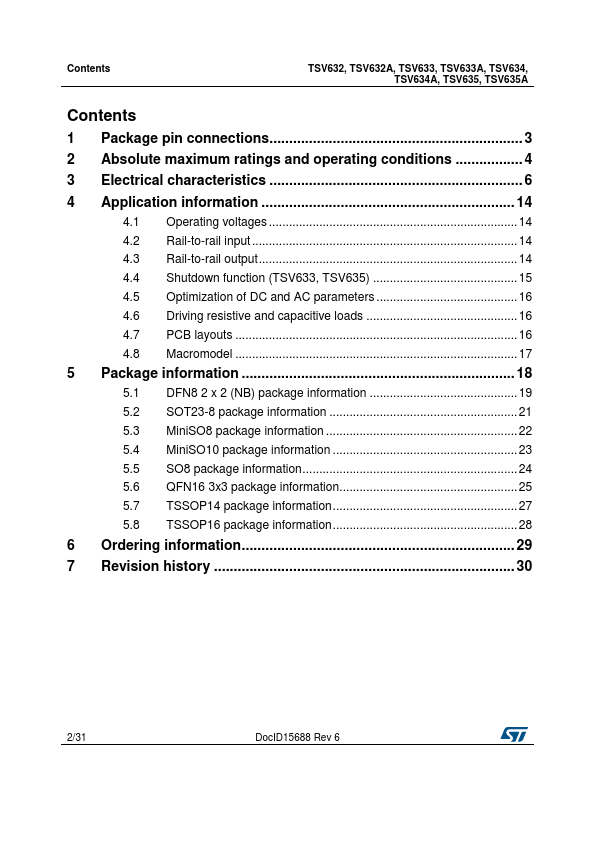

Additional preview pages of the TSV633A datasheet.

Product details

Description

The TSV63x and TSV63xA series of dual and quad operational amplifiers offers low voltage operation and rail-to-rail input and output.

Features

Rail-to-rail input and output.
Low power consumption: 60 µA typ at 5 V.
Low supply voltage: 1.5 V - 5.5 V.
Gain bandwidth product: 880 kHz typ.
Unity gain stable on 100 pF capacitor.
Low power shutdown mode: 5 nA typ.
Low offset voltage: 800 µV max (A version).
Low input bias current: 1 pA typ.
EMI hardened op amps.
Automotive qualification SOT23-8 SO-8 DFN8 2x2 MiniSO-8/MiniSO-10 Related products.
See the TSV52x series for higher meri.
