ST3DV520A - High Bandwidth Switch

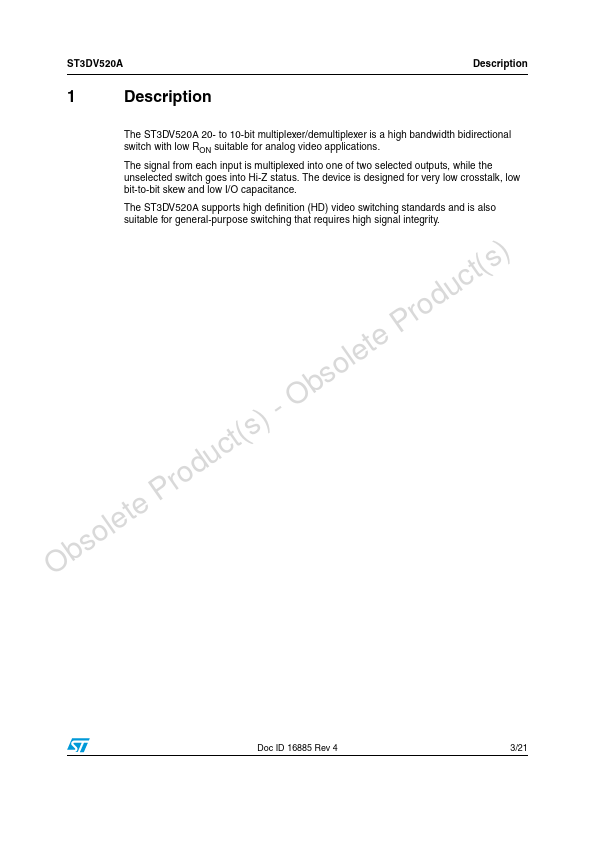

General Description

.

.

.

4 3 Maximum ratings

.

.

.

Key Features

  • Low RON: 4.0 Ω typical.
  • VCC operating range: 3.0 to 3.6 V.
  • Enhanced ESD protection: > 8 kV (contact) and )15 kV (HBM) t(s.
  • Channel on capacitance: 9.5 pF typical uc.
  • Switching time speed: 9 ns d.
  • Near to zero propagation delay: 250 ps ro.
  • Very low crosstalk: -45 dB at 250 MHz P.
  • Bit-to-bit skew: 200 ps lete.
  • > 600 MHz -3 dB typical bandwidth (or data frequency) Obsolete Product(s) - Obso.
  • Package: QFN56 QFN56 Table 1. Device summary Order code Pa.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ST3DV520 Datasheet High bandwidth analog switch ST Microelectronics
ST3000GXH35A Silicon N-Channel IEGT Toshiba
ST300C PHASE CONTROL THYRISTORS International Rectifier
ST300S PHASE CONTROL THYRISTORS International Rectifier
ST301 Temperature Controller User Handbook Stafford

Other Datasheets by STMicroelectronics

Part Number Description
ST3222B RS-232 drivers/receivers
ST3222C RS-232 drivers/receivers
ST3222EB RS-232 drivers/receivers
ST3222EC RS-232 drivers/receivers
ST3232B RS-232 drivers and receivers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
ST3DV520A High bandwidth switch with 20- to 10-bit MUX/DEMUX Datasheet - production data Features ■ Low RON: 4.0 Ω typical ■ VCC operating range: 3.0 to 3.6 V ■ Enhanced ESD protection: > 8 kV (contact) and )15 kV (HBM) t(s■ Channel on capacitance: 9.5 pF typical uc■ Switching time speed: 9 ns d■ Near to zero propagation delay: 250 ps ro■ Very low crosstalk: -45 dB at 250 MHz P■ Bit-to-bit skew: 200 ps lete■ > 600 MHz -3 dB typical bandwidth (or data frequency) Obsolete Product(s) - Obso■ Package: QFN56 QFN56 Table 1. Device summary Order code Package ST3DV520AQTR QFN56 Packing Tape and reel January 2013 This is information on a product in full production. Doc ID 16885 Rev 4 1/21 www.st.com 21 Contents Contents ST3DV520A 1 Description . . . . . . . . . . . . . . . . . .
