L7806A Datasheet | STMicroelectronics

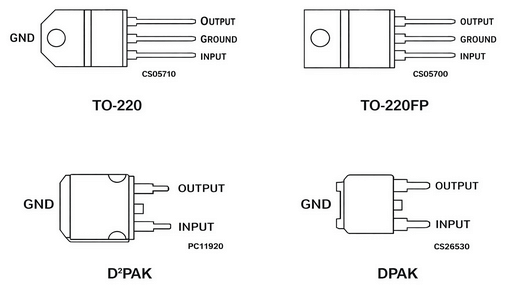

Features - Output current up to 1.5 A - Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V - Thermal overload protection - Short circuit protection - Output transition SOA protection - 2 % output voltage tolerance (A version) - Guaranteed in extended temperature range (A version) Description The L78 series of three-terminal positive regulators is available in TO-220, TO-220FP, D²PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external ponents to obtain adjustable voltage and currents. DS0422 - Rev 38 -...
