MS9714 - High-speed Low Power Dissipation DAC

Product Overview

Ruimeng

📥 Download Datasheet

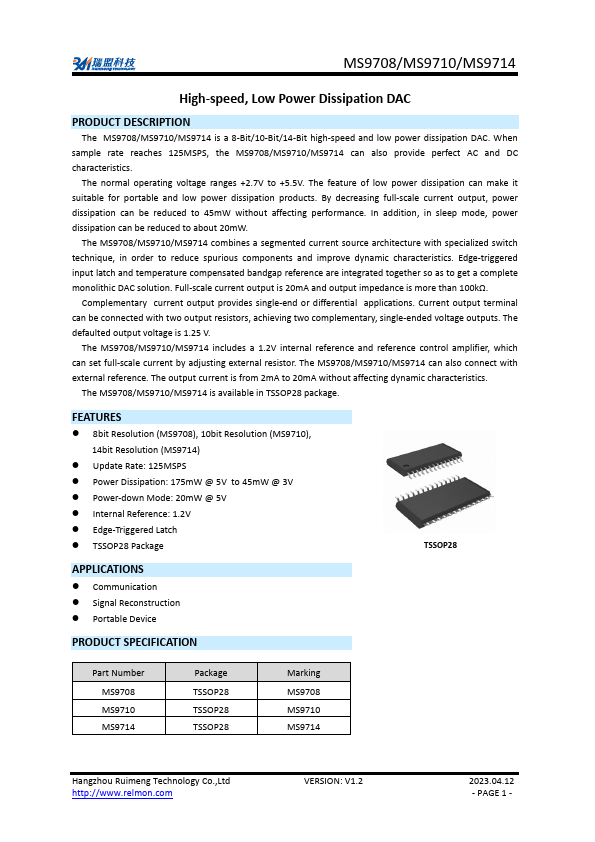

MS9714 High-speed Low Power Dissipation DAC by Ruimeng - Datasheet Preview — Datasheet preview – MS9714

Datasheet Details

Part number	MS9714
Manufacturer	Ruimeng
File Size	821.15 KB
Description	High-speed Low Power Dissipation DAC
Datasheet	MS9714 Datasheet
Note	This datasheet PDF includes multiple part numbers: MS9714, MS9708. Please refer to the document for exact specifications by model.
Additional preview pages of the MS9714 datasheet.

Product details

Description

The MS9708/MS9710/MS9714 is a 8-Bit/10-Bit/14-Bit high-speed and low power dissipation DAC.

Features

8bit Resolution (MS9708), 10bit Resolution (MS9710), 14bit Resolution (MS9714).
Update Rate: 125MSPS.
Power Dissipation: 175mW @ 5V to 45mW @ 3V.
Power-down Mode: 20mW @ 5V.
Internal Reference: 1.2V.
Edge-Triggered Latch.
TSSOP28 Package.
