MS5197T - Low Noise Low Power Dissipation ADC

Download the MS5197T datasheet PDF. This datasheet also covers the MS5196T variant, as both devices belong to the same low noise low power dissipation adc family and are provided as variant models within a single manufacturer datasheet.

General Description

The MS5196T/MS5197T is a 16bit/24bit ADC featured by low power dissipation, low noise, differential inputs and it is suitable for high­precision measurement application.

Key Features

  • RMS Noise: 65nV.
  • Power Dissipation: 320μA (Typ).
  • Integrated Low Noise, Gain Instrumentation Amplifier.
  • Integrated Temperature Sensor.
  • Integrated Internal Clock Oscillator.
  • Update Rate: 4.17Hz to 123Hz.
  • Integrated 50Hz/60Hz Rejection Filter.
  • Power Supply: 2.7V to 5.25V.
  • Operating Temperature Range: ­40°C to 120°C.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MS5196T-Ruimeng.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MS5197T
Manufacturer Ruimeng
File Size 589.31 KB
Description Low Noise Low Power Dissipation ADC
Datasheet download datasheet MS5197T Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MS51957 Screw Military Standard
MS51957D Corrosion Resistant Steel Military Specification
MS51958 Screw Military Standard
MS51959 MACHINE SCREW Aircraft
MS51959 SCREW ETC

Other Datasheets by Ruimeng

Part Number Description
MS5192T 16-/24-Bit ADC
MS5193T 16-/24-Bit ADC
MS5194T Low Noise Low Power Dissipation ADC
MS5195T Low Noise Low Power Dissipation ADC
MS5196T Low Noise Low Power Dissipation ADC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

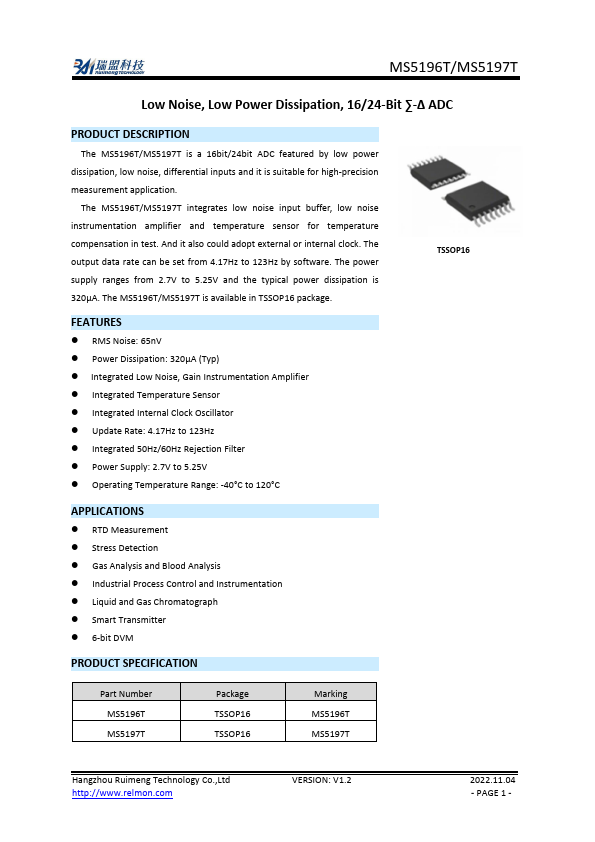

MS5196T/MS5197T Low Noise, Low Power Dissipation, 16/24-Bit ∑-Δ ADC PRODUCT DESCRIPTION The MS5196T/MS5197T is a 16bit/24bit ADC featured by low power dissipation, low noise, differential inputs and it is suitable for high­precision measurement application. The MS5196T/MS5197T integrates low noise input buffer, low noise instrumentation amplifier and temperature sensor for temperature compensation in test. And it also could adopt external or internal clock. The output data rate can be set from 4.17Hz to 123Hz by software. The power supply ranges from 2.7V to 5.25V and the typical power dissipation is 320μA. The MS5196T/MS5197T is available in TSSOP16 package.
